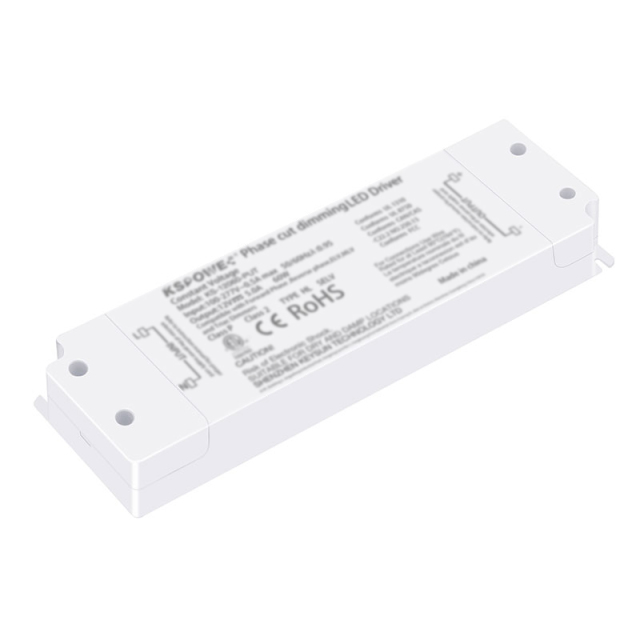

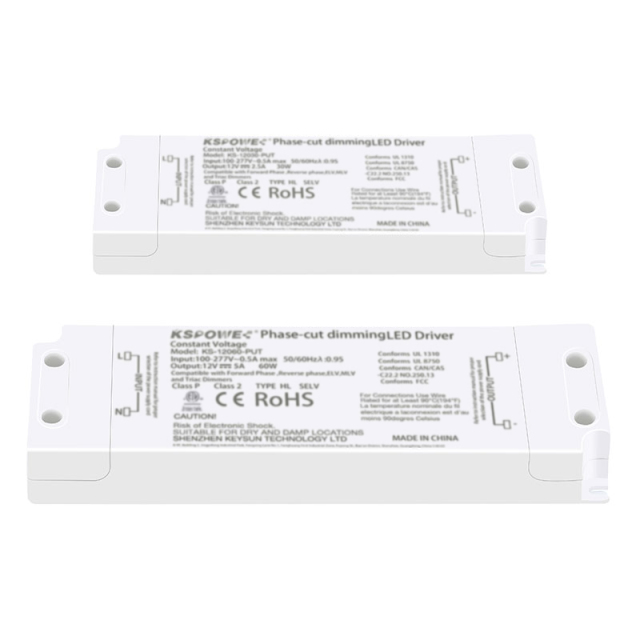

The ZhenHuan PUT series triac dimmable led driver 40 Watt is one constant voltage and triac dimmable solution, rectangular plastic case design, single channel, accept AC input voltage range from 100-120V & 200-240V, and output voltage options: 12V, 24V. The led power transformer is one Class 2 power supply, great ideal for led strip lights and other low voltage devices such as led strip light, video gear cabinets light, Mr16, Mr11, G4 bulb and more. The class 2 led driver is small volume, with certification ETL/cETL, CE, ROHS. The led light drivers is built-in intelligent chip-set, anti-thunder,with automatic thermal & overload cut-off, short circuit protection function.
Features
Note: Accept LOGO/color/package/case customization, OEM and ODM service
Specification:
| Input Voltage | 100-120Volts AC 60Hz & 200-240Volts AC 50Hz | ||||
| NO. | KS-40W12-PUT | KS-40W12-PUT | |||
| Output Voltage | 12VDC | 24VDC | |||
| Rated Current(full load) | 3330mA | 1670mA | |||
| Rated Power | 40W | 40W | |||
| Working Temperature | -40℃ to +50℃ | ||||
| Certification | ETL cETL CE RoHS ... | ||||
| Dimension(L*W*H) |
153*50*20mm / 6.02*1.97*0.78in
|
||||

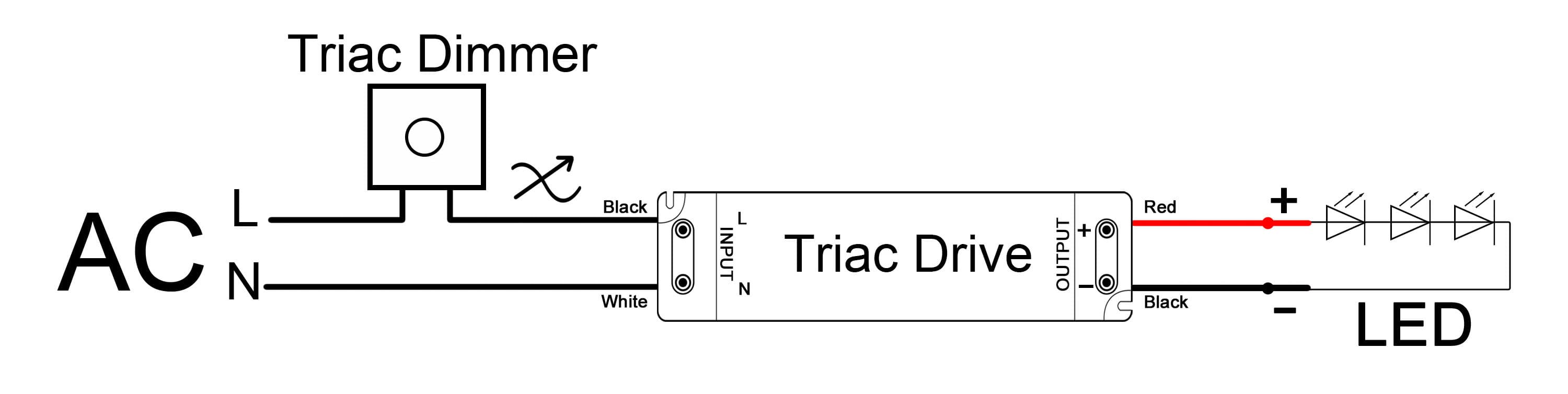

Dimming Connect Wiring Diagram:

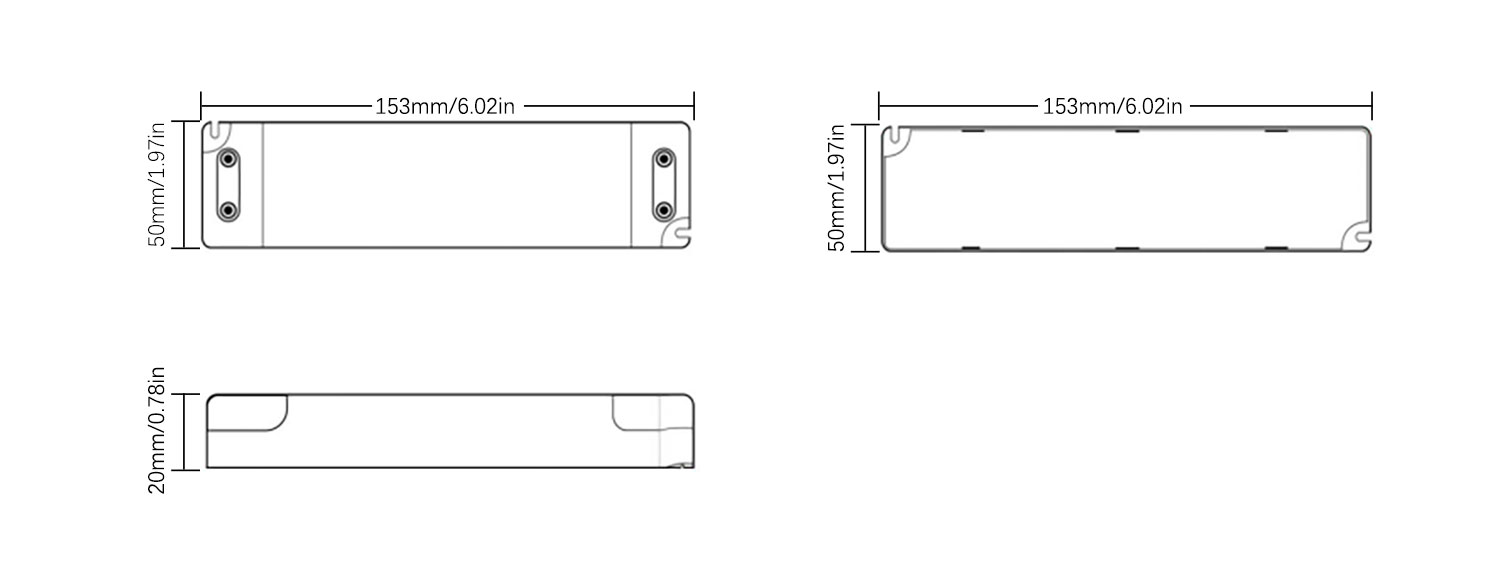

Dimension(mm):
Application:
This LED power supply driver is a high PF and reliable power source for LED strips and any other devices with power less than 60W and running voltage at 12V/24V.
The dimmable led driver is enough power to run one of LED strip, cabinet light etc. DC 12/24-volt single white color constant voltage and compatible with led strips.
