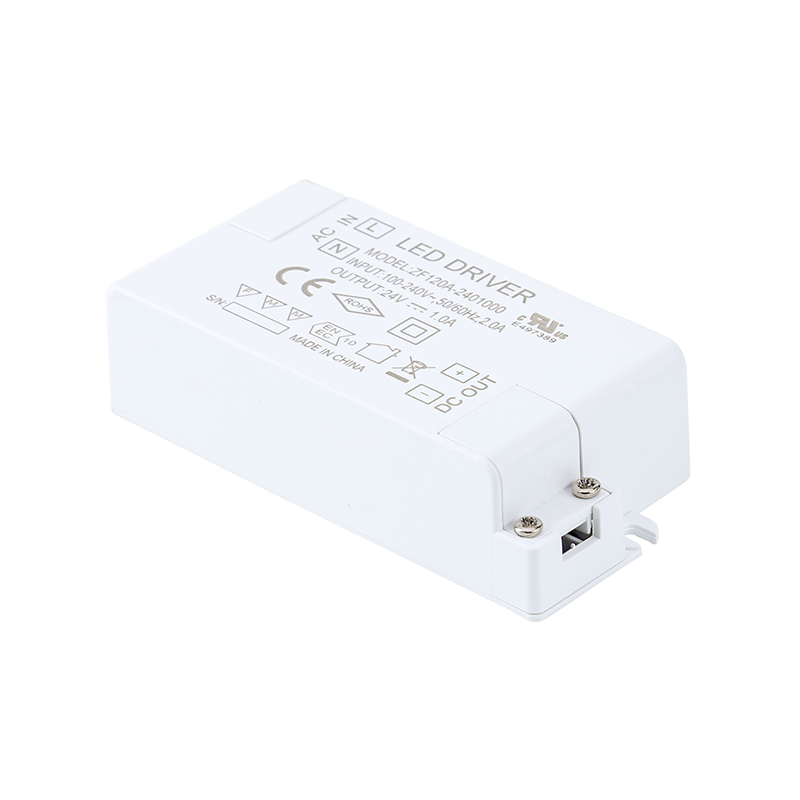

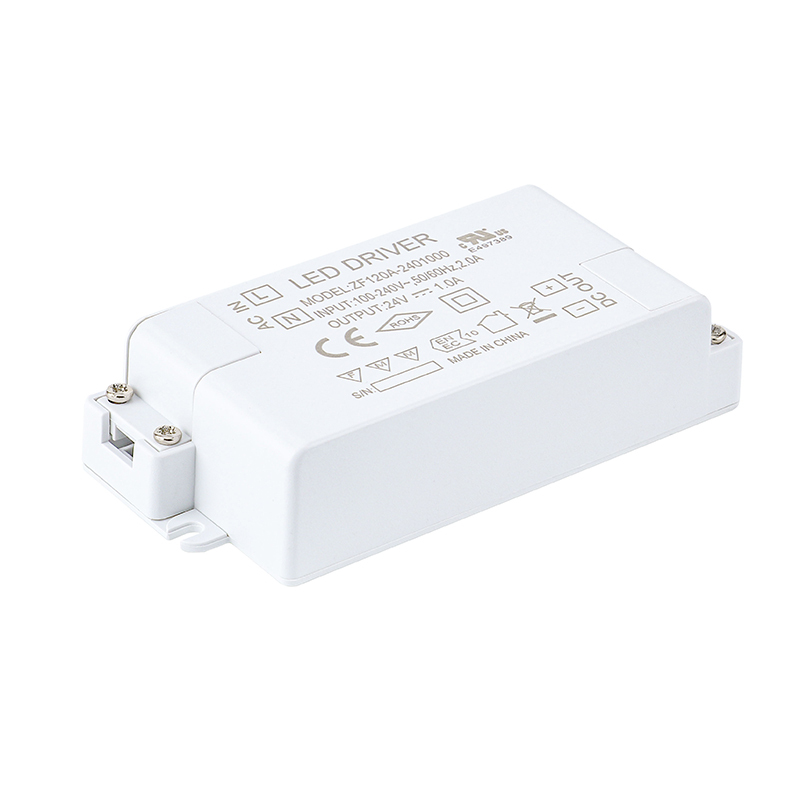

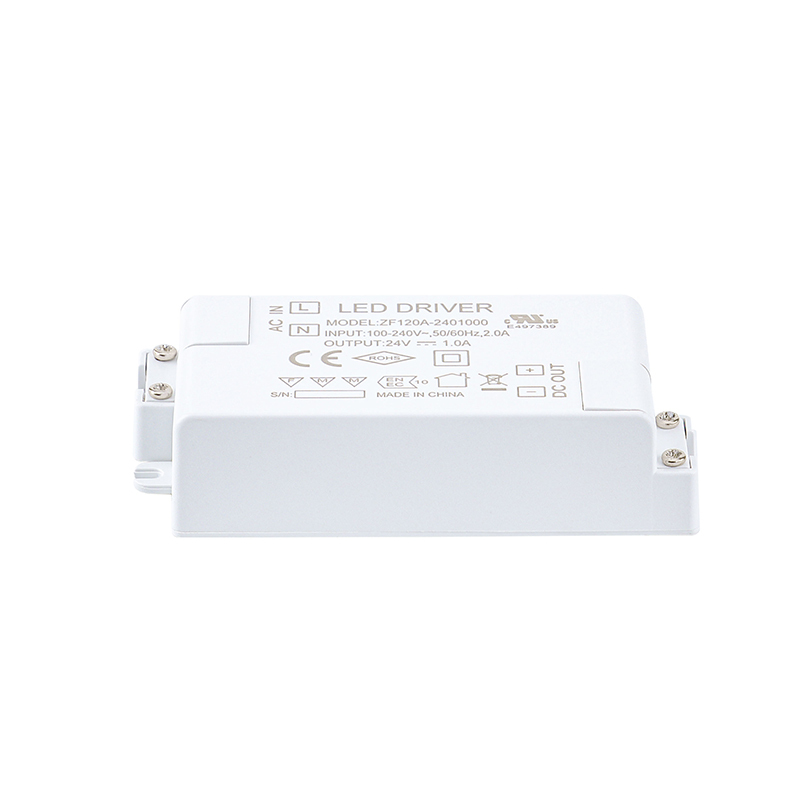

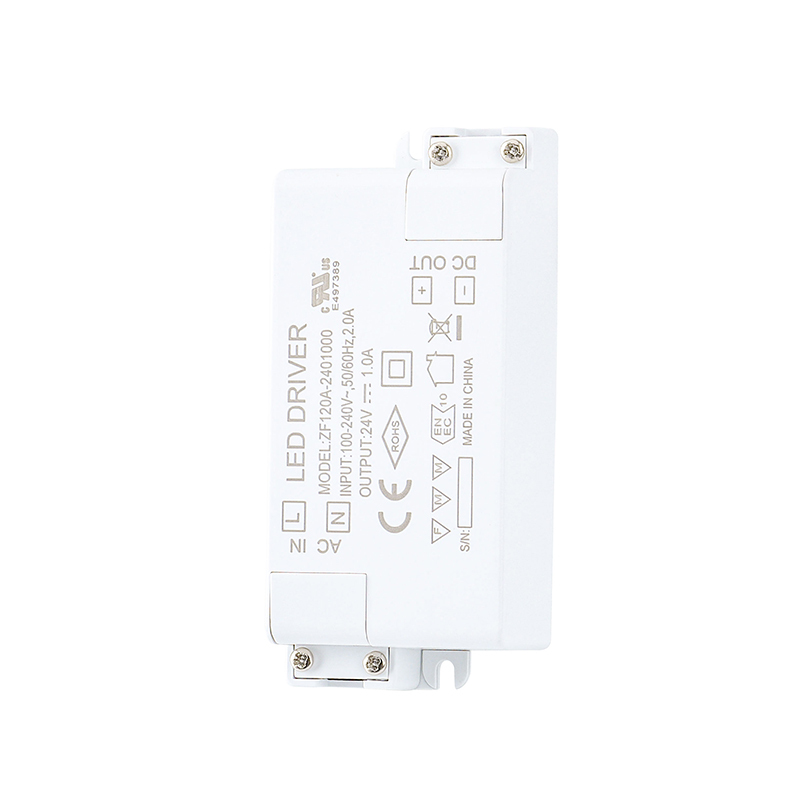

The 24V LED Lighting driver is one low cost, 24V AC/DC constant voltage mode single output AC to Dc Led Driver series. The 24v Led Transformer accepts the universal AC input voltage range 100VAC to 240VAC and provides 12 months warranty. With the features of Class II design (without FG pin) and adopts the flame retardant rectangular plastic enclosure with IP20 level, Constant Voltage led driver is certified for UL/cUL, CE and RoHS the international safety regulations.
Features
◆ Constant voltage design
◆ Rectangular plastic case with IP20 level
◆ Universal AC input / Full range
◆ Protections: Short circuit / Over voltage / Over current
◆ Class II power (without earth pin)
◆ Suitable for indoor LED lighting and moving sign applications
◆ 1 year warranty
Specifications
| Output Voltage: 24V |
| Color: White |
| Input: 110-240V AC±10% 47~63Hz |
| Output type: DC and Single output |
| Working Environmen: 0℃-40℃ (0%-90%RH) |
| Storage Environment:-20℃-60%℃ (0%-90%RH) |
| Load Regulation: ±5% |
|
RoHS Compliant: Yes |
| Ripple & Noise(max): < 150mVp-p |
|
Safety Approvals: UL/cUL 8750 CE ...
Mechanical Specification
|
