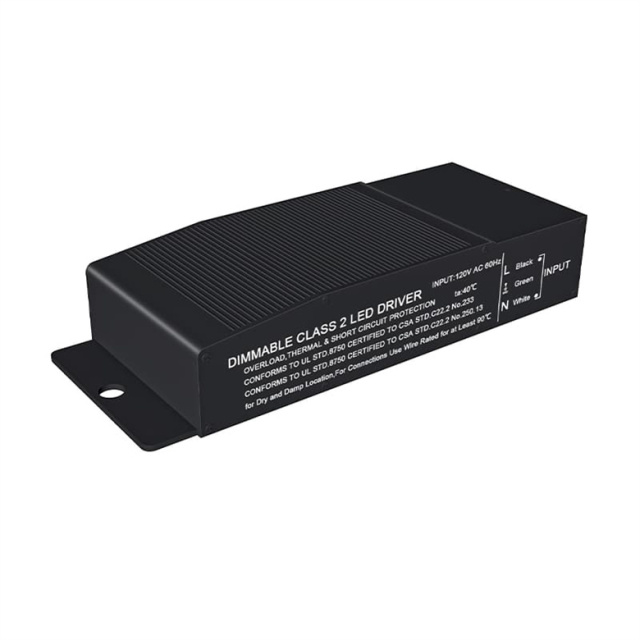

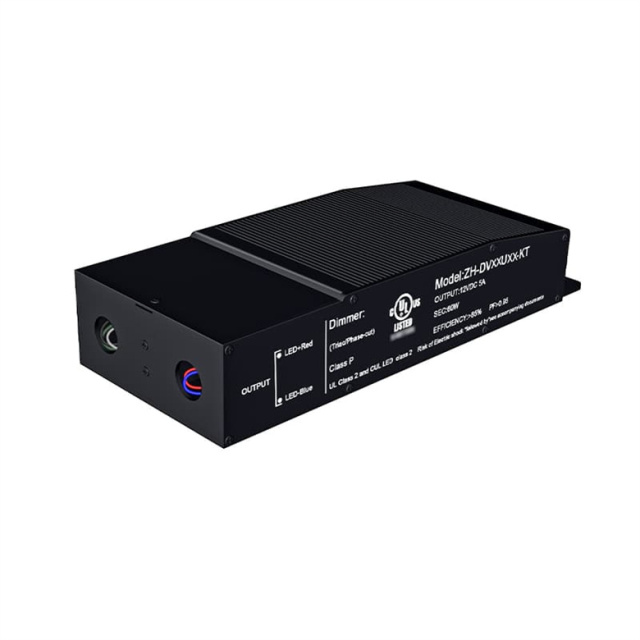

The phase dimmable led driver is a 100-120VAC input high PFC dimming power supply with built-in junction box, no flicker. The led transformer is UL cUL Class 2 rated and output voltage 12V 24V option.

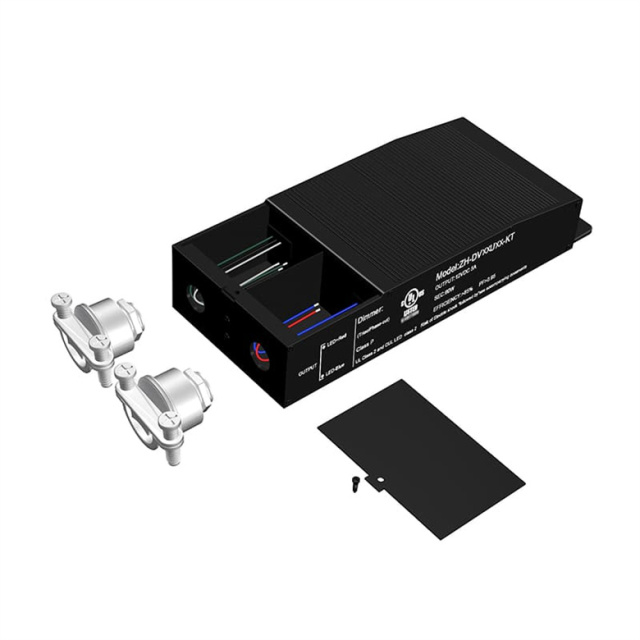

The triac phase cut led dimmable driver is a 40 wattage 12volt / 24volt constant voltage dc output dimmable drivers for led strip lights and various LED fixtures installations. The 12v dimmable led driver accepts 120V AC input voltage and use low profile aluminum materials with junction box that included 2 knock-outs to enable easy installation makes the dimmable led driver perfect for outdoor use. This 24 volt dimmable LED Driver is certified UL/cUL 8750 Class 2 safety approvals and provides 8 safety protections.
Features:
． Dimmable with any standard MLV/Incandescent TRIAC (Leading edge) dimmer switch
． Super compact Aluminum case
． UL/cUL 8750, Class 2
． Nema 3R - Outdoor Use
． Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature protection, over power protection and short circuit protection
Input Voltage 120V AC 60Hz
Output Voltage 24Volt / 12Volt
Operating Temperature -20℃-45℃(-4℉-101℉)
Mode Constant voltage
Dimensions (inch) 6.97"×2.76"×1.38"
Weight 720g
12/24-Volt Installation Guide
Highly efficient, stabilized, constant voltage power of LED lighting
General
- This driver is to be installed in accordance with Article 450 of the National Electric Code and installed by qualified and professional electrician;
- Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.
Before Installing
- Power must be disconnected at all times during installation.
- Observe polarity of the 12/24-volt DC output. Failure to observe polarity could damage LED lighting.
- Total wattage of all LED fixtures used must not exceed the maximum watt rating of the Power Supply.
Input Connections / Grounding
- Use the clamp connectors to secure cords and wires.
- Route and secure wires so they will not be pinched or damaged.
- All wiring must be in accordance with national and local electrical codes, low voltage Class 2 circuit. For wire runs inside of walls, use properly certified CL2 or better cabling and appropriate mounting hardware. If you are unclear as to how to install and wire this product, contact a qualified electrician. Failure to install this device properly may result in electrical shock or fire.
- Do not install Class 2 low voltage wiring in the same runs as AC main power. If AC and low voltage wires cross, keep them at 90-degree angles.
- The driver case MUST be grounded in accordance with the N.E.C. Connect the ground wire to the driver green wire.
Output Wire
- Bring the wires of the light fixture through the other clamp connector and connect them to the driver wires - positive to the red (+) wire and negative to the blue (-) wire
| Package | Piece/Carton(pcs) | Dimension/Carton(mm) | Dimension/Brown Box(mm) | Piece Weight(KG) | Gross Weight/Carton(KG) |
| OEM package | 25 | 420 x 250 x 245 | 199 x 90 x 75 | 0.72 | 19 |
