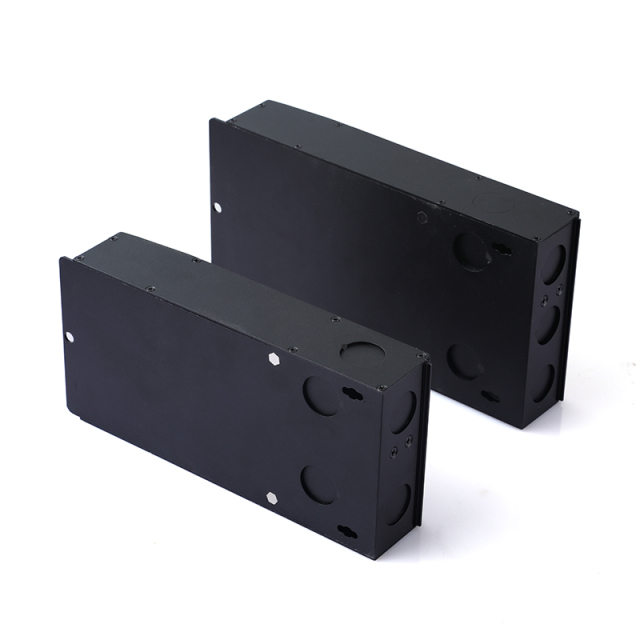

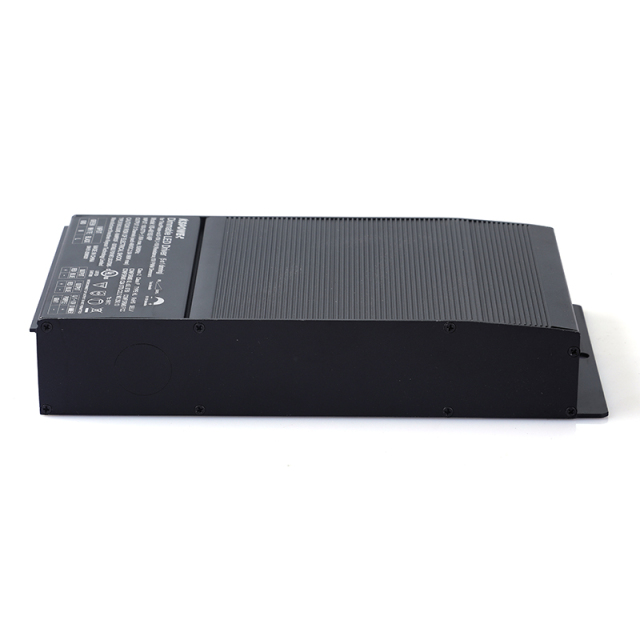

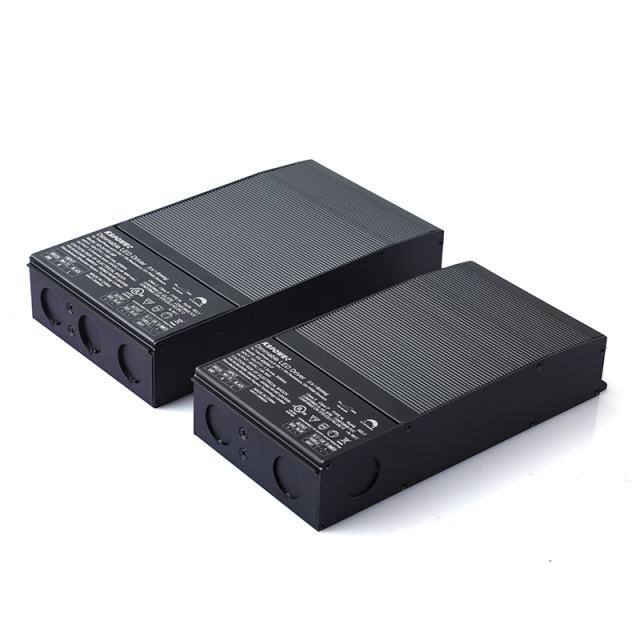

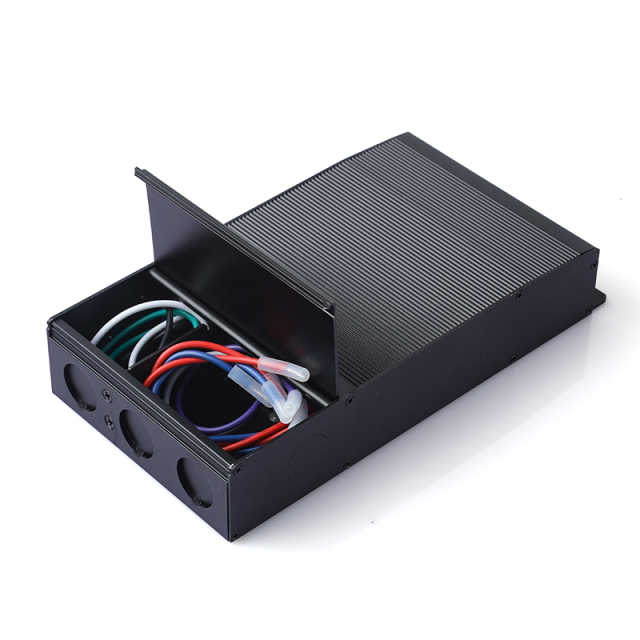

The KSPOWER MP series 5 IN 1 dimmable led driver 12V 5X60W(300W) is one black color, universal AC input voltage range from 100V-277VAC Constant Voltage LED Driver certified to meet UL cUL Class 2 Class P and CE safety approvals. The MLV/ELV dimmable Power Supply use low profile aluminum case with US Patent makes 12V led dimmable driver the power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring PFC function of up to 0.95 and higher, NEMA 3R environment Protection Rating for indoor or outdoor use, the MP series triac/0-10V dimmable led power transformer provide 5 years warranty and outstanding led dimming peformance.
Features:
．PWM or Voltage Reduction output Selectable
．5-Ways Universal Dimming Functions optional:
a. 5 in 1 dimming: TRIAC, ELV, MLV, 0-10V, 1-10V, 10V PWM and potentiometer dimming
b. Triac dimming: TRIAC/phase, ELV, MLV dimming
c. 4 in 1 dimming: 0-10V, 1-10V, 10V PWM and potentiometer
d. Non-dimming
． Super compact Aluminum case
． UL/cUL CE Class 2 CLASS P FCC RoHS LPS
． NEMA 3R rated - Indoor or Outdoor Use
． Switch to color temperature LED Strips 100%-0.01% dimming flicker- free
． Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature protection, over power protection and short circuit protection
|
MODEL |
KS-12300a-M# |
||
|
OUTPUT |
Output Voltage |
12V |
|
|
Rated current x Channel |
5A x 5 |
||
|
Rated power |
300W |
||
|
Ripple & Noise (max.) |
200mVp-p |
||
|
Voltage accuracy |
±2.0% |
||
|
Linear adjustment rate |
±0.5% |
||
|
Load adjustment rate |
±0.5% |
||
|
Start, rise time |
1000ms, 100ms/230VAC, 1100ms, 100ms/115VAC |
||
|
Hold time |
10ms/115VAC, 230VAC |
||
|
INPUT |
Voltage range |
100 ~ 277VAC |
|
|
Frequency range |
47 ~ 63Hz |
||
|
Power factor |
PF≧0 98/115VAC, PF≧0 95/230VAC , PF≧0.9 /277VAC, Full load |
||
|
Total harmonic distortion |
THD< 20% (@ load ≧50%/115VC,230VAC; @ load ≧75%/277VAC) |
||
|
Efficiency |
Vin: 115VAC |
≧90% |
|
|
Vin: 230VAC |
≧91.02% |
||
|
AC current |
3.7A |
||
|
Inrush current |
Cold start 75A(width=350us measured at 50% l peak)/230Vac |
||
|
Leakage current |
< 1 m A |
||
|
No load/ standby power consumption |
< 4W |
||
|
Protection |
Over current |
95 ~ 110% |
|
|
95 ~ 110% Constant current limit, load abnormal condition can be removed after automatic recovery |
|||
|
Short circuit |
Burp mode, load abnormal conditions can be removed after automatic recovery |
||
|
Over voltage |
13 ~ 16 V |
||
|
Turn off the output voltage, restart and resume |
|||
|
Over temperature |
Turn off the output voltage, restart and resume |
||
|
Environment |
Working Temp |
T case=-40 ~ +50℃ |
|
|
Max.Case Temp |
T case=+90℃ |
||
|
Working Humidity |
20 ~ 95% RH, non-condensing |
||
|
Storage Temp.,Humidity |
-40 ~ +90℃, 10 ~ 95% RH |
||
|
Temp.Coefficient |
±0.03%/℃ (0 ~60℃) |
||
|
Vibration |
10~500Hz, 5G 12min./1 cycle, period for 72 min. each along X,Y,Z axes |
||
|
Safety & EMC |
Safety standards:UL8750+UL1310 |
||
|
Withstand voltage:I/P-O/P:1.88KVac |
|||
|
Isolation resistance:I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|||
|
EMC EMISSION:Confirms to FCC |
|||

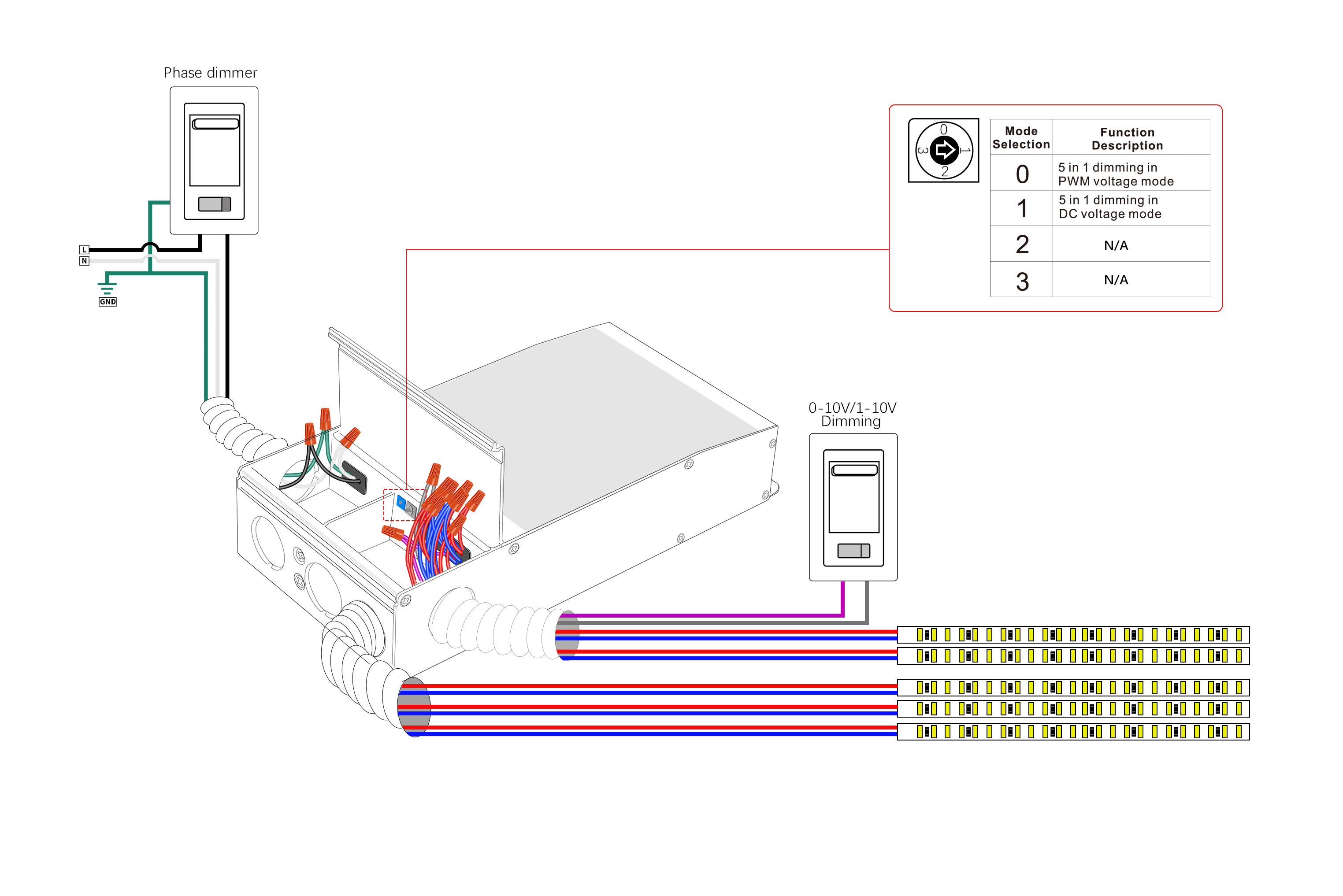

Dimming Connect Drawing (5 in 1 dimming):
Dimension Drawing:
