ZhenHuan LT SERIES – CONSTANT VOLTAGE

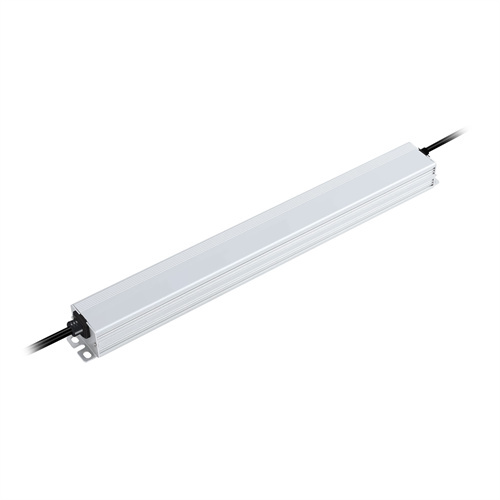

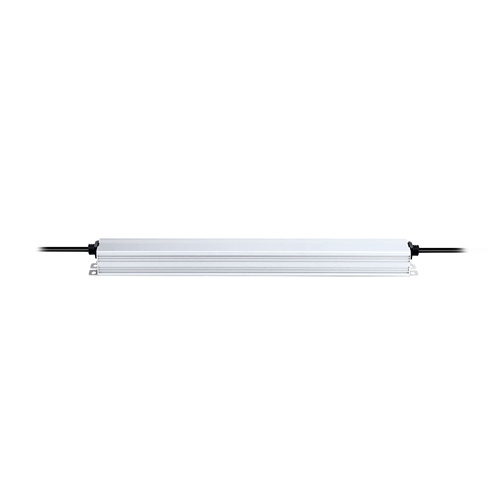

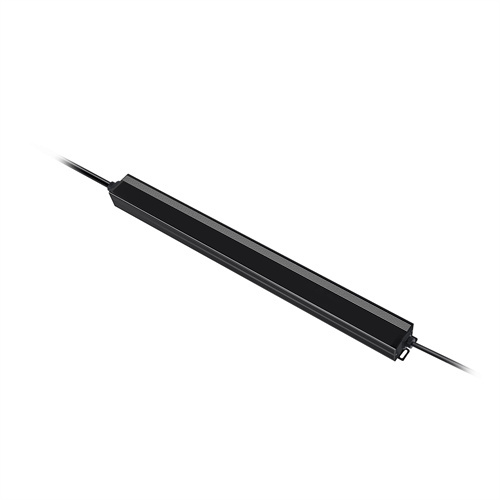

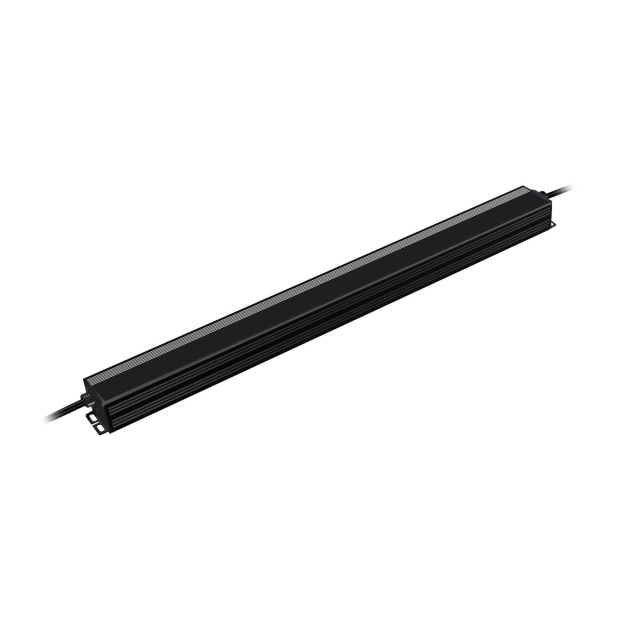

The LT series Triac Dimmable LED Drivers is one 30W slim Class 2, Class P, TYPE HL, Triac/Phase/ELV/MLV dimmable led driver compatible with most AC wall dimmers including Lutron, Leviton and most other household dimmers making it the perfect choice for LED tape lighting, tube lighting, linear lighting and multiple other commercial lighting applications. The 30W dimmable LED drivers is also available in a non-dimmable version.The UL cUL FCC CE Listed led driver aluminum enclosure is rated IP65 for indoor or outdoor installations and includes a separate input and output wiring compartment for clean and easy installation. The slim dimmable led driver transformer features hiccup mode, over current and short circuit protections, as well as an efficiency over >88% resulting in a low operating case temperature.
Universal AC Input | Single Channel Constant Voltage Output | Listed Enclosure
Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
| MODEL | KS-30LX-12T | KS-30LX-24T | KS-30LX-36T | KS-30LX-48T |
| Output Voltage | 12V | 24V | 36V | 48V |
| Output Current | 2.5A | 1.25A | 0.83A | 0.625A |
| Output Wattage | 30W | 30W | 30W | 30W |
Driver Type: Class 2 Class P
Dimming: Triac/Phase-cut Dimmable; Non-Dimmable Available
Environmental: Dry and Damp
Features:
Dimming Wiring Drawing:
Dimension Drawing(mm):
