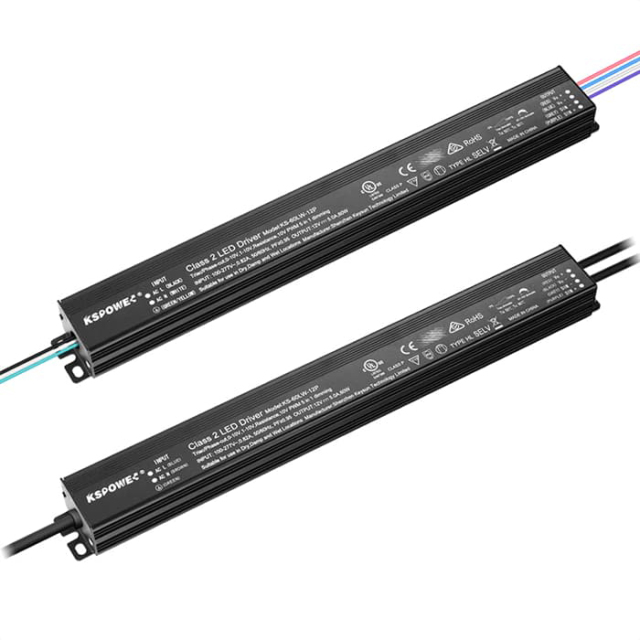

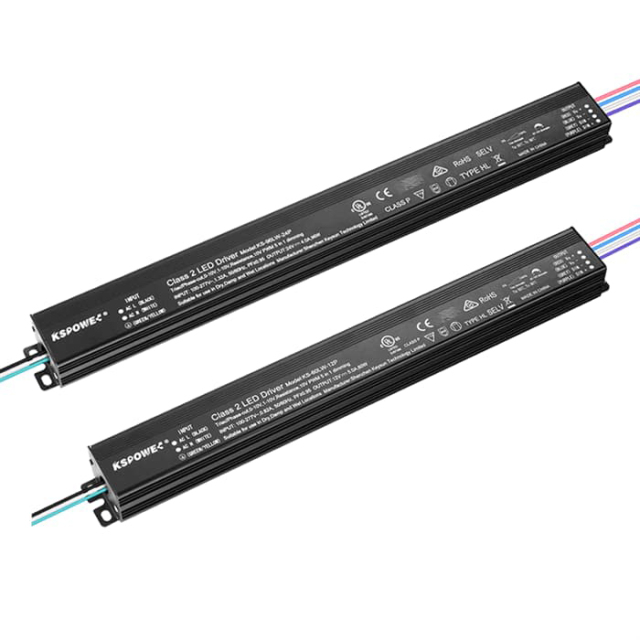

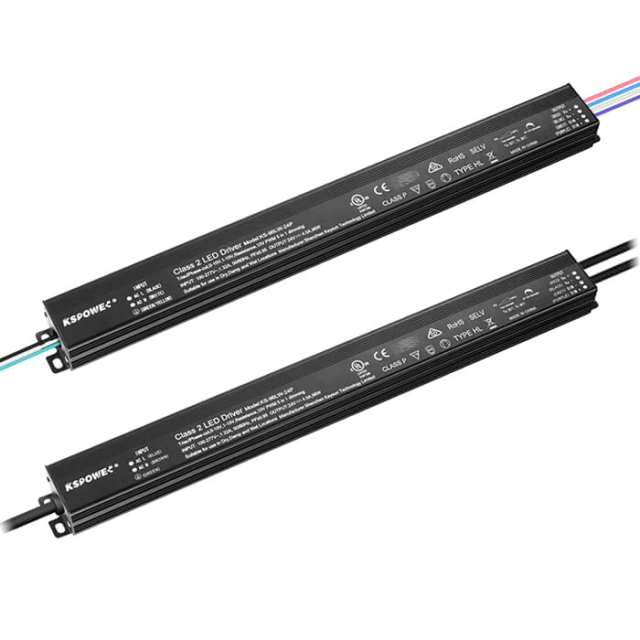

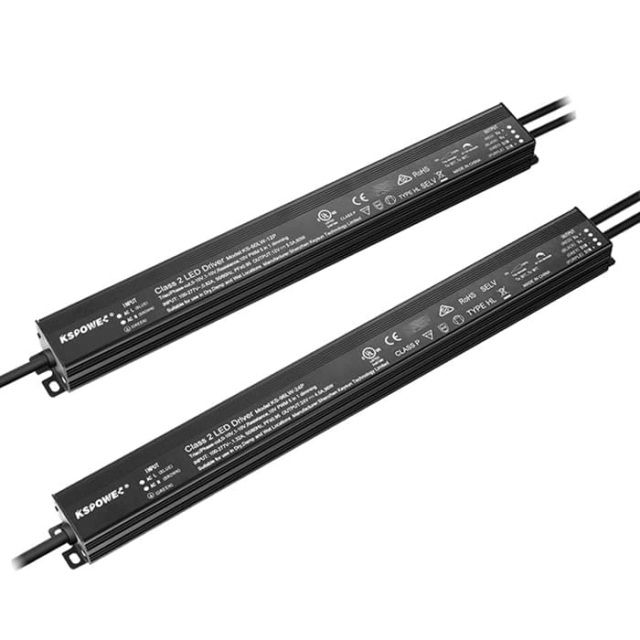

LP Series 96W 100W 5-IN-1 Dimmable LED Driver

ZhenHuan LP SERIES – CONSTANT VOLTAGE
The LP series 5 IN 1 Dimmable LED Drivers is one 96W 100W slim case, Class P, TYPE HL, Triac / Phase / 0-10V / 1-10V / Resistance / PWM dimmable led driver compatible with most AC wall dimmers including Lutron, Leviton and most other household dimmers making it the perfect choice for LED tape lighting, tube lighting, linear lighting and multiple other commercial lighting applications. The dimming LED drivers is also available in a non-dimmable version.The UL cUL FCC CE Listed led driver aluminum enclosure is rated IP65 for indoor or outdoor installations and includes a separate input and output wiring compartment for clean and easy installation. The RoHS led driver transformer features hiccup mode, over current and short circuit protections, as well as an efficiency over >88% resulting in a low operating case temperature.

Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use

Driver Type: Class 2 Class P

Enclosure: LISTED Enclosure

Dimming:  Triac / PWM, 0/1-10V or Resistor Dimmable; Non-Dimmable Available

Environmental: Dry and Damp

Features:

• Wiring Compartments with Knock-Outs for Clean and Easy Installation

• Current Limiting Overload Protection

• Flicker-Free

• Smooth Ripple Free Output Voltage

• IP65 Rated Enclosure for Indoor and Outdoor Use

• 5-Years Warranty

• UL/cUL CE FCC RoHS Listed, SELV, Type HL
•

  Dimming Wiring Drawing OPTIONS:



  Dimension Drawing(mm):
