ZhenHuan LO SERIES – CONSTANT VOLTAGE

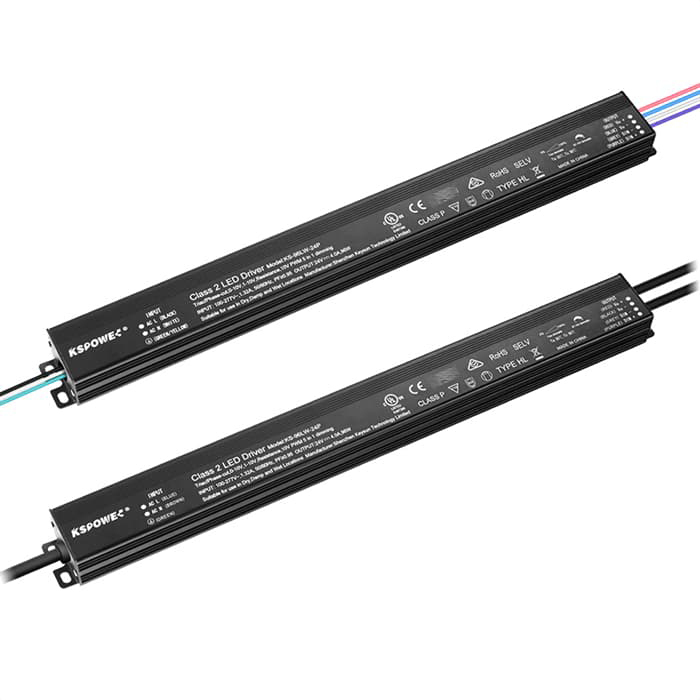

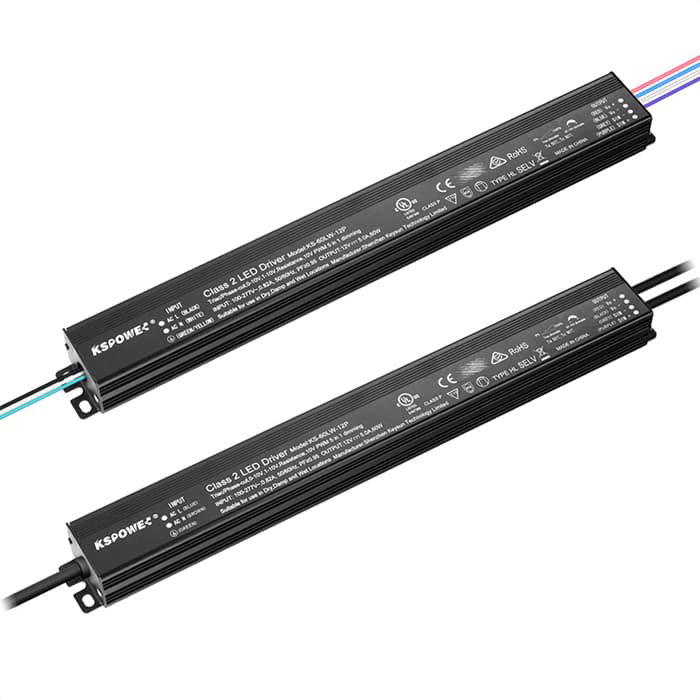

The LO series 4 IN 1 Dimmable LED Drivers is one 60W slim Class 2, Class P, TYPE HL, 0-10V / 1-10V / Resistance / PWM dimmable led driver compatible with most AC wall dimmers including Lutron, Leviton and most other household dimmers making it the perfect choice for LED tape lighting, tube lighting, linear lighting and multiple other commercial lighting applications. The dimming LED drivers is also available in a non-dimmable version.The UL cUL FCC CE Listed led driver aluminum enclosure is rated IP65 for indoor or outdoor installations and includes a separate input and output wiring compartment for clean and easy installation. The RoHS led driver transformer features hiccup mode, over current and short circuit protections, as well as an efficiency over >88% resulting in a low operating case temperature.
Input Voltage: Universal 100VAC to 277VAC, 50/60Hz for Residential, Commercial, and Industrial Use
| Model | KS-60XX-12O | KS-60XX-24O | KS-60XX-36O | KS-60XX-48O |
| Output Voltage | 12V | 24V | 36V | 48V |
| Output Current | 5A | 2.5A | 1.67A | 1.25A |
| Output Wattage | 60W | 60W | 60W | 60W |
Driver Type: Class 2 Class P
Enclosure: LISTED Enclosure
Dimming: PWM, 0/1-10V or Resistor Dimmable; Non-Dimmable Available
Environmental: Dry and Damp
Features:
Dimming Wiring Drawing OPTIONS:
Dimension Drawing(mm):
