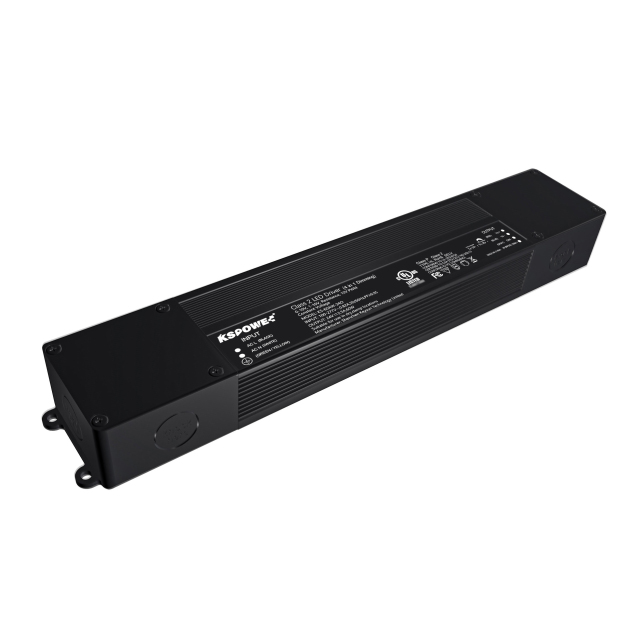

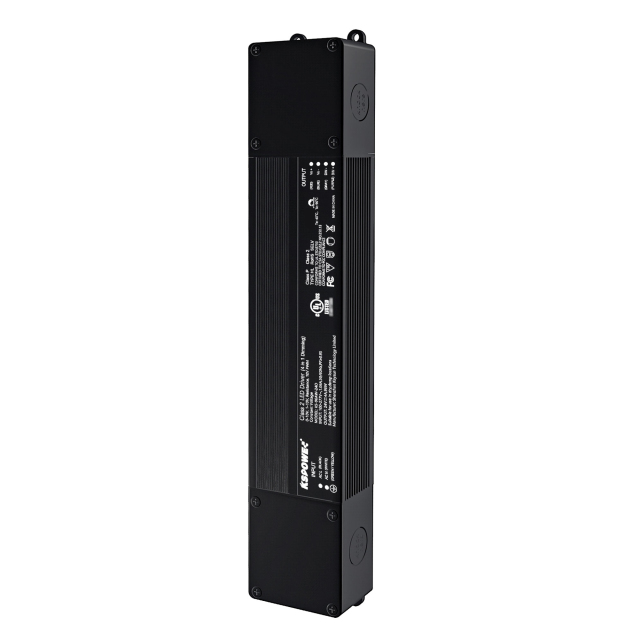

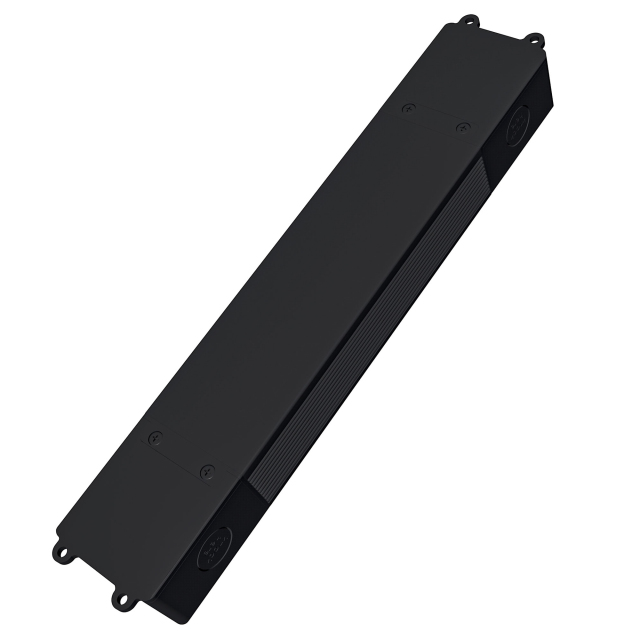

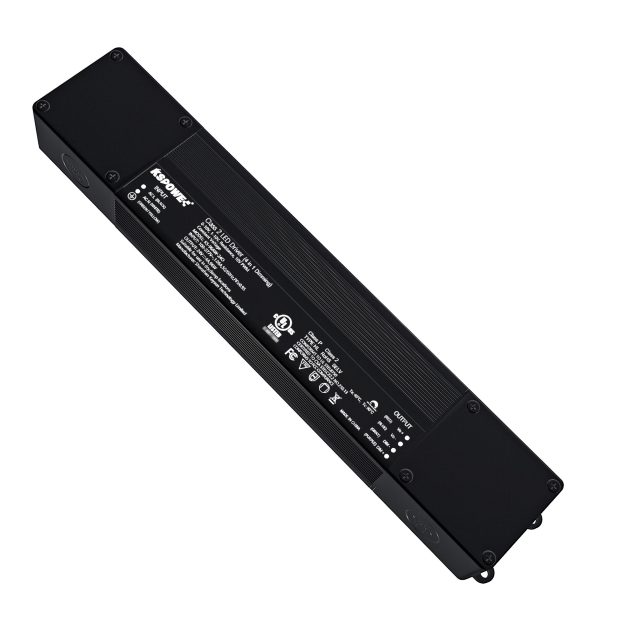

The ZhenHuan HTJ / HT series Phase dimmable led driver 300Watt 320 Watt is one black color, universal AC input voltage range from 100V-277VAC Constant Voltage LED Driver certified to meet UL cUL Class P and CE safety approvals. The MLV/ELV dimmable Power Supply use low profile aluminum case with detachable junction box makes led dimmable driver the power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring PFC function of up to 0.95 and higher, IP65 IP67 environment Protection Rating for indoor or outdoor use, the HTJ/HT series triac dimmable led power transformer provide 5 years warranty and outstanding led dimming peformance.
Features:
． Dimmable Functions: TRIAC dimmable, ELV, MLV
． Super compact Aluminum case
． UL/cUL CE CLASS P FCC RoHS LPS
． IP65 / IP67- Indoor or Outdoor Use
． Work in the temperature range of-40℃~+50℃ under natural air cooling and heat dissipation
． Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature protection, over power protection and short circuit protection
| Input Voltage | 100~277V AC 47~63Hz |
||||
| Power Factor | PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, full load |
||||
| Model | KS-300XX-24T | KS-320XX-24T | KS-320XX-36T | KS-320XX-48T | |
| Output Voltage | 24V | 24V | 36V | 48V | |
| Rated Current | 12.5A | 13.33A | 8.88A | 6.67A | |
| Rated Power | 300W | 320W | 320W | 320W | |
| Ripple & Noise (max.) | 200mVp-p | 250mVp-p | 250mVp-p | 250mVp-p | |
| Dimenion (L*W*H) |
258*68*41mm(367*68*41mm) |
||||
Dimming Connect Drawing:
Dimension Drawing:
| Package | Piece/Carton(pcs) | Dimension/Carton(mm) | Dimension/Brown Box(mm) | Piece Weight(KG) | Gross Weight/Carton(KG) |
| OEM package | 15 | 400 x 400 x 165 | 382 x 74 x 45 | 1.46 | 22.5 |
