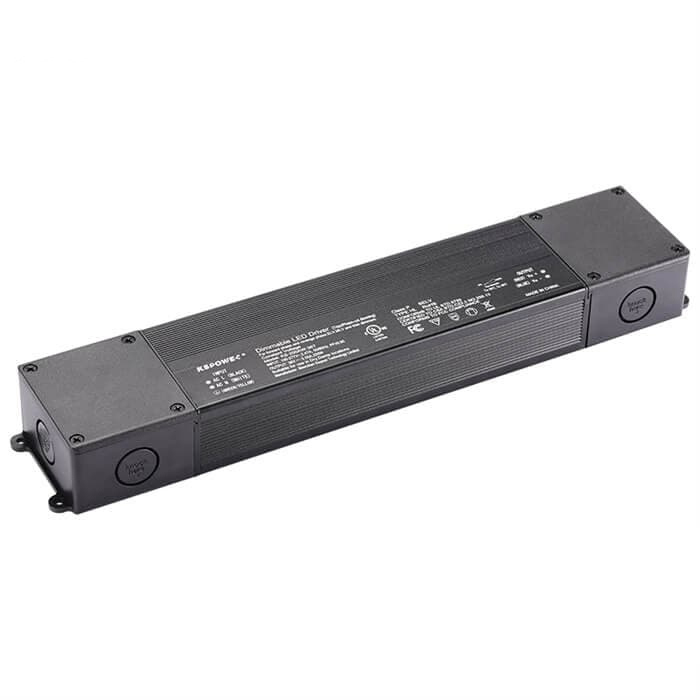

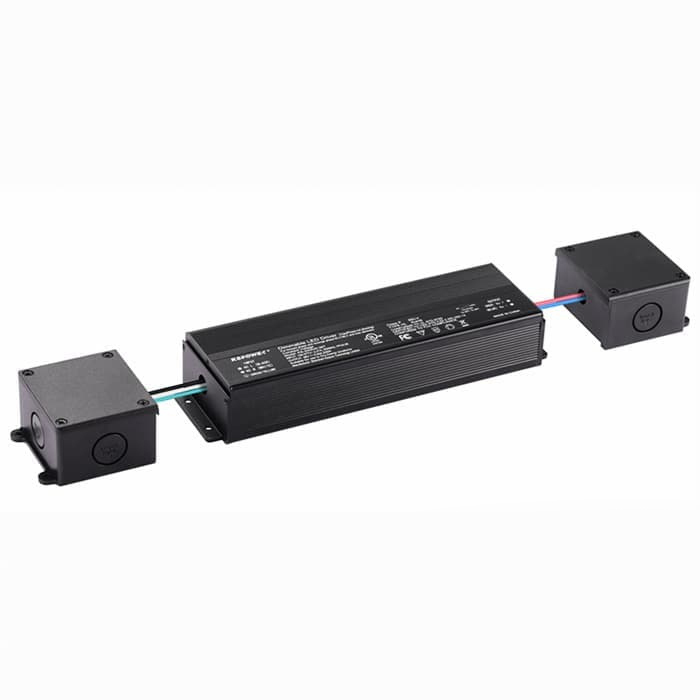

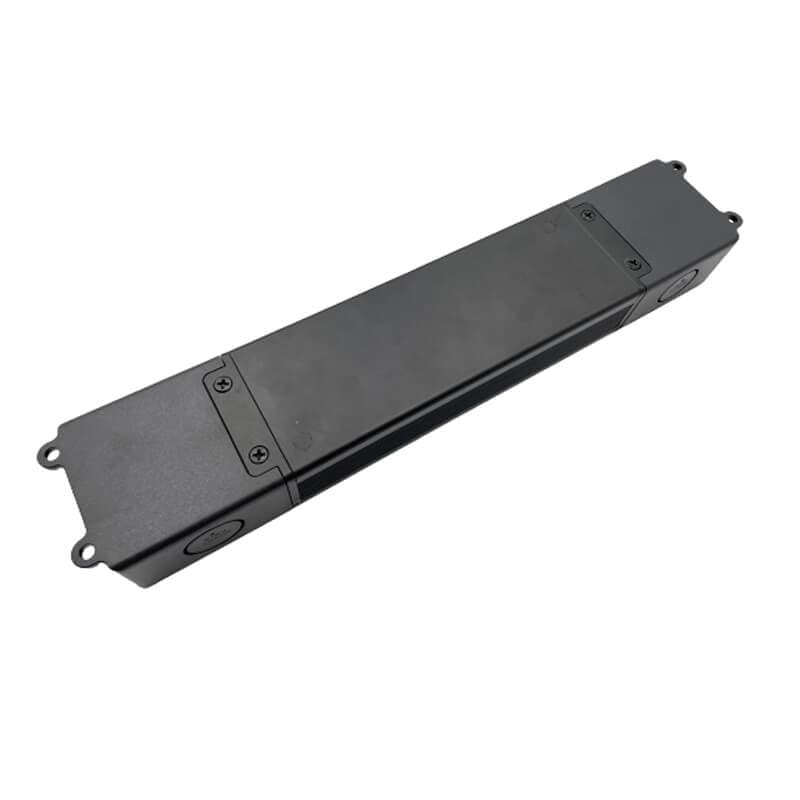

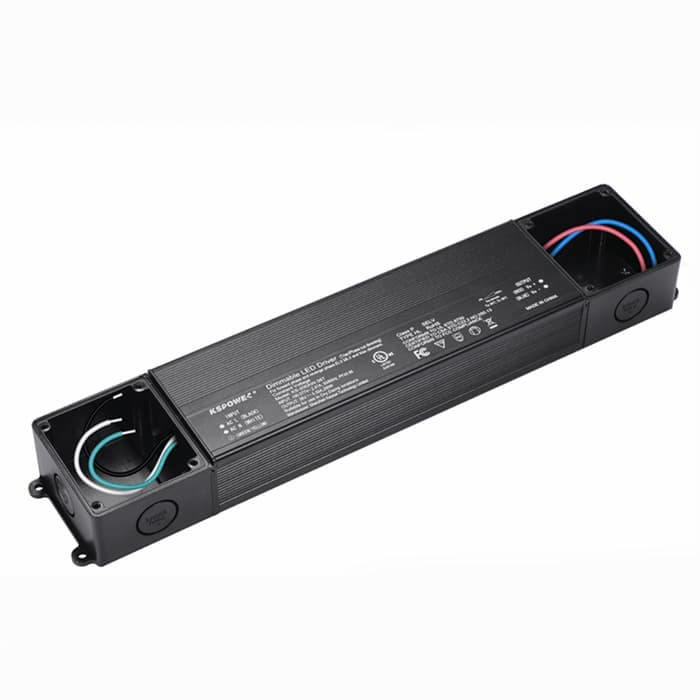

The KSPOWER HJ series junction box led driver 100 Watt is one black color, universal AC input voltage range from 100V-277VAC Constant Voltage LED Driver certified to meet UL cUL and CE FCC safety approvals. The LED Power Supply use low profile aluminum case with detachable junction box makes led driver the power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring PFC function of up to 0.95 and higher, IP65 IP67 environment Protection Rating for indoor or outdoor use, the HJ series led transformer provide 5 years warranty and easy installation.
Features:
． Super compact Aluminum case
． UL/cUL CE CLASS P FCC RoHS LPS
． IP65 IP67 - Indoor or Outdoor Use
． Work in the temperature range of-40℃~+50℃ under natural air cooling and heat dissipation
． Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature protection, over power protection and short circuit protection
| Input Voltage | 100~277V AC 47~63Hz | ||||
| Power Factor | PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, full load | ||||
| Model | KS-100AW-12 | KS-100AW-24 | KS-100AW-36 | KS-100AW-48 | |
| Output Voltage | 12V | 24V | 36V | 48V | |
| Rated Current | 8.3A | 4.16A | 2.77A | 2.08A | |
| Rated Power | 100W | 100W | 100W | 100W | |
| Ripple & Noise (max.) | 200mVp-p | 250mVp-p | 250mVp-p | 250mVp-p | |
| Dimenion (L*W*H) |
322*58*36mm |
||||
Connect Drawing:
Dimension Drawing:
| Package | Piece/Carton(pcs) | Dimension/Carton(mm) | Dimension/Brown Box(mm) | Piece Weight(KG) | Gross Weight/Carton(KG) |
| OEM package | 20 | 360 x 356 x 190 | 339 x 65 x 41 | 0.9 | 18.5 |
