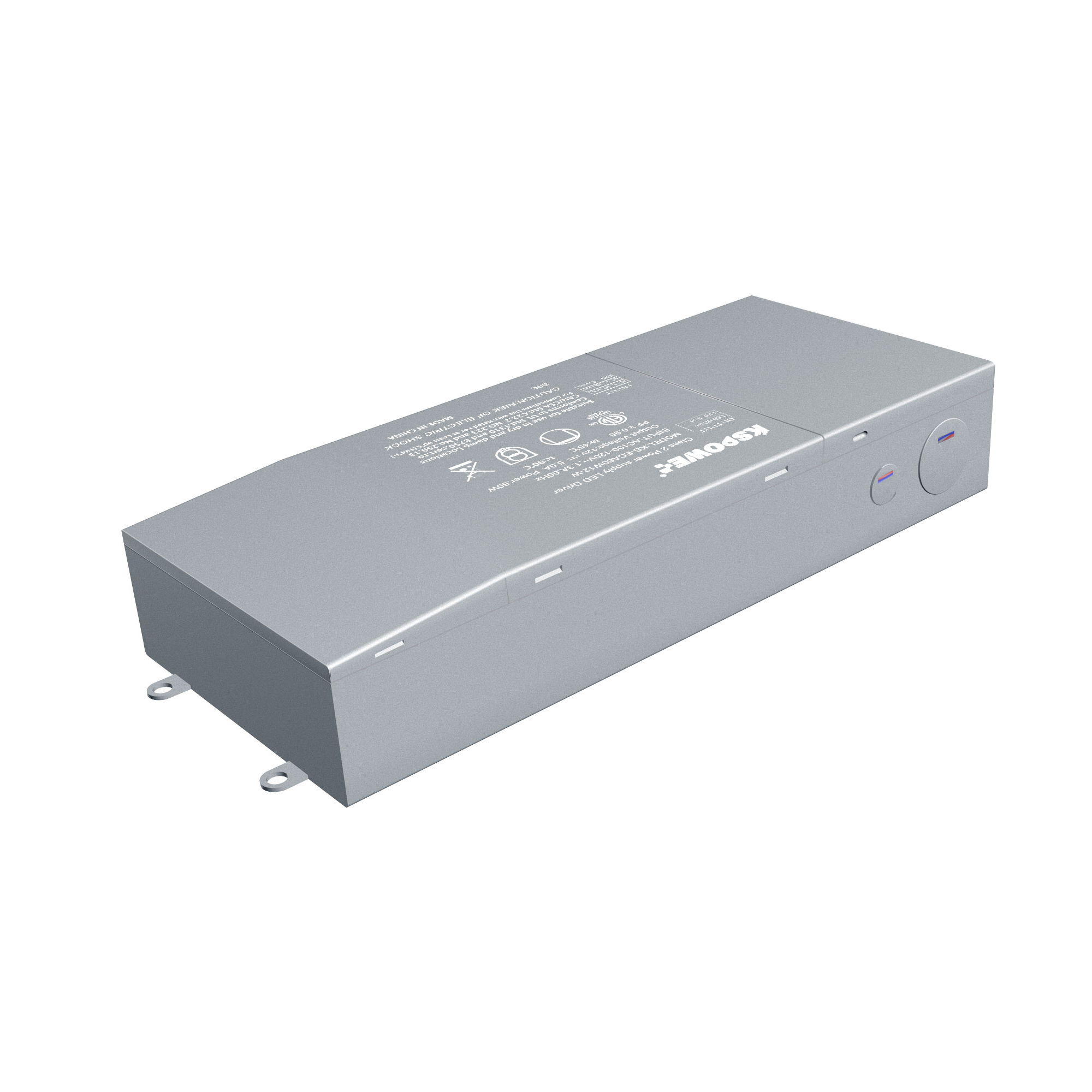

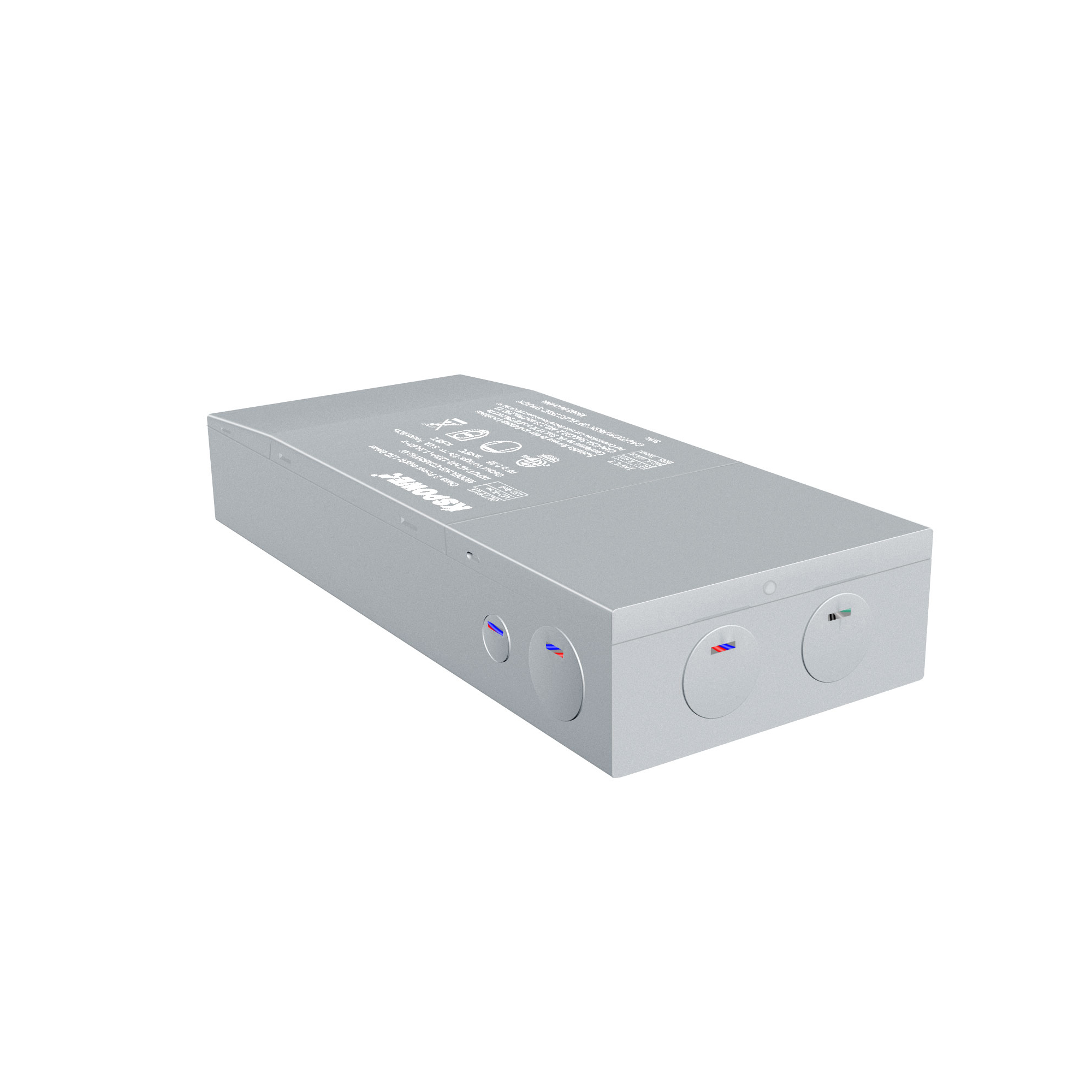

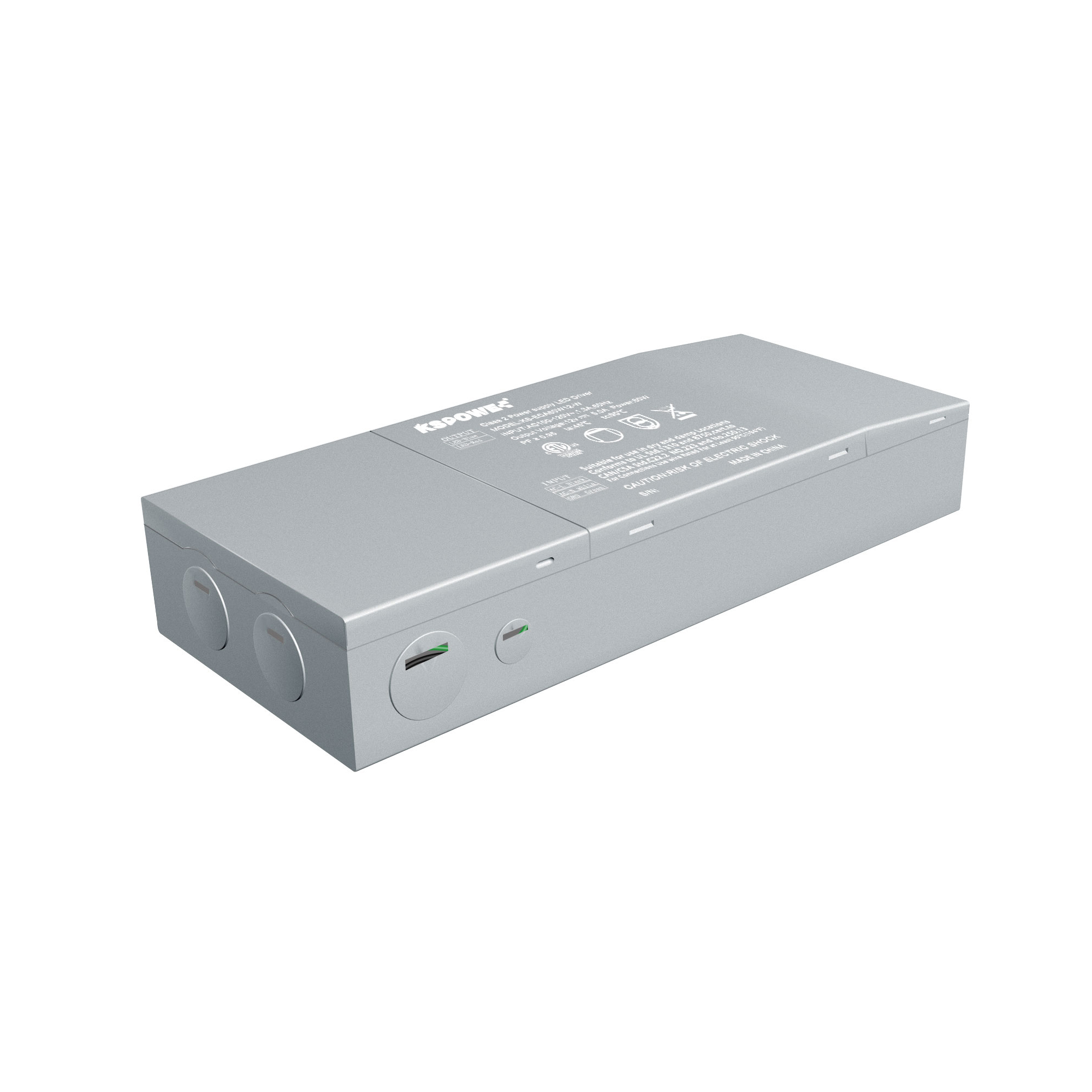

E Series 80W 24V Junction Box LED Driver

The junction box led driver is one 120VAC Input voltage, 80 Watt 24VDC output North America indoor LED Driver certified to meet ETL/cETL Class 2 safety approvals. The led Power Supply use low profile iron case with junction box to enable easy installation makes led driver the power solutions for led tape/strip, modules, LED bar light. Featuring US Level VI energy efficiency standards of up to 90% and higher, IP20 environment Protection Rating, Constant Voltage LED Driver power supply (with junction box) can indoor use and provide outstanding power peformance.

Features:

． Super compact IRON CASE

． ETL/cETL Class 2 RoHS

． IP20 - Indoor Use

． Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature protection, over power protection and short circuit protection

Specification:

Input Voltage            120V AC  60Hz

Output Voltage            24V DC

Operating Temperature     -20℃-45℃(-4℉-101℉)

Mode                           Constant voltage

Dimensions (inch)         7.88"×3.35"×1.46"

Weight                  520g

12/24-Volt DC Installation Guide

Highly efficient, stabilized, constant voltage DC power of LED lighting

General
- This driver is to be installed in accordance with Article 450 of the National Electric Code and installed by qualified and professional electrician;
- Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.

Before Installing
- Power must be disconnected at all times during installation.
- Observe polarity of the 12/24-volt DC output. Failure to observe polarity could damage LED lighting.
- Total wattage of all LED fixtures used must not exceed the maximum watt rating of the power supply.

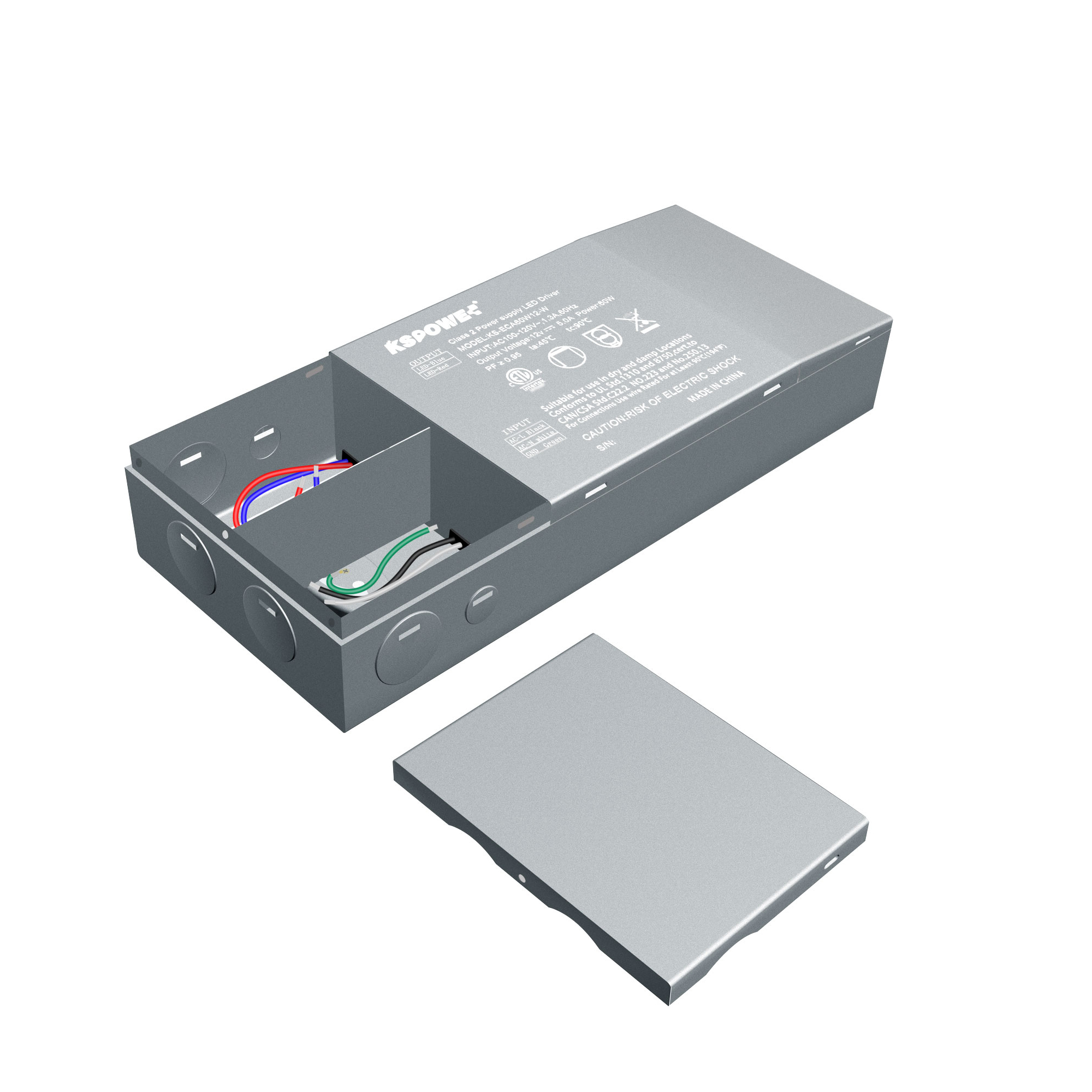

Input Connections / Grounding
- Use the clamp connectors to secure cords and wires.
- Route and secure wires so they will not be pinched or damaged.
- All wiring must be in accordance with national and local electrical codes, low voltage Class 2 circuit. For wire runs inside of walls, use properly certified CL2 or better cabling and appropriate mounting hardware. If you are unclear as to how to install and wire this product, contact a qualified electrician. Failure to install this device properly may result in electrical shock or fire.
- Do not install Class 2 low voltage wiring in the same runs as AC main power. If AC and low voltage wires cross, keep them at 90-degree angles.
- The driver case MUST be grounded in accordance with the N.E.C. Connect the ground wire to the driver green wire.

Output Wire
- Bring the wires of the light fixture through the other clamp connector and connect them to the driver wires - positive to the red (+) wire and negative to the blue (-) wire
