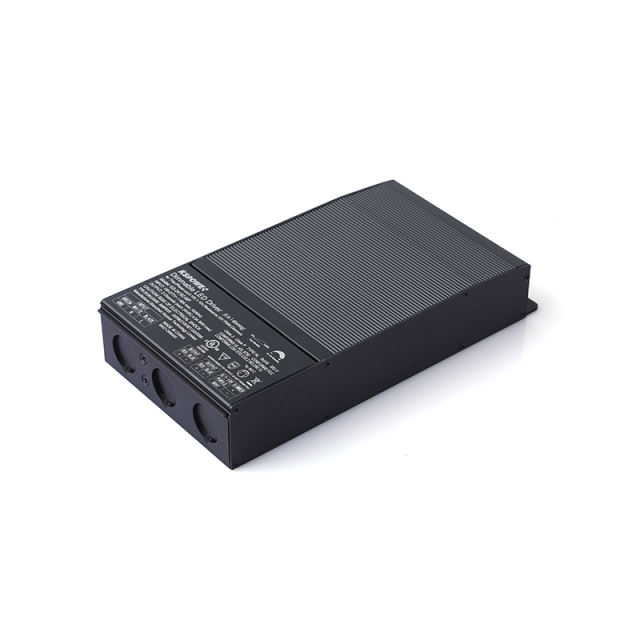

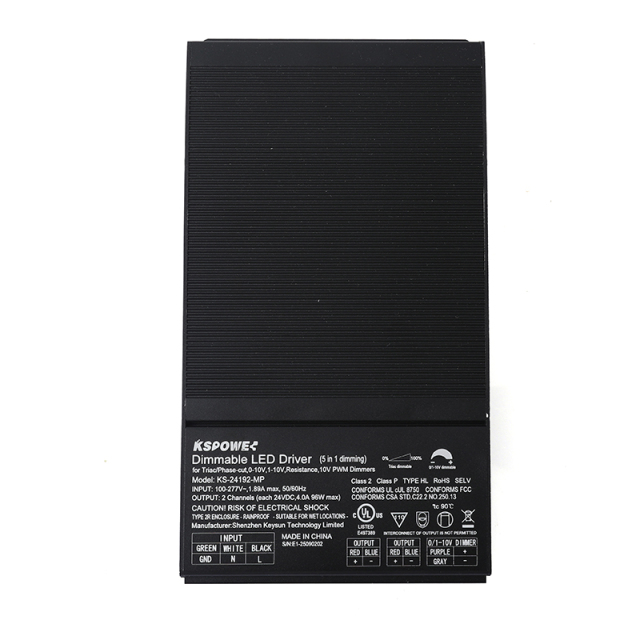

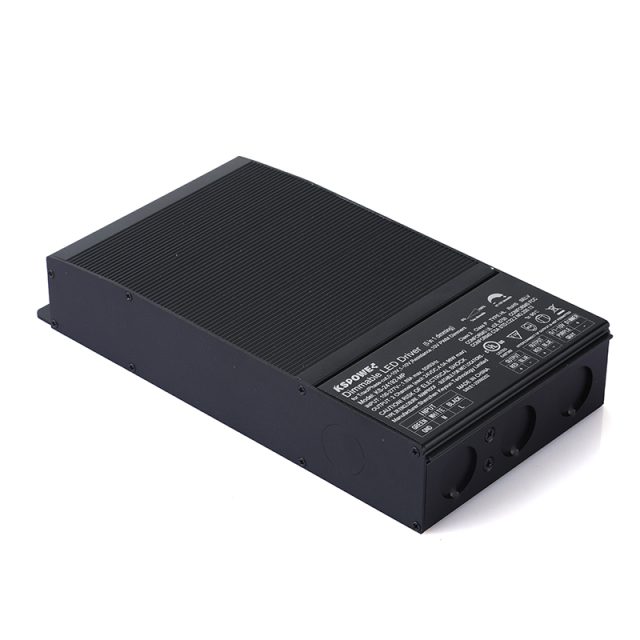

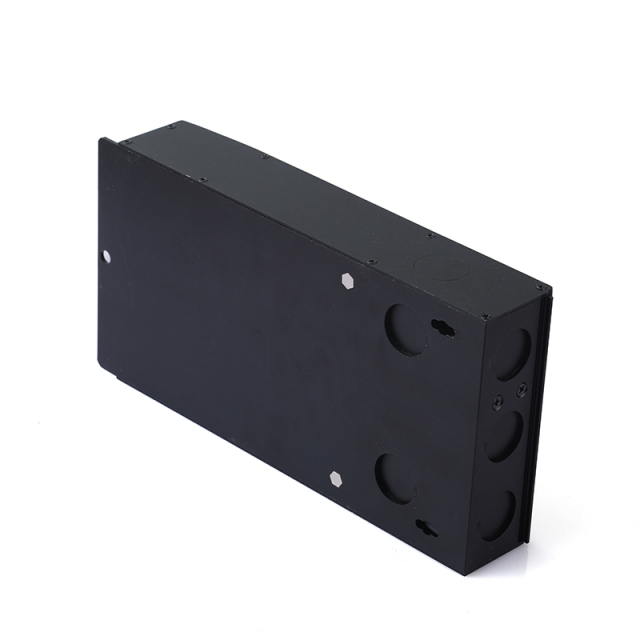

This phase-cut Triac dimmable LED driver offers stable, flicker-free constant voltage output for LED strips, neon flex, signage, under-cabinet lights, and landscape illumination. Available in 12V, 24V, 36V, and 48V with up to 96W, it ensures high wattage LED systems operate smoothly. Compatible with Lutron, Leviton, Triac, and ELV dimmers, it supports full-range 1–100% dimming. UL/cUL, FCC, CE, Class 2, and SELV safety ratings guarantee global compliance. High-efficiency PWM dimming, and built-in protection for short-circuit, overload, overvoltage, and overtemperature make it perfect for indoor and outdoor signage, kitchen cabinet LED strips, commercial lighting, and landscape projects. OEMs and professional installers can rely on stable, flicker-free, energy-saving LED power solutions.
Features:
．PWM or Voltage Reduction output Selectable
．Compatible with Forward phase, Reverse phase, Triac,MLV, ELV Dimmers
． Super compact Aluminum case
． UL/cUL CE CLASS P FCC RoHS LPS
． NEMA 3R rated - Indoor or Outdoor Use
． Switch to color temperature LED Strips 100%-0.01% dimming flicker- free
． Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature protection, over power protection and short circuit protection
|
MODEL |
KS-1296a-T |
KS-2496a-T |
KS-3696a-T |
KS-4896a-T |
||
|
OUTPUT |
Output Voltage |
12V |
24V |
36V |
48V |
|
|
Rated current x Channel |
8A |
4A |
2.66A |
2.0A |
||
|
Rated power |
96W |
96W |
96W |
96W |
||
|
Ripple & Noise (max.) |
200mVp-p |
250mVp-p |
250mVp-p |
250mVp-p |
||
|
Voltage accuracy |
±2.0% |
±2.0% |
±2.0% |
±2.0% |
||
|
Linear adjustment rate |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
||
|
Load adjustment rate |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
||
|
Start, rise time |
1000ms, 100ms/230VAC, 1100ms, 100ms/115VAC |
|||||
|
Hold time |
10ms/115VAC, 230VAC |
|||||
|
INPUT |
Voltage range |
100 ~ 277VAC |
||||
|
Frequency range |
47 ~ 63Hz |
|||||
|
Power factor |
PF≧0 98/115VAC, PF≧0 95/230VAC , PF≧0.9 /277VAC, Full load |
|||||
|
Total harmonic distortion |
THD< 20% (@ load ≧50%/115VC,230VAC; @ load ≧75%/277VAC) |
|||||
|
Efficiency |
Vin: 115VAC |
≧90.55% |
≧90.78% |
≧91.28% |
≧91.78% |
|
|
Vin: 230VAC |
≧91.38% |
≧91.56% |
≧92.06% |
≧92.56% |
||
|
AC current |
1.2A |
|||||
|
Inrush current |
Cold start 75A(width=350us measured at 50% l peak)/230Vac |
|||||
|
Leakage current |
< 1 m A |
|||||
|
No load/ standby power consumption |
< 3.6W |
|||||
|
Protection |
Over current |
95 ~ 110% |
||||
|
95 ~ 110% Constant current limit, load abnormal condition can be removed after automatic recovery |
||||||
|
Short circuit |
Burp mode, load abnormal conditions can be removed after automatic recovery |
|||||
|
Over voltage |
13 ~ 16 V |
26 ~ 32 V |
39 ~ 47 V |
52 ~ 63V |
||
|
Turn off the output voltage, restart and resume |
||||||
|
Over temperature |
Turn off the output voltage, restart and resume |
|||||
|
Environment |
Working Temp |
T case=-40 ~ +50℃ |
||||
|
Max.Case Temp |
T case=+90℃ |
|||||
|
Working Humidity |
20 ~ 95% RH, non-condensing |
|||||
|
Storage Temp.,Humidity |
-40 ~ +90℃, 10 ~ 95% RH |
|||||
|
Temp.Coefficient |
±0.03%/℃ (0 ~60℃) |
|||||
|
Vibration |
10~500Hz, 5G 12min./1 cycle, period for 72 min. each along X,Y,Z axes |
|||||
|
Safety & EMC |
Safety standards:UL8750+UL1310 |
|||||
|
Withstand voltage:I/P-O/P:1.88KVac |
||||||
|
Isolation resistance:I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||||||
|
EMC EMISSION:Confirms to FCC |
||||||
