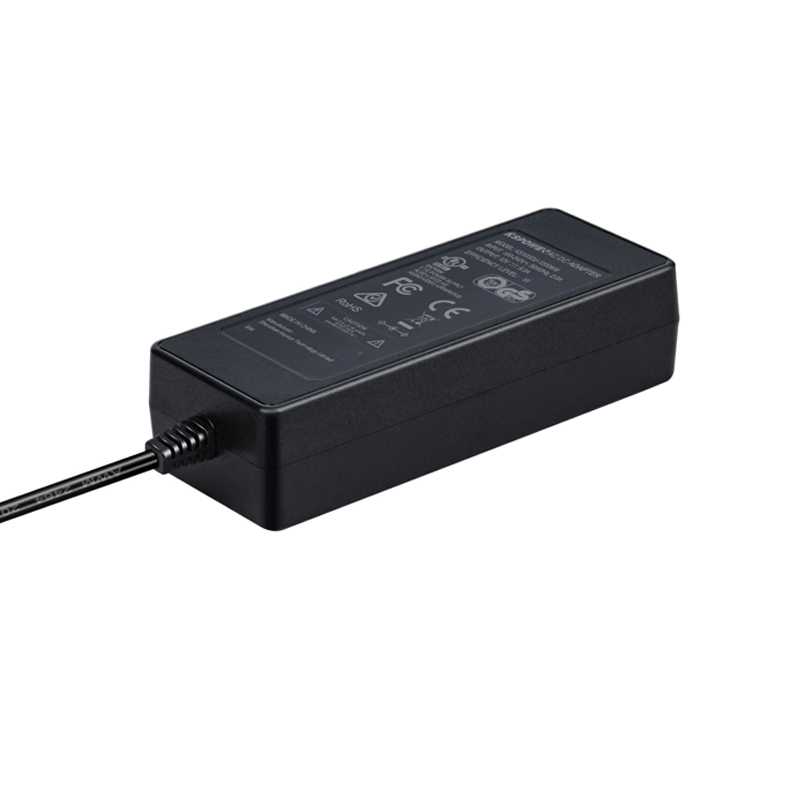

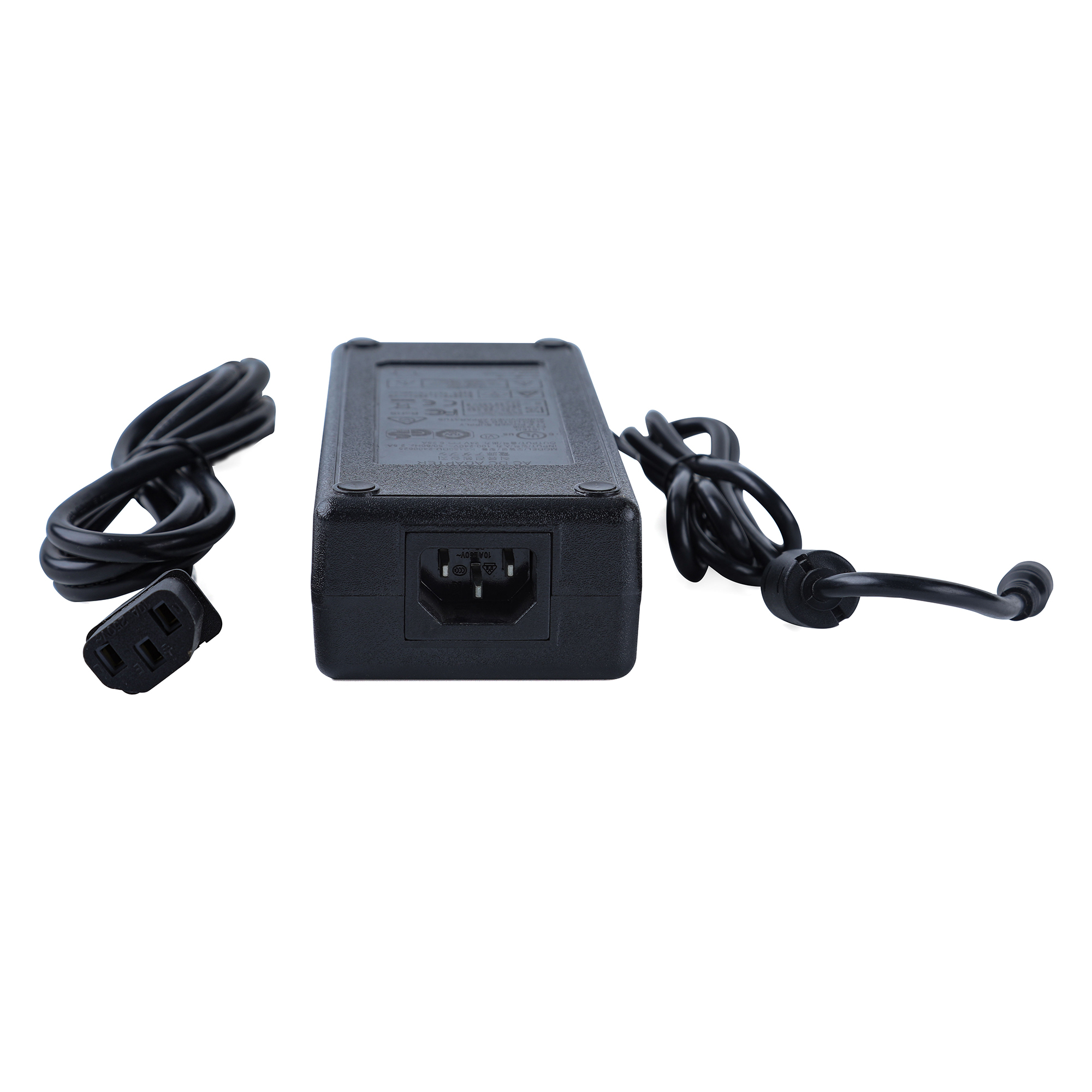

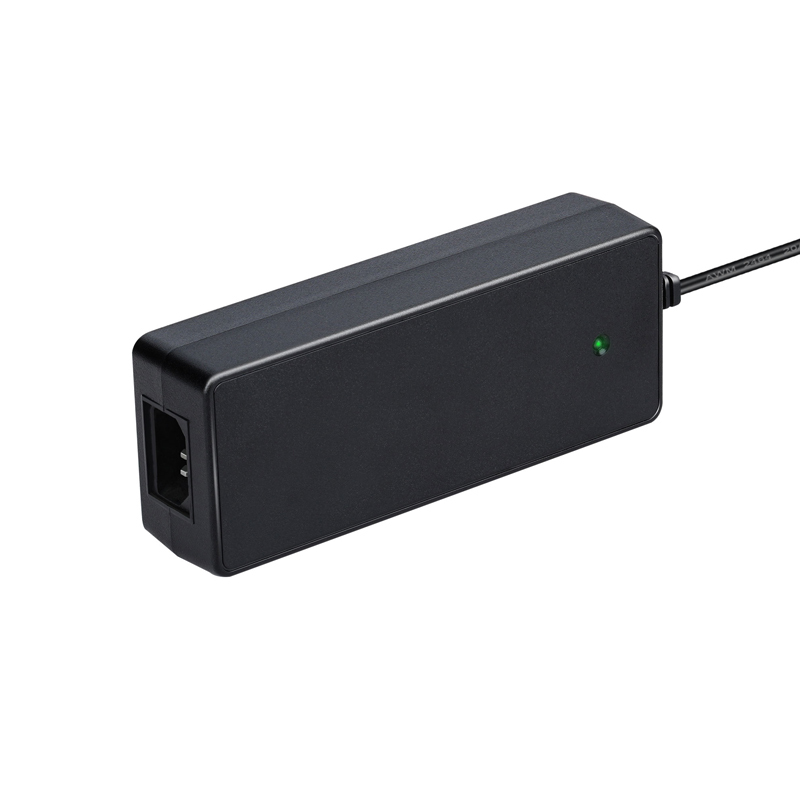

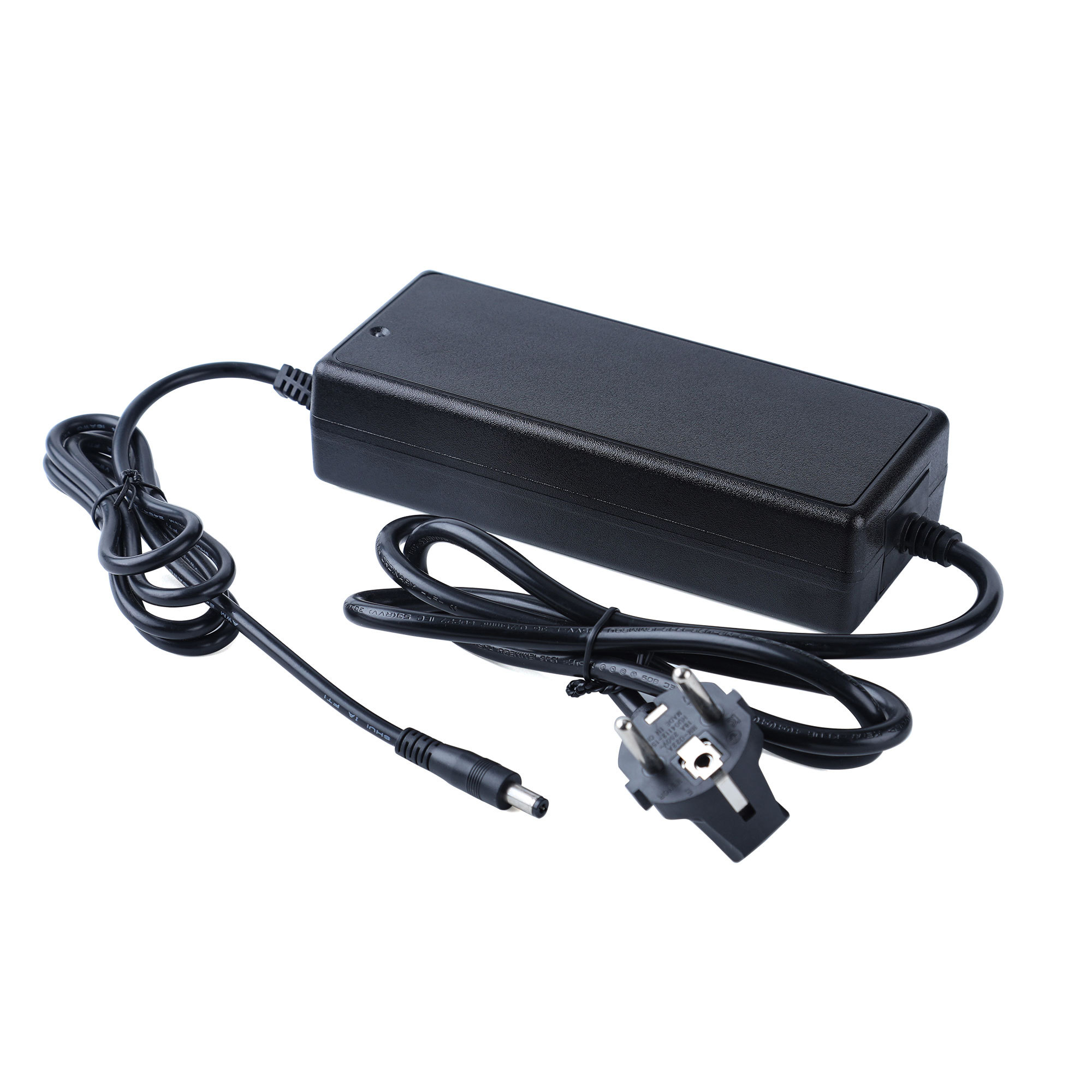

76-100W DC Audio Video Amplifier Power Adapter
The external Power Supply adapter is a high quality, dc output desktop style constant voltage adaptor 76-100W series with green LED indicator light for power on. This universal ac to dc adapter accepts full range 100~240V AC input voltage and lock type DC connector options. The 24v4a ac dc adapter is a class 2 rated and certified for UL/cUL 1310, GS, CE, RCM, KC, PSE,CCC, UL/IEC/EN 62368 60950 safety standards for A.V., LED and I.T.E Home applications. We also provides 3 years warranty for the desktop style external power supply.
Features
◆ Desktop style, up to 100W continuous power
◆ Universal AC input/ Full range
◆ Level VI energy efficiency
◆ Protections: Short circuit / Over voltage / Over current
◆ Class II power (without earth pin): IEC320-C8
Class I power (with earth pin): IEC320-C14, IEC320-C6
◆ Pass LPS (limited power source)
◆ Compact Size, fully enclosed plastic case
◆ LED indicator for power on
◆ 100% full load burn-in test
◆ 3 years Warranty
Specifications
Dimensions LxWxH (ft): 5.019 x 1.968 x 1.246
Dimensions LxWxH (mm): 153 x 60 x 38
Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment: -20℃-85%℃ 5%-95%RH
No load power consumption: below 0.21W
Overshoot: 15% Max. When power supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%
Safety Standards: UL1310, UL60950, CSA22.2, TUV EN60950, AS/NZS 60950, GB4943, J60950(H22), K60950
Safety Approvals: UL CUL CE KC GS SAA RCM CB FCC RoHS
Applications: 3D Printer, Ultrasonic Humidifier, LCD Monitor, LED Lights, HDD Enclosure, CCTV, Car DVR, Digital Photo Frame, Mobile Phone, Laptop, Tablet PC, Refrigerators, Portable DVD, Set Top Box, Radio, Security System Products, Massage Products, Electronics Products etc
|
Mechanical Specification
|
Package
| Package |
Piece/Carton(pcs) |
Dimension/Carton(mm) |
Dimension/Brown Box(mm) |
Piece Weight(KG) |
Gross Weight/Carton (KG) |
| OEM package |
40 |
520 x 500 x 220 |
200 x 120 x 50 |
0.46 |
19.2 |
