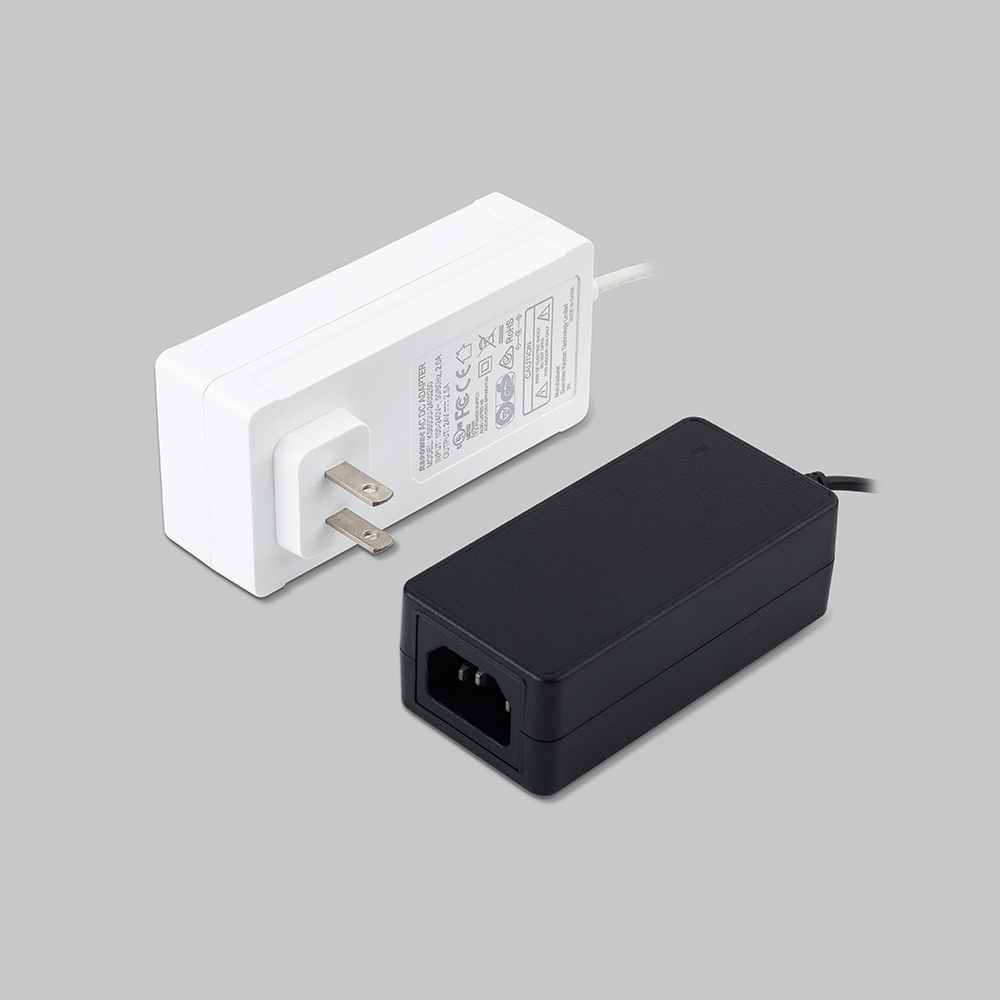

The UL Class 2 power supplies is a highly reliable, constant voltage mode wall-mounted style single-output Ac Dc 48V Power Adaptor series. This Class 2 Power Supply 48V is equipped with an AC plug USA type and Class 2 rated without earth pin, accepting the universal AC input voltage range from 100VAC to 240VAC. Featuring the working efficiency of level VI, low no-load power consumption below 0.3W, the wall plug in Power Supply 48V is compliant with the latest USA energy regulation. Universal AC DC Adapter provides safety protections for over current, over voltage and short circuit.
Features
◆ Wall-mount or desktop style, 48V DC Class 2 Power Supply
◆ Universal AC input/ Full range
◆ Protections: Short circuit / Over voltage / Over current
◆ Class II power (without earth pin); Class I power (with earth pin)
◆ Pass LPS (limited power source)
◆ Compact Size, fully enclosed plastic case
◆ 100% full load burn-in test
◆ 3 years Warranty
Specifications
Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment:-20℃-85%℃ 5%-95%RH
No load power consumption: below 0.15W
Overshoot: 15% Max. When power supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%
Safety Standards: UL1310, UL62368, TUV-GS CE IEC/EN62368, AS/NZS 62368, GB4943, J62368, K60950
Safety Approvals: UL CUL CE KC GS CB FCC RoHS
Applications: 3D Printer, LCD Monitor, LED Lights, CCTV, Digital Photo Frame, Mobile Phone, Tablet PC, Refrigerators, Portable DVD, Set Top Box, Security System Products, Massage Products, Electronics Products etc
|
|
