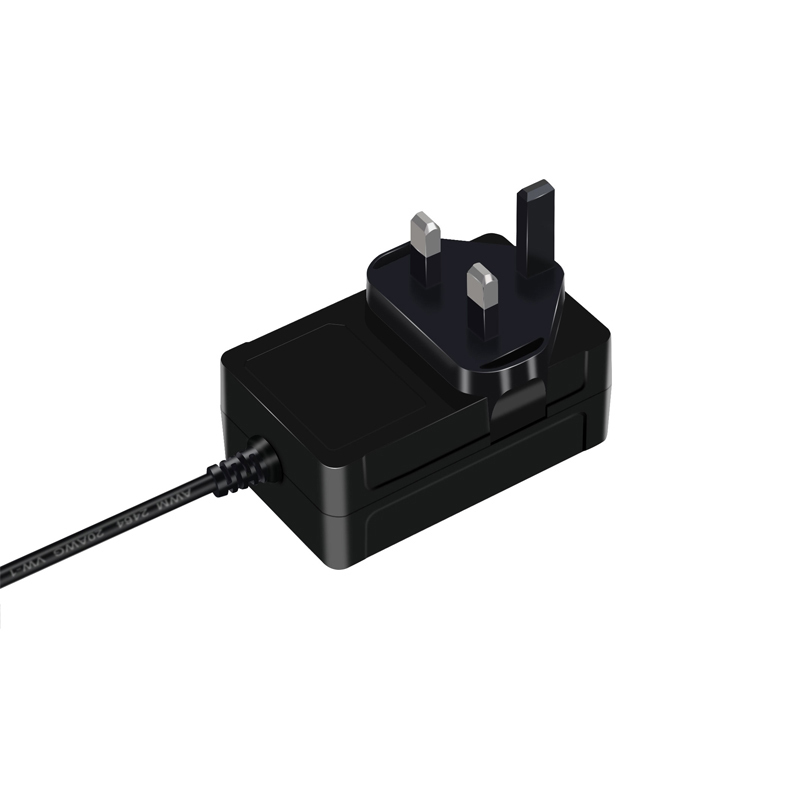

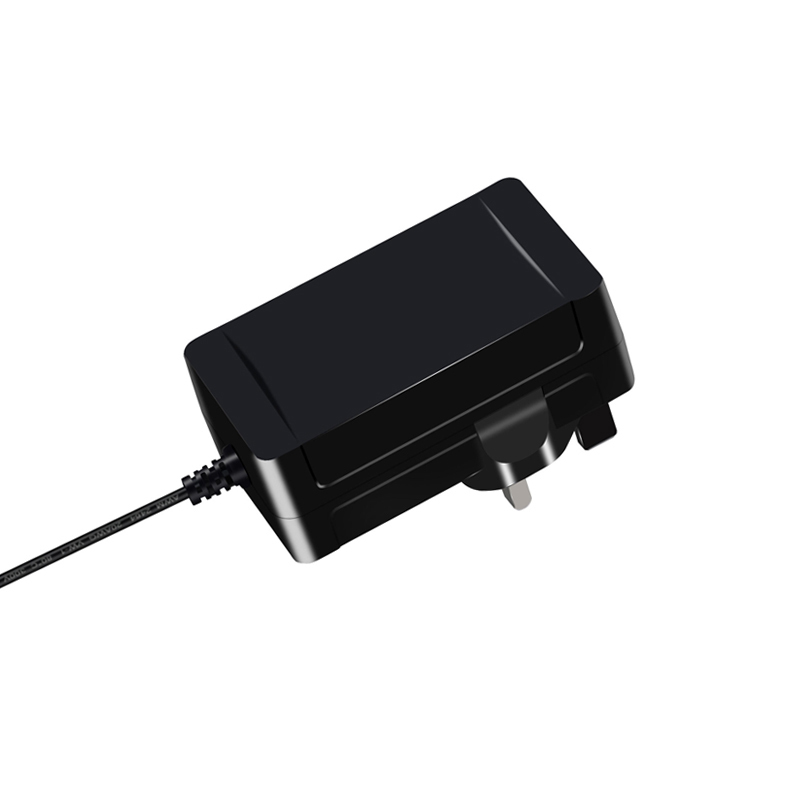

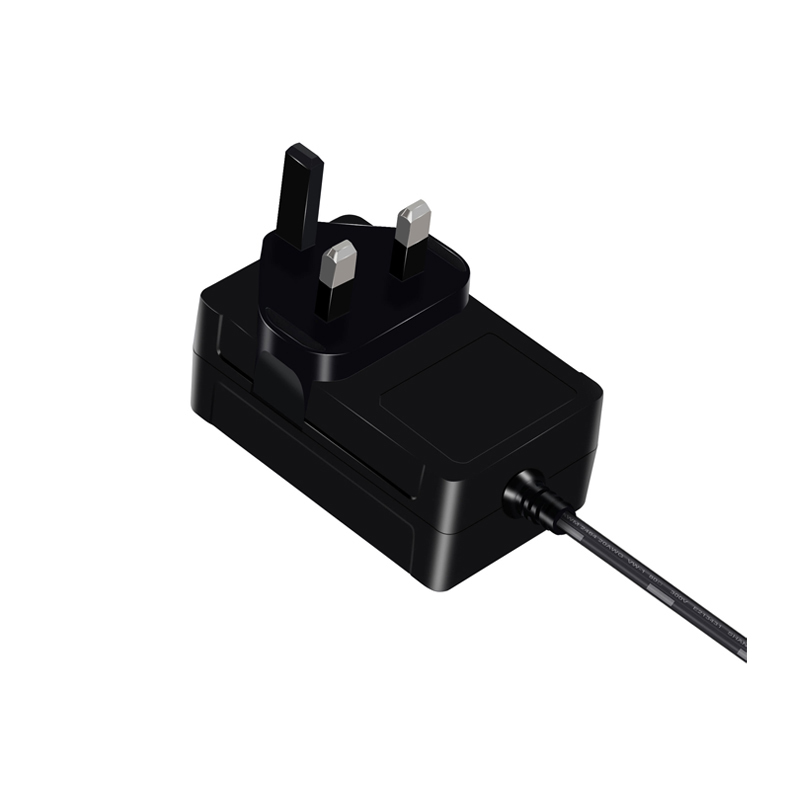

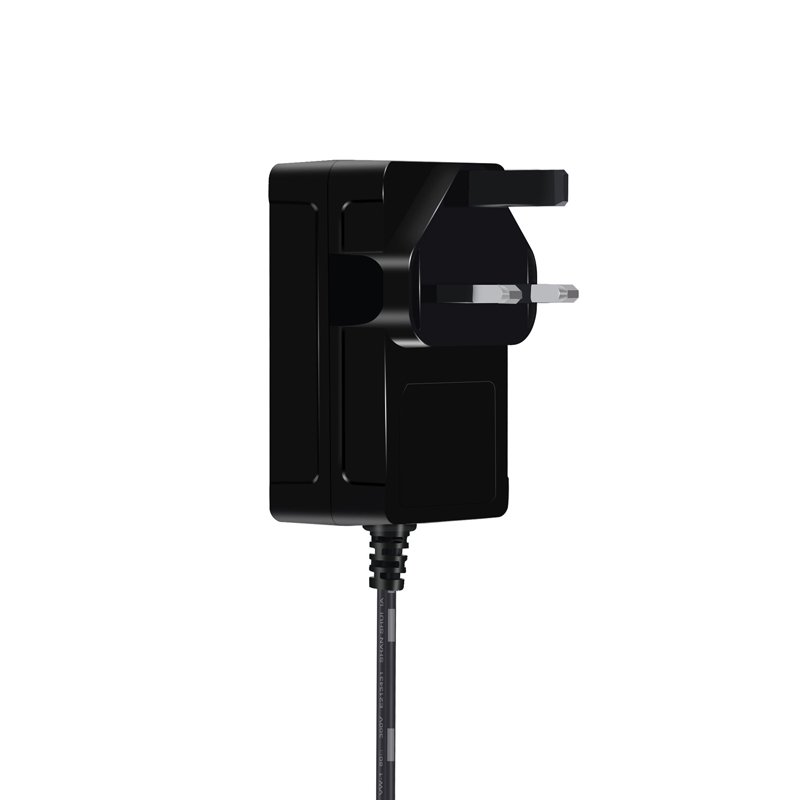

36W Series 230V AC UK Plug Power Adaptor

The power supplies is a highly reliable, 36W constant voltage mode wall-mounted style single-output Ac Dc Power Adaptor series. This safety mark power supply is equipped with an UK AC plug 3 pin type without earth pin, accepting the universal AC input voltage range. Featuring the working efficiency of level VI, low no-load power consumption below 0.1W, wall plug in power supply is compliant with the latest CE UKCA safety approval. Universal AC DC Adapter provides safety protections for over current, over voltage and short circuit.

Features

◆ UK blade wall-mount style, up to 36W continuous power

◆ Universal AC input/ Full range

◆ Level VI energy efficiency

◆ Protections: Short circuit / Over voltage / Over current

◆ Class II power (without earth pin)

◆ Class 2 power units

◆ Pass LPS (limited power source)

◆ Compact Size, fully enclosed plastic case

◆ 100% full load burn-in test

◆ 3 years Warranty

Specifications

Dimensions LxWxH (in): 3.031 x 1.850 x 1.220
Dimensions LxWxH (mm): 77 x 47 x 31
Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment:-20℃-85%℃ 5%-95%RH
No load power consumption: below 0.15W
Overshoot: 15% Max. When power supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%
Safety Standards: UL1310, UL62368, TUV-GS CE IEC/EN62368, AS/NZS 62368, GB4943, J62368, K60950
Safety Approvals: UL CUL CE KC GS SAA RCM CB FCC RoHS
Applications: 3D Printer, LCD Monitor, LED Lights, CCTV, Digital Photo Frame, Mobile Phone, Tablet PC, Refrigerators, Portable DVD, Set Top Box, Security System Products, Massage Products, Electronics Products etc
