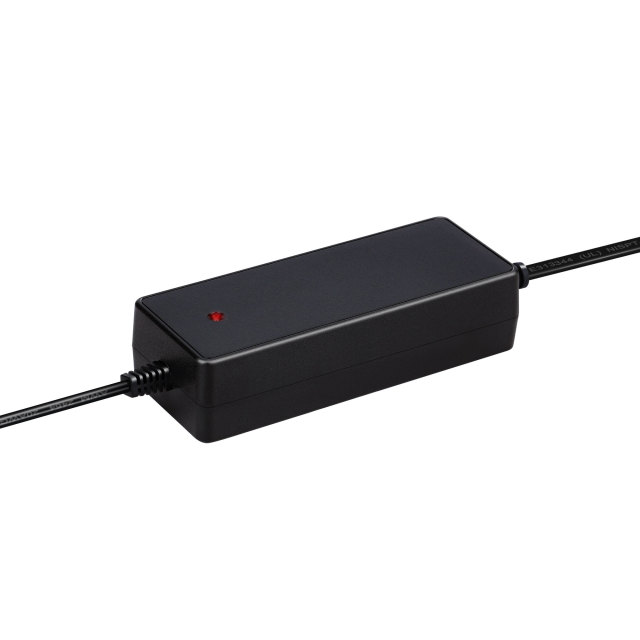

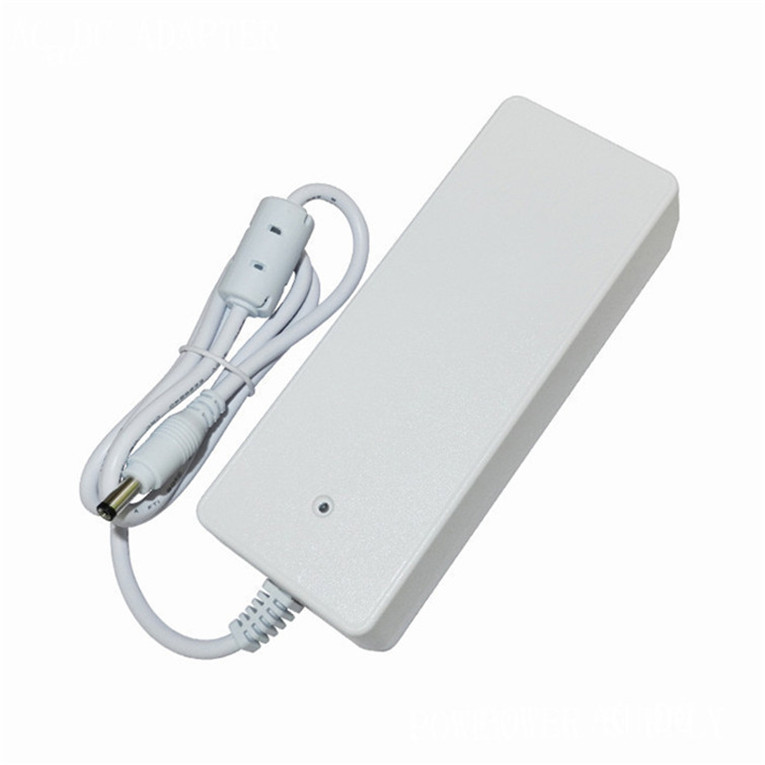

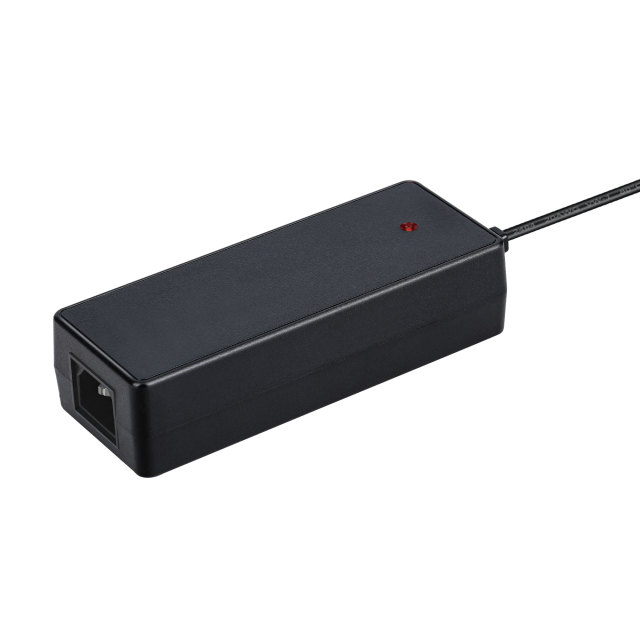

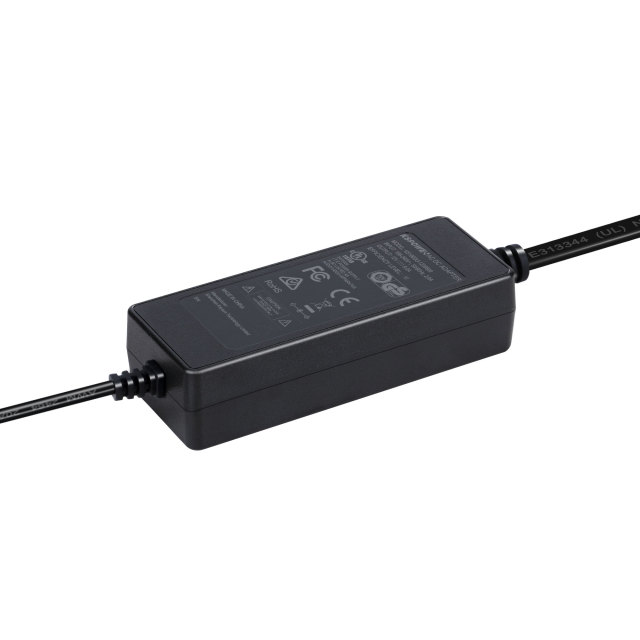

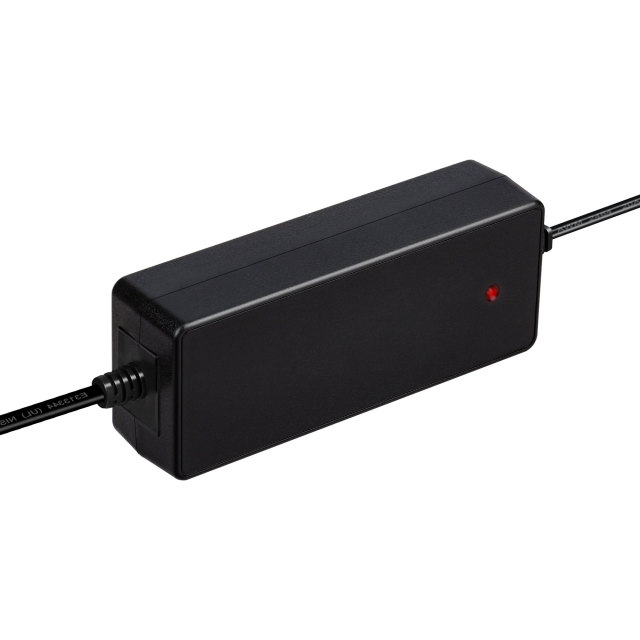

25.2Volt 4 Amp AC-DC External 18650 Battery Charger
The Desktop Type Adapter charger is one high quality, DC 25.2Volt 4000mA constant voltage and constant current mode universal ac input 100vac to 240vac single output power supplies with UL/cUL FCC PSE CE GS RCM safety approvals. The 25.2v charger for 6S li-ion battery is designed to latest Level VI energy efficiency standards and equipped with three standard AC inlets options for IEC320-C6, IEC320-C8 and IEC320-C14. This ac to dc adaptor charger adopts the eco-friendly PC flame retardant plastic housing that the dc Adapter Charger can effectively prevent customers from electric hazard.
Features
◆ Desktop style, charger for Li-ion batteries(lithium iron and lithium manganese)
◆ Constant voltage and constant current mode
◆ Universal AC input/ Full range
◆ Level VI energy efficiency
◆ Protections: Short circuit / Over voltage / Over current
◆ Class II power (without earth pin): IEC320-C8;
ClassⅠpower(with earth pin): IEC320-C6 or IEC320-C14
◆ Pass LPS (limited power source)
◆ Compact Size, fully enclosed plastic case
◆ 2 colors LED indicator for charging status (Green light is full and Red light is charging)
◆ 100% full load burn-in test
◆ 3 years Warranty
Specifications
Dimensions LxWxH (in): 6.024 x 2.362 x 1.496
Dimensions LxWxH (mm): 153 x 60 x 38
Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment: -20℃-85%℃ 5%-95%RH
No load power consumption: below 0.21W
Overshoot: 15% Max. When Power Supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%
Safety Standards: UL1310, UL62368, IEC/EN62368 60950, IEC61558, AS/NZS62368, GB4943, J62368, K60950
Safety Approvals: UL CUL CE KC KCC GS SAA RCM CB FCC PSE CCC RoHS
Green adaptor with charging function
For high surge current equipment
|
Mechanical Specification
|
| Package | Piece/Carton(pcs) | Dimension/Carton(mm) | Dimension/Brown Box(mm) | Piece Weight(KG) | Gross Weight/Carton(KG) |
| OEM package | 40 | 520 x 500 x 220 | 200 x 120 x 50 | 0.45 | 20 |
Model No.: KS100DU-2520400
Brand: KS
Type: Lithium Battery
Charger Type: Electric Charger
Charger Application: Standard Battery
Certification: Kc
Color: Black Or White
Output Type: Dc
Materials: Pc+Abs
Efficiency: Level Vi
Input: 100-240v Ac 50/60hz
Connection: Desktop Type
AC Plugs: Eu/ Us/ Au/ Uk/ Kr/ Cn Plugs Options
DC Cable: 1.2m Optional
DC Jack Size: Male 5.5*2.1mm Optional
Certificates: Ul/Cul, Ce, Fcc, Rcm, Gs, Cb......
Place Of Origin: China
Packaging: a. 1pc per inner brown box b. 40pcs per standard carton c. custom is acceptable d.sample is available
Productivity: 200000
Transportation: Ocean,Air,Express,Land,Others
Place of Origin: China
Supply Ability: 500000
Certificate: ISO9001:2015, UL CE FCC RCM KC RoHS GS...
HS Code: 85044
Port: Shenzhen
Payment Type: T/T,Paypal,Others
Incoterm: FOB,EXW,DDP,DDU,Express Delivery
