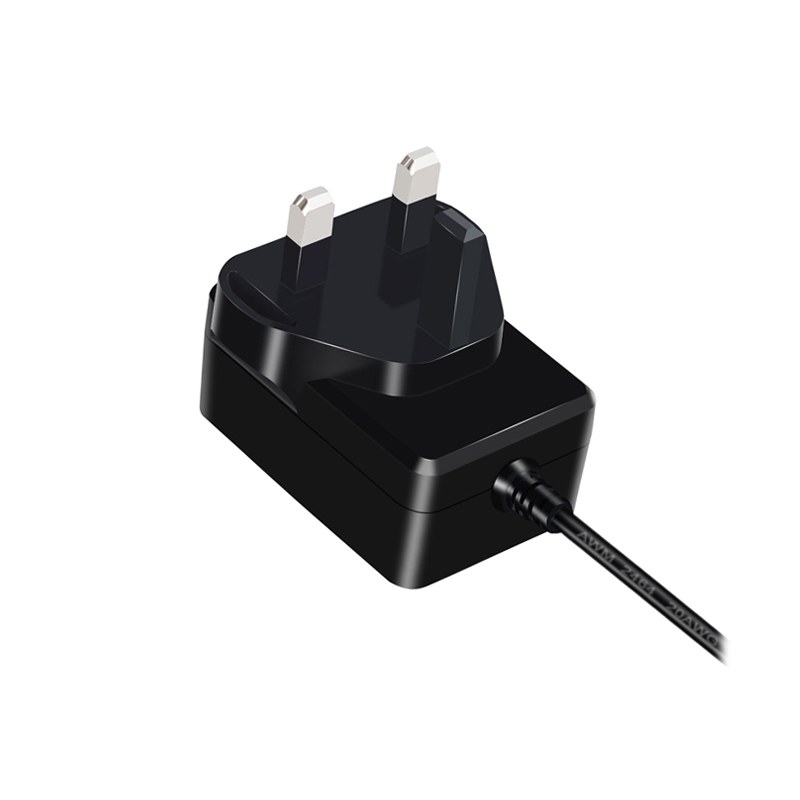

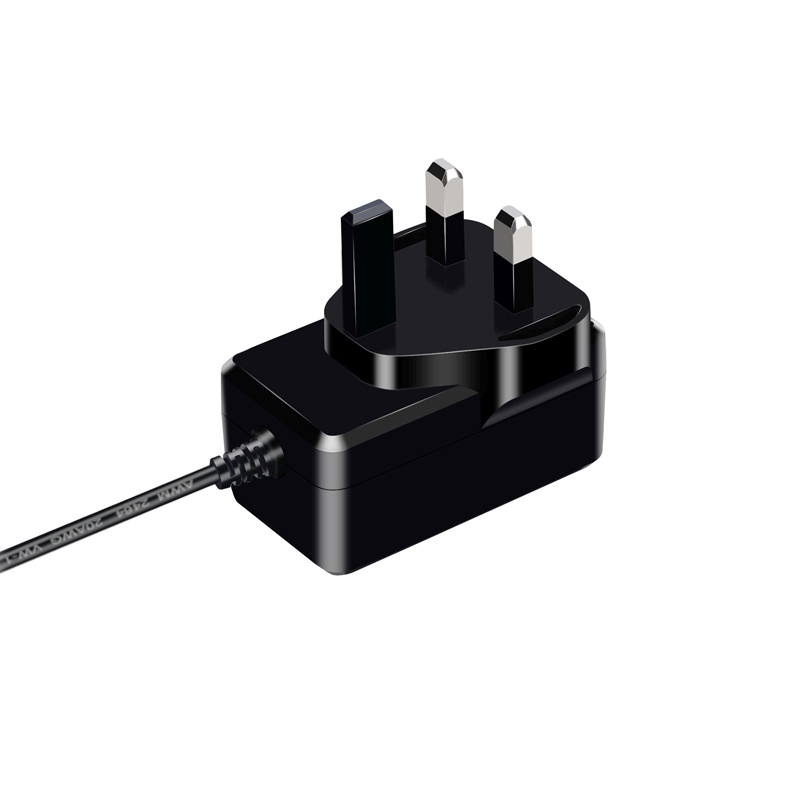

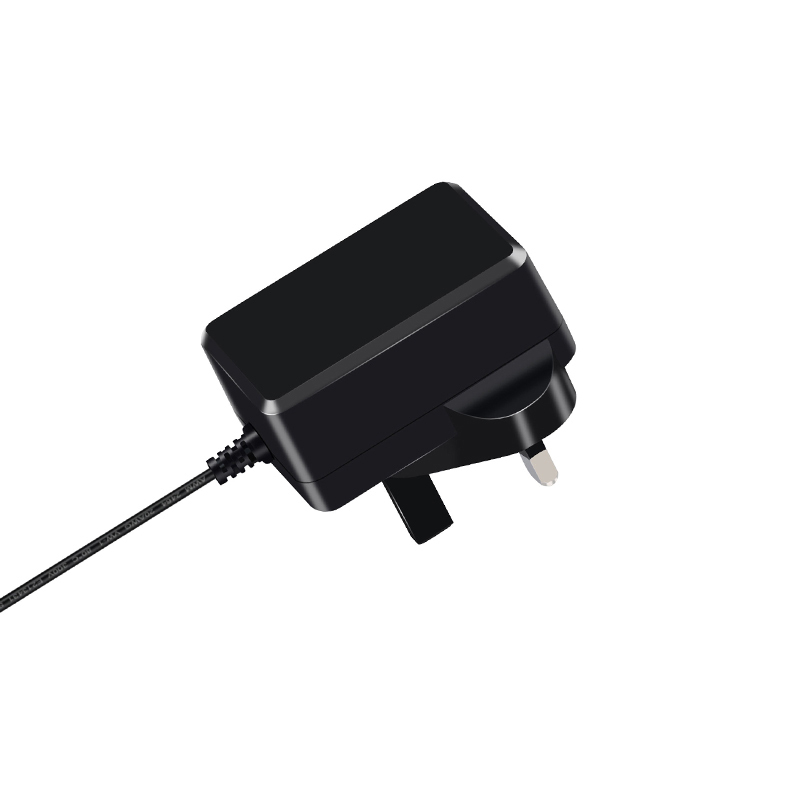

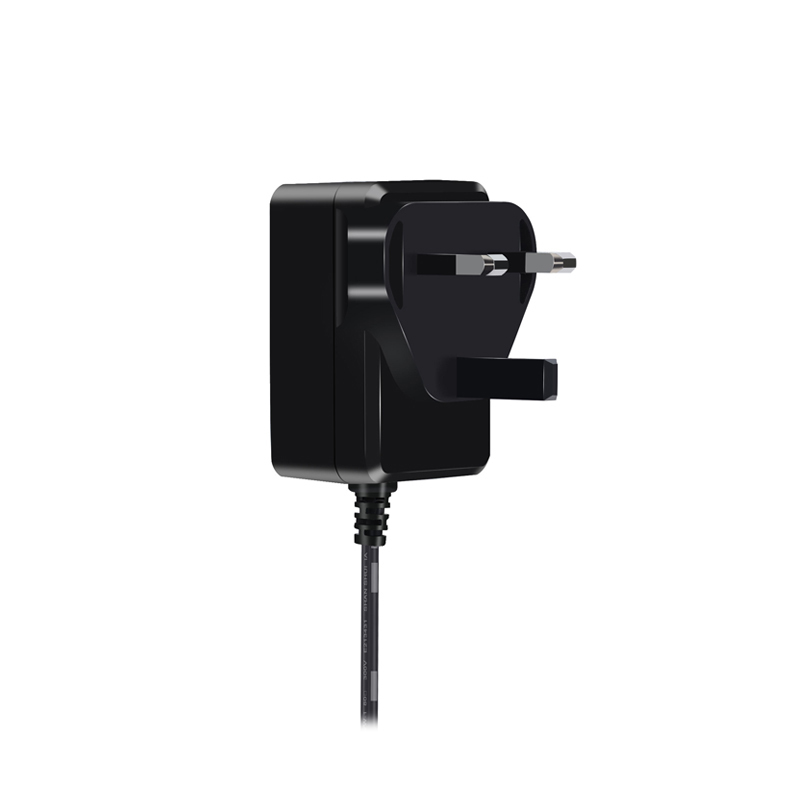

24W Series AC UK Plug Switch Power Converter

No.KS-24CB

Universal AC United Kingdom fixed blade dc power converter. The level VI power supply meets 3 years warranty. The wall plug adapter is Class II rated and provide 5V-36V output voltage options.

option:
12VDC 24W
24VDC 24W
9VDC 18W
5VDC 15W
15VDC 15W
18VDC 18W
36VDC 18W
  • ac dc adapter
  • ac dc adapter
  • ac dc adapter
  • ac dc adapter
Description

The power supplies is a highly reliable, 24W constant voltage mode wall-mounted style single-output Ac Dc Power Adaptor series. This safety mark power supply is equipped with an UK AC plug 3 pin type without earth pin, accepting the universal AC input voltage range. Featuring the working efficiency of level VI, low no-load power consumption below 0.1W, wall plug in power supply is compliant with the latest CE UKCA safety approval. Universal AC DC Adapter provides safety protections for over current, over voltage and short circuit.

Features

◆ UK blade wall-mount style, up to 24W continuous power

◆ Universal AC input/ Full range

◆ Level VI energy efficiency

◆ Protections: Short circuit / Over voltage / Over current

◆ Class II power (without earth pin)

◆ Class 2 power units

◆ Pass LPS (limited power source)

◆ Compact Size, fully enclosed plastic case

◆ 100% full load burn-in test

◆ 3 years Warranty

Specifications

Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment:-20℃-85%℃ 5%-95%RH
No load power consumption: below 0.15W
Overshoot: 15% Max. When power supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%
Safety Standards: UL1310, UL62368, TUV-GS CE IEC/EN62368, AS/NZS 62368, GB4943, J62368, K60950
Safety Approvals: UL CUL CE KC GS SAA RCM CB FCC RoHS
Applications: 3D Printer, LCD Monitor, LED Lights, CCTV, Digital Photo Frame, Mobile Phone, Tablet PC, Refrigerators, Portable DVD, Set Top Box, Security System Products, Massage Products, Electronics Products etc

3

Mechanical Specification
