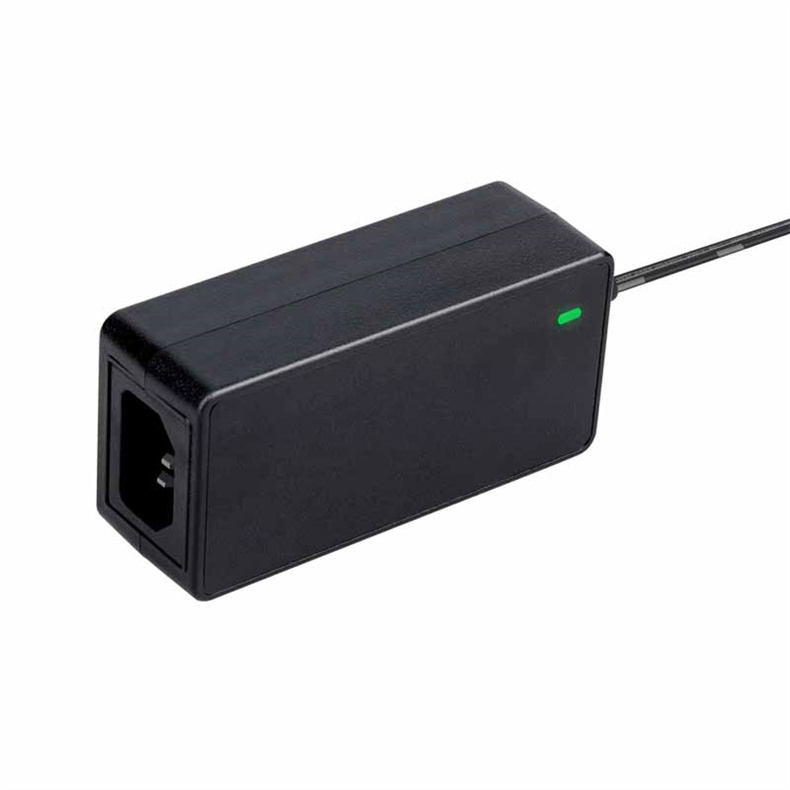

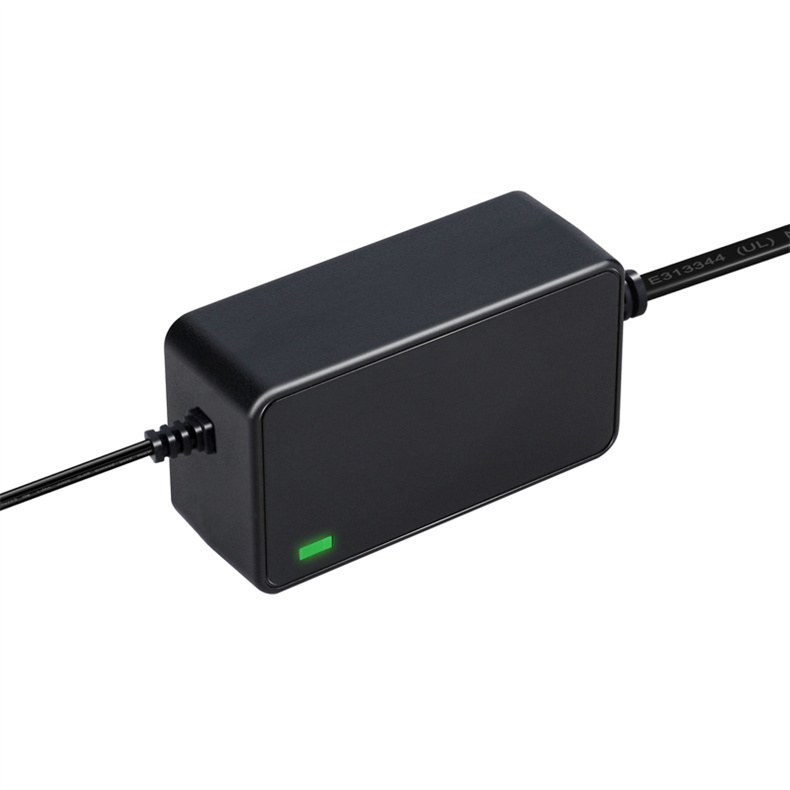

24V/60W AC-DC Power Supply for Thermal Receipt Printers
No.KS65DU-2400250
AC to DC Desktop Power Adapter, Constant Voltage, Level VI AC inlet option IEC320-C8, IEC320-C14, IEC320-C6 with Green led indicator light UL cUL CE FCC PSE CCC KC KCC RCM SAA UKCA RoHS
24V/60W AC-DC Power Supply for Thermal Receipt Printers
The Dryer Plug Adapter is a high quality, black or white 24Volt 2.5Amp dc output 60w desktop style 40W~65W DC Adapters constant voltage series with green LED indication for power on. This power supply smps accepts full range from 100V to 240V AC input voltage and lock type DC connector options. The Power Cord Adapter is a class 2 rated and certified for UL/cUL, GS, CE, PSE, KC, CCC, RoHS safety approvals for I.T.E and 3D Printer applications. The laptop power supply also provides 3 years warranty and equipped with three standard AC inlets options for IEC320-C6, IEC320-C8 and IEC320-C14.
Features
◆ Desktop style, up to 60W continuous power
◆ Universal AC input/ Full range
◆ Level VI energy efficiency
◆ Protections: Short circuit / Over voltage / Over current
◆ Class II power (without earth pin): IEC320-C8;
ClassⅠpower(with earth pin): IEC320-C6 or IEC320-C14
◆ Pass LPS (limited power source)
◆ Compact Size, fully enclosed plastic case
◆ LED indicator for power on
◆ 100% full load burn-in test
◆ 3 years Warranty
Specifications
Dimensions LxWxH (in): 4.488 x 2.007 x 1.220 Dimensions LxWxH (mm): 114 x 51 x 31 Color: Black/ White Input: 100-240V AC±10% 50/60Hz Output: Constant voltage mode and Single output Working Environment: -10℃-40℃ 5%-90%RH Storage Environment: -20℃-85%℃ 5%-95%RH No load power consumption: below 0.1W Overshoot: 15% Max. When power supply at turn on or turn off Cooling method: Natural Cooling down RoHS compliant: Yes Ripple/Noise:<150mV Accuracy:±1% Safety Standards: UL1310, UL62368, IEC/EN62368 60950, IEC61558, AS/NZS62368, GB4943, J62368, K60950 Safety Approvals: UL CUL CE KC KCC GS SAA RCM CB FCC PSE CCC RoHS
Applications: 3D Printer, Ultrasonic Humidifier, LCD Monitor, LED Lights, HDD Enclosure, CCTV, Car DVR, Digital Photo Frame, Mobile Phone, Laptop, Tablet PC, Refrigerators, Portable DVD, Set Top Box, Radio, Security System Products, Massage Products, Electronics Products etc
Mechanical Specification
Package
Package
Piece/Carton(pcs)
Dimension/Carton(mm)
Dimension/Brown Box(mm)
Piece Weight(KG)
Gross Weight/Carton(KG)
OEM package
50
455 x 370 x 170
155 x 85 x 35
0.26
13.5
Model No.: KS65DU-2400250
Brand: KSPOWER
Place Of Origin: China
Output Type: Dc
Connection Method: Desktop, Plug In
Usage: Laptop LED LCD...
Output Type: Single Output
Certification: TUV GS UL CE KC PSE CCC UKCA...
Color: Black / White
Type: OEM
Connection: Desktop
Warranty: 3 Years
Material: PC
Input: 100-240VAC 50-60HZ
Efficiency: Level VI
Protections: OCP OVP SCP
DC Connector: Male 5.5*2.1mm Or Custom
DC Cord: 1.2m Or Custom
AC Plugs: US/ UK/ AU/ EU/ KR/ CN (optional)
Packaging: a. 1pc per inner brown box b. 50pcs per standard carton c. custom is acceptable d.sample is available
Productivity: 500000
Transportation: Ocean,Air,Express,Land,Others
Place of Origin: China
Supply Ability: 500000
Certificate: ISO9001:2015,UL CE FCC RCM GS CB KC PSE CCC...
HS Code: 850440
Port: Shenzhen
Payment Type: T/T,Paypal,Others
Incoterm: FOB,EXW,Express Delivery,DDP,DDU
Selling Units:Piece/Pieces
Package Type:a. 1pc per inner brown box b. 50pcs per standard carton c. custom is acceptable d.sample is available
