KSPOWER’s MP Series combines advanced dimming technology with rugged construction to deliver an industry-leading LED driver solution. With 5-in-1 dimming support—including Triac, ELV, MLV, 0-10V, and PWM/VR—the 2-way 96W design enables maximum flexibility for premium lighting installations. The constant-voltage output options (24V/36V/48V) make it ideal for LED strips, landscape lights, and architectural signage. High power-factor correction (PFC ≥ 0.95), NEMA 3R protection, and UL Class 2 Class P compliance ensure exceptional safety and performance.
Features:
．PWM or Voltage Reduction output Selectable
．2-Ways Universal Dimming Functions optional:
a. 5 in 1 dimming: TRIAC, ELV, MLV, 0-10V, 1-10V, 10V PWM and potentiometer dimming
b. Triac dimming: TRIAC/phase, ELV, MLV dimming
c. 4 in 1 dimming: 0-10V, 1-10V, 10V PWM and potentiometer
d. Non-dimming
． Super compact Aluminum case
． UL/cUL CE Class 2 CLASS P FCC RoHS LPS
． NEMA 3R rated - Indoor or Outdoor Use
． Switch to dual-color temperature LED Strips 100%-0.01% dimming flicker- free
． Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature protection, over power protection and short circuit protection
|
MODEL |
KS-24192a-M# |
KS-36192a-M# |
KS-48192a-M# |
||
|
OUTPUT |
Output Voltage |
24V |
36V |
48V |
|
|
Rated current x Channel |
4.0A x 2 |
2.67A x 2 |
2.0A x 2 |
||
|
Rated power |
192W |
192W |
192W |
||
|
Ripple & Noise (max.) |
250mVp-p |
250mVp-p |
250mVp-p |
||
|
Voltage accuracy |
±2.0% |
±2.0% |
±2.0% |
||
|
Linear adjustment rate |
±0.5% |
±0.5% |
±0.5% |
||
|
Load adjustment rate |
±0.5% |
±0.5% |
±0.5% |
||
|
Start, rise time |
1000ms, 100ms/230VAC, 1100ms, 100ms/115VAC |
||||
|
Hold time |
10ms/115VAC, 230VAC |
||||
|
INPUT |
Voltage range |
100 ~ 277VAC |
|||
|
Frequency range |
47 ~ 63Hz |
||||
|
Power factor |
PF≧0 98/115VAC, PF≧0 95/230VAC , PF≧0.9 /277VAC, Full load |
||||
|
Total harmonic distortion |
THD< 20% (@ load ≧50%/115VC,230VAC; @ load ≧75%/277VAC) |
||||
|
Efficiency |
Vin: 115VAC |
≧91.56% |
≧92.06% |
≧92.56% |
|
|
Vin: 230VAC |
≧94.63% |
≧95.13% |
≧95.63% |
||
|
AC current |
2.35A |
||||
|
Inrush current |
Cold start 75A(width=350us measured at 50% l peak)/230Vac |
||||
|
Leakage current |
< 1 mA |
||||
|
No load/ standby power consumption |
< 4.5W |
||||
|
Protection |
Over current |
95 ~ 110% |
|||
|
95 ~ 110% Constant current limit, load abnormal condition can be removed after automatic recovery |
|||||
|
Short circuit |
Burp mode, load abnormal conditions can be removed after automatic recovery |
||||
|
Over voltage |
26 ~ 32 V |
39 ~ 47 V |
52 ~ 63V |
||
|
Turn off the output voltage, restart and resume |
|||||
|
Over temperature |
Turn off the output voltage, restart and resume |
||||
|
Environment |
Working Temp |
T case=-40 ~ +50℃ |
|||
|
Max.Case Temp |
T case=+90℃ |
||||
|
Working Humidity |
20 ~ 95% RH, non-condensing |
||||
|
Storage Temp.,Humidity |
-40 ~ +90℃, 10 ~ 95% RH |
||||
|
Temp.Coefficient |
±0.03%/℃ (0 ~60℃) |
||||
|
Vibration |
10~500Hz, 5G 12min./1 cycle, period for 72 min. each along X,Y,Z axes |
||||
|
Safety & EMC |
Safety standards:UL8750+UL1310 |
||||
|
Withstand voltage:I/P-O/P:1.88KVac |
|||||
|
Isolation resistance:I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|||||
|
EMC EMISSION:Confirms to FCC |
|||||

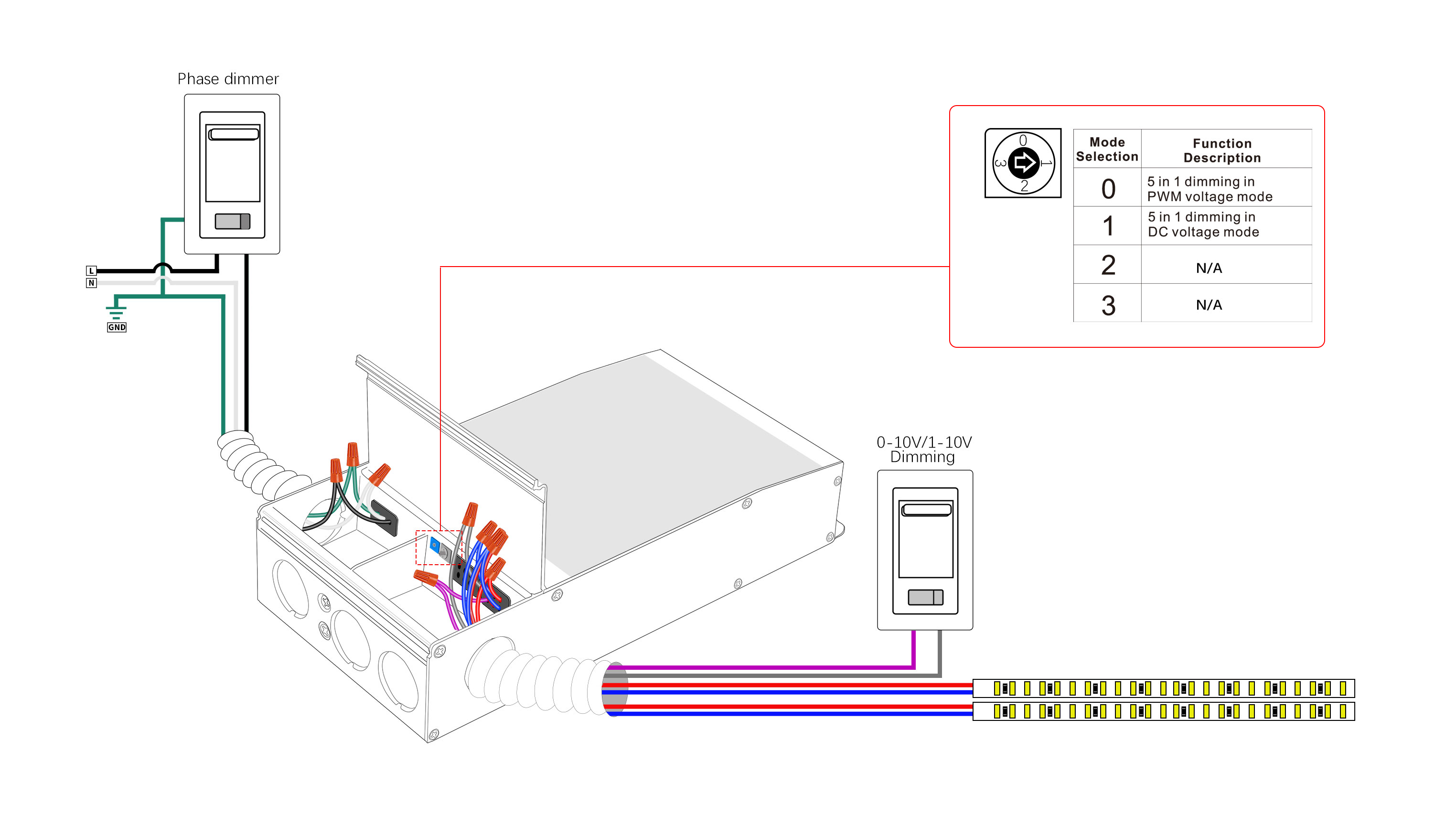

Dimming Connect Drawing (5 in 1 dimming):
Dimension Drawing:
