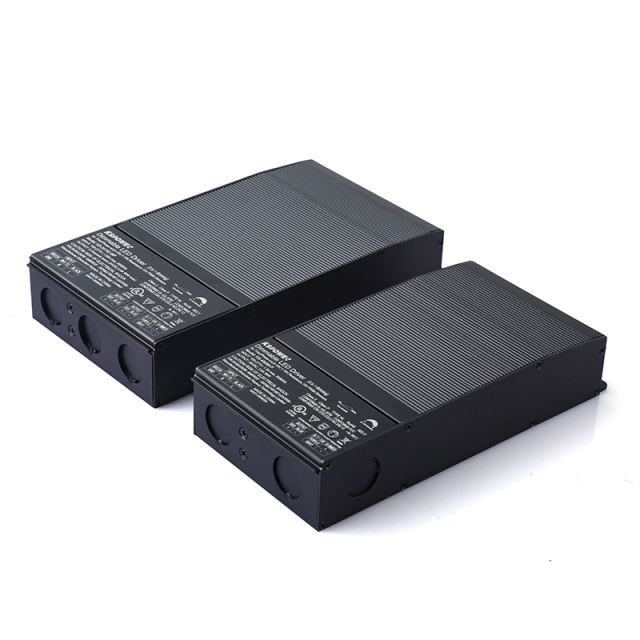

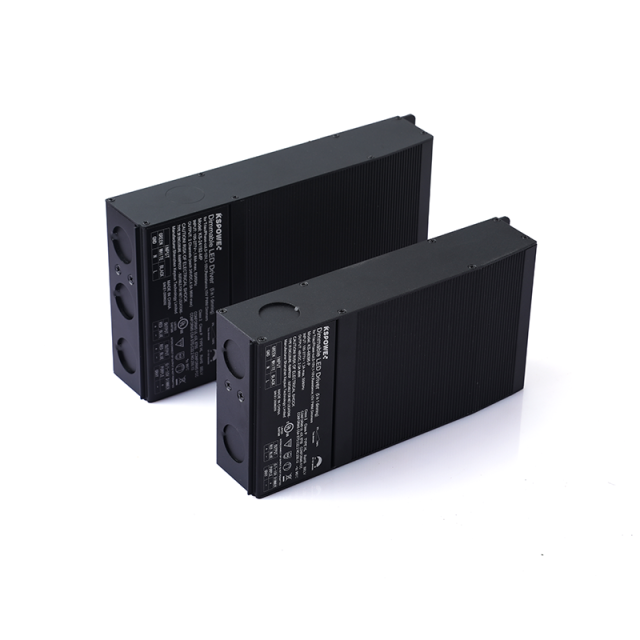

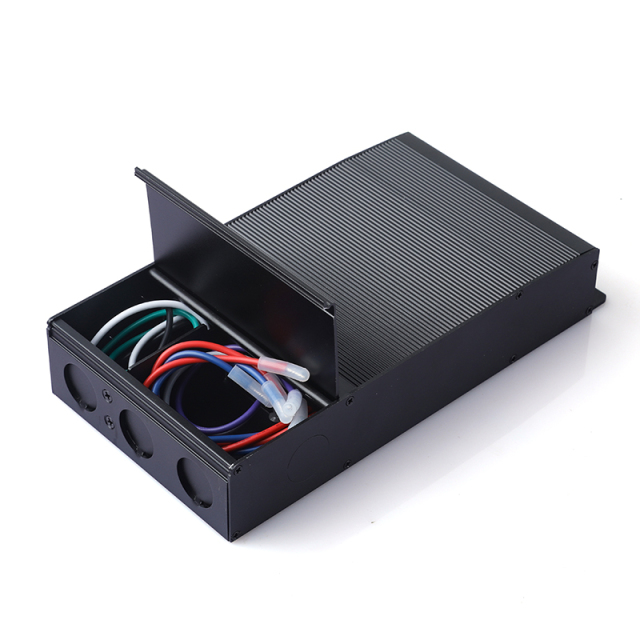

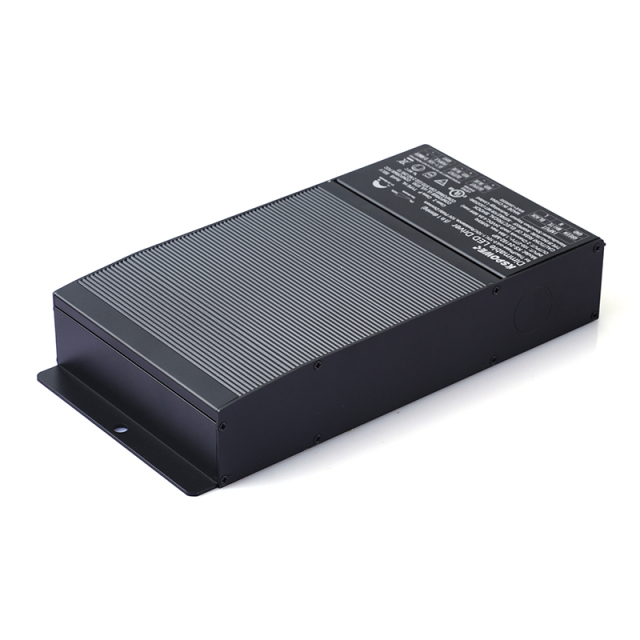

The KSPOWER professional-grade Triac dimmable driver provides clean, stable, flicker-free output ideal for premium residential and commercial lighting. It protects connected LED fixtures with comprehensive safety features and ensures consistent illumination quality. The driver supports multiple power levels up to 240W, allowing it to drive long LED strip runs and medium-scale lighting installations. It integrates easily with standard wall dimmers, offering seamless user control without additional interfaces or modules.
Features:
．PWM or Voltage Reduction output Selectable
．Compatible with Forward phase, Reverse phase, Triac, MLV, ELV Dimmers
． Super compact Aluminum case
． UL/cUL CE CLASS P FCC RoHS LPS
． NEMA 3R rated - Indoor or Outdoor Use
． Switch to color temperature LED Strips 100%-0.01% dimming flicker- free
． Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature protection, over power protection and short circuit protection
|
MODEL |
KS-12240a-T |
KS-24240a-T |
KS-36240a-T |
KS-48240a-T |
||
|
OUTPUT |
Output Voltage |
12V |
24V |
36V |
48V |
|
|
Rated current x Channel |
20A |
10A |
6.66A |
5A |
||
|
Rated power |
240W |
240W |
240W |
240W |
||
|
Ripple & Noise (max.) |
200mVp-p |
250mVp-p |
250mVp-p |
250mVp-p |
||
|
Voltage accuracy |
±2.0% |
±2.0% |
±2.0% |
±2.0% |
||
|
Linear adjustment rate |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
||
|
Load adjustment rate |
±0.5% |
±0.5% |
±0.5% |
±0.5% |
||
|
Start, rise time |
1000ms, 100ms/230VAC, 1100ms, 100ms/115VAC |
|||||
|
Hold time |
10ms/115VAC, 230VAC |
|||||
|
INPUT |
Voltage range |
100 ~ 277VAC |
||||
|
Frequency range |
47 ~ 63Hz |
|||||
|
Power factor |
PF≧0 98/115VAC, PF≧0 95/230VAC , PF≧0.9 /277VAC, Full load |
|||||
|
Total harmonic distortion |
THD< 20% (@ load ≧50%/115VC,230VAC; @ load ≧75%/277VAC) |
|||||
|
Efficiency |
Vin: 115VAC |
≧90.55% |
≧90.78% |
≧91.28% |
≧91.78% |
|
|
Vin: 230VAC |
≧91.38% |
≧91.56% |
≧92.06% |
≧92.56% |
||
|
AC current |
3.0A |
|||||
|
Inrush current |
Cold start 75A(width=350us measured at 50% l peak)/230Vac |
|||||
|
Leakage current |
< 1 m A |
|||||
|
No load/ standby power consumption |
< 3.6W |
|||||
|
Protection |
Over current |
95 ~ 110% |
||||
|
95 ~ 110% Constant current limit, load abnormal condition can be removed after automatic recovery |
||||||
|
Short circuit |
Burp mode, load abnormal conditions can be removed after automatic recovery |
|||||
|
Over voltage |
13 ~ 16 V |
26 ~ 32 V |
39 ~ 47 V |
52 ~ 63V |
||
|
Turn off the output voltage, restart and resume |
||||||
|
Over temperature |
Turn off the output voltage, restart and resume |
|||||
|
Environment |
Working Temp |
T case=-40 ~ +50℃ |
||||
|
Max.Case Temp |
T case=+90℃ |
|||||
|
Working Humidity |
20 ~ 95% RH, non-condensing |
|||||
|
Storage Temp.,Humidity |
-40 ~ +90℃, 10 ~ 95% RH |
|||||
|
Temp.Coefficient |
±0.03%/℃ (0 ~60℃) |
|||||
|
Vibration |
10~500Hz, 5G 12min./1 cycle, period for 72 min. each along X,Y,Z axes |
|||||
|
Safety & EMC |
Safety standards:UL8750+UL1310 |
|||||
|
Withstand voltage:I/P-O/P:1.88KVac |
||||||
|
Isolation resistance:I/P-O/P:100MΩ/500VDC/25℃/70%RH |
||||||
|
EMC EMISSION:Confirms to FCC |
||||||
Dimming Connect Drawing:
Dimension Drawing:
