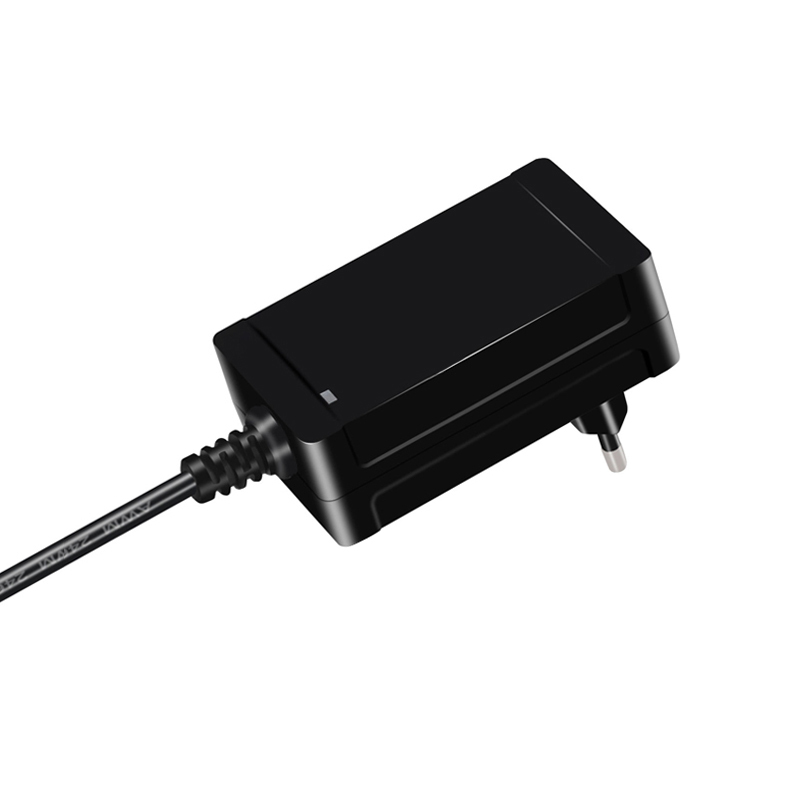

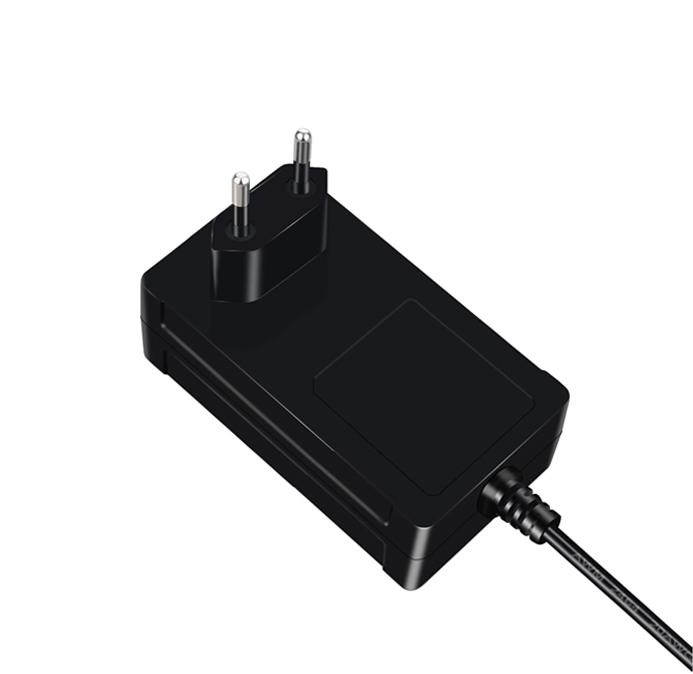

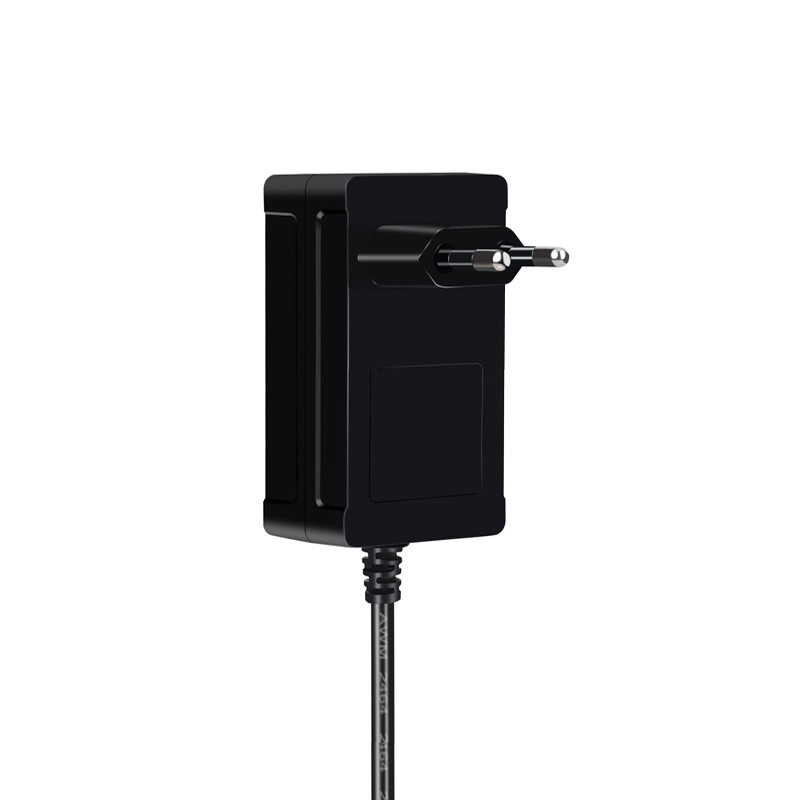

AC to DC wall mount EU fixed plug power adapter
Class II power supply, High efficient energy-saving
UL cUL Class 2 CE FCC PSE CCC KC KCC RCM SAA UKCA RoHS
The power supplies is a highly reliable, 36W constant voltage mode wall-mounted style single-output Ac Dc Power Adaptor series. This safety mark power supply is equipped with an EU AC plug 2 pin type without earth pin, accepting the universal AC input voltage range. Featuring the working efficiency of level VI, low no-load power consumption below 0.1W, wall plug in power supply is compliant with the latest Europe ERP energy regulation. Universal AC DC Adapter provides safety protections for over current, over voltage and short circuit.
Features
◆ EU blade wall-mount style, up to 36W continuous power
◆ Universal AC input/ Full range
◆ Level VI energy efficiency
◆ Protections: Short circuit / Over voltage / Over current
◆ Class II power (without earth pin)
◆ Class 2 power units
◆ Pass LPS (limited power source)
◆ Compact Size, fully enclosed plastic case
◆ 100% full load burn-in test
◆ 3 years Warranty
Specifications
Dimensions LxWxH (in): 3.031 x 1.850 x 1.220
Dimensions LxWxH (mm): 77 x 47 x 31
Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment:-20℃-85%℃ 5%-95%RH
No load power consumption: below 0.15W
Overshoot: 15% Max. When power supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%
Safety Standards: UL1310, UL62368, TUV-GS CE IEC/EN62368, AS/NZS 62368, GB4943, J62368, K60950
Safety Approvals: UL CUL CE KC GS SAA RCM CB FCC RoHS
Applications: 3D Printer, LCD Monitor, LED Lights, CCTV, Digital Photo Frame, Mobile Phone, Tablet PC, Refrigerators, Portable DVD, Set Top Box, Security System Products, Massage Products, Electronics Products etc
|
Mechanical Specification
|
| Package | Piece/Carton(pcs) | Dimension/Carton(mm) | Dimension/Brown Box(mm) | Piece Weight(KG) | Gross Weight/Carton(KG) |
| OEM package | 60 | 360 x 352 x 250 | 68 x 55 x 115 | 0.15 | 10 |
Model No.: KS39DU-1500200CE
Brand: KSPOWER
Place Of Origin: China
Output Type: Dc
Connection Method: Plug In
Usage: Laptop
Output Type: Single Output
Certification: Tuv
Color: Black
Type: Oem
Connection: Plug In
Warranty: 3 Years
Material: Pc
Input: 100-240vac 50-60hz
Efficiency: Level Vi
Protections: Ocp Ovp Scp
DC Connector: Male 5.5*2.1mm Or Custom
DC Cord: 1.2m Or Custom

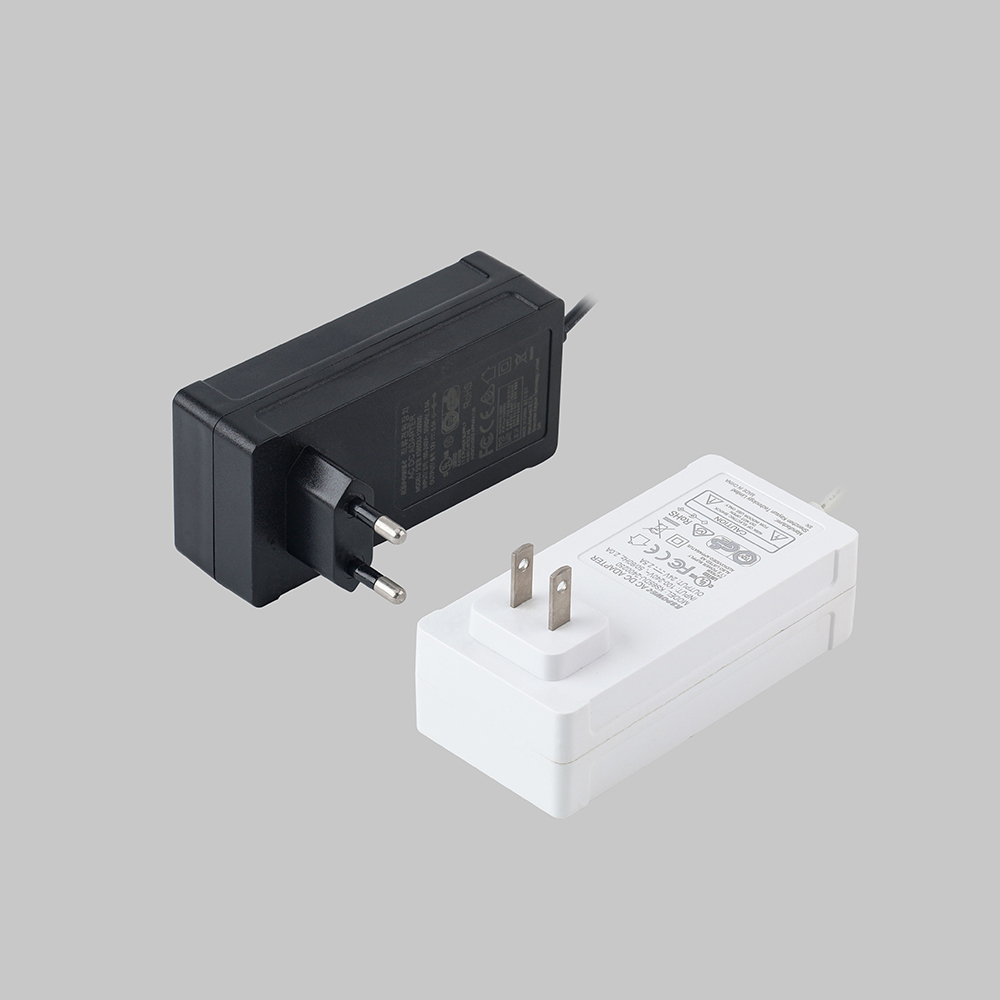

AC Plugs: Us/ Uk/ Au/ Eu/ Kr/ Cn (Optional)
Packaging: a. 1pc per inner brown box b. 60pcs per standard carton c. custom is acceptable d. sample is available
Productivity: 200000
Transportation: Ocean,Air,Express,Land,Others
Place of Origin: China
Supply Ability: 500000
Certificate: ISO9001:2015,UL CE FCC RCM KC GS CB PSE CCC...
HS Code: 850440
Port: Shenzhen
Payment Type: T/T,Paypal,Others
Incoterm: FOB,EXW,Express Delivery,DDP,DDU
