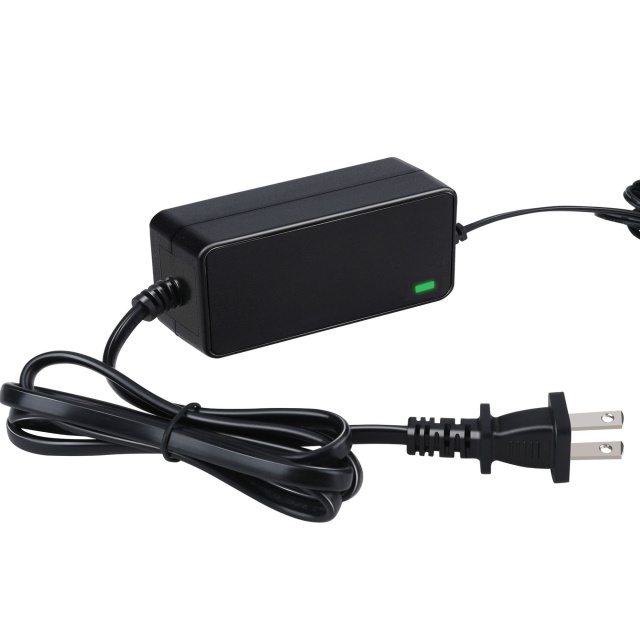

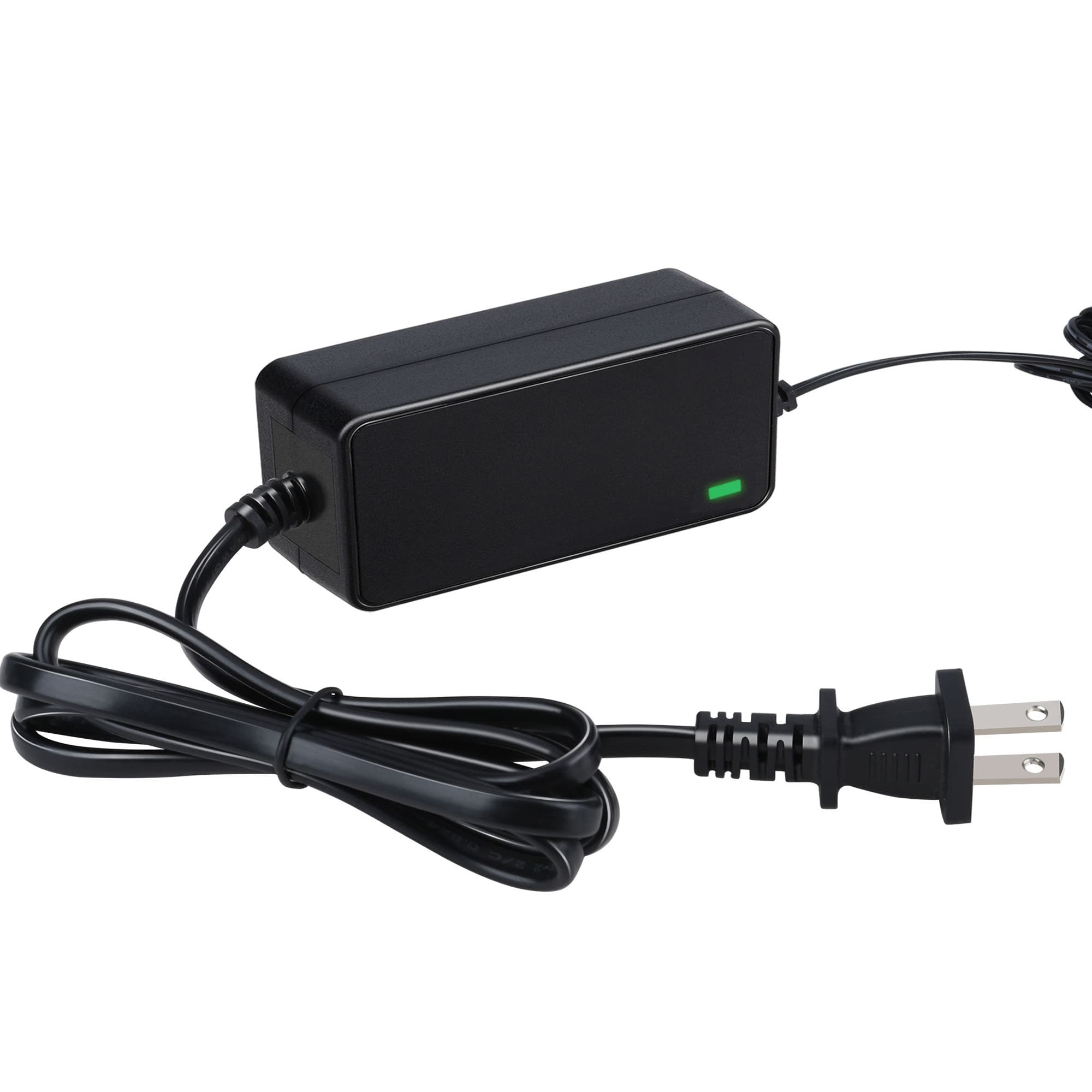

The Class 2 power adapter is a wall mount or desktop style, universal ac input 100vac to 240vac single output 14V DC Class 2 power supplies with UL/cUL FCC PSE CE GS RCM safety approvals. The led power supply is designed to meet US DoE Level VI energy efficiency standards and equipped with three standard AC inlets options for IEC320-C6, IEC320-C8 and IEC320-C14. This Power Adaptor laptop adopts the eco-friendly PC flame retardant plastic housing that the adapters can effectively prevent customers from electric hazard.
Features
◆ Wall mount or Desktop style, 14V Class 2 Power Supply
◆ Universal AC input/ Full range
◆ Level VI energy efficiency
◆ Protections: Short circuit / Over voltage / Over current
◆ Class II power (without earth pin): IEC320-C8;
ClassⅠpower(with earth pin): IEC320-C6 or IEC320-C14
◆ Pass LPS (limited power source)
◆ Compact Size, fully enclosed plastic case
◆ LED indicator for power on
◆ 100% full load burn-in test
◆ 3 years Warranty
Specifications
Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment: -20℃-85%℃ 5%-95%RH
No load power consumption: below 0.21W
Overshoot: 15% Max. When power supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%
Safety Standards: UL1310, UL62368, CSA22.2, TUV-GS CE IEC/EN62368, AS/NZS 62368, GB4943, J62368, K60950
Safety Approvals: UL CUL CE KC GS SAA RCM CB FCC RoHS
Applications: 3D Printer, Ultrasonic Humidifier, LCD Monitor, LED Lights, HDD Enclosure, CCTV, Car DVR, Digital Photo Frame, Mobile Phone, Laptop, Tablet PC, Refrigerators, Portable DVD, Set Top Box, Radio, Security System Products, Massage Products, Electronics Products etc
|
|
Model No.: ZF120A-1405000
Brand: KSPOWER
Place Of Origin: China
Output Type: Dc
Connection Method: Desktop
Usage: Laptop LED LCD...
Output Type: Single Output
Certification: TUV GS UL CE...
Color: Black
Type: OEM
Connection: Desktop
Warranty: 3 Years
Material: PC
Input: 100-240VAC 50-60HZ
Efficiency: Level VI
Protections: OCP OVP SCP
DC Connector: Male 5.5*2.1mm Or Custom
DC Cord: 1.2m Or Custom
AC Plugs: US/ UK/ AU/ EU/ KR/ CN (optional)
Packaging: a. 1pc per inner brown box b. 50pcs per standard carton c. custom is acceptable d.sample is available
Productivity: 200000
Transportation: Ocean,Air,Express,Land,Others
Place of Origin: China
Supply Ability: 500000
Certificate: ISO9001:2015, UL CE FCC GS KC RoHS CB ...
HS Code: 850440
Port: Shenzhen
Payment Type: T/T,Paypal,Others
Incoterm: FOB,EXW,Express Delivery,DDP
