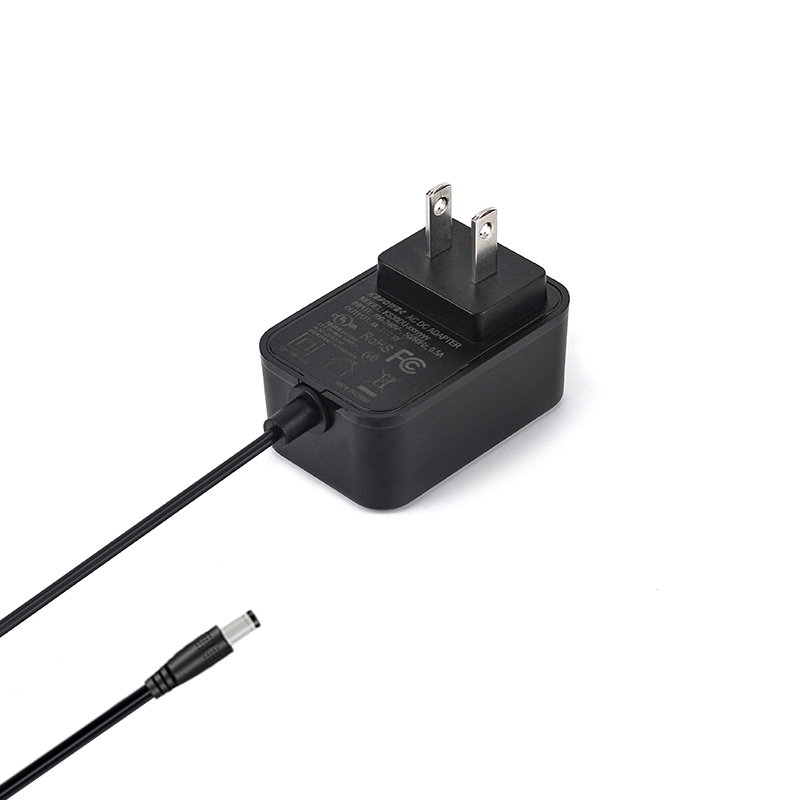

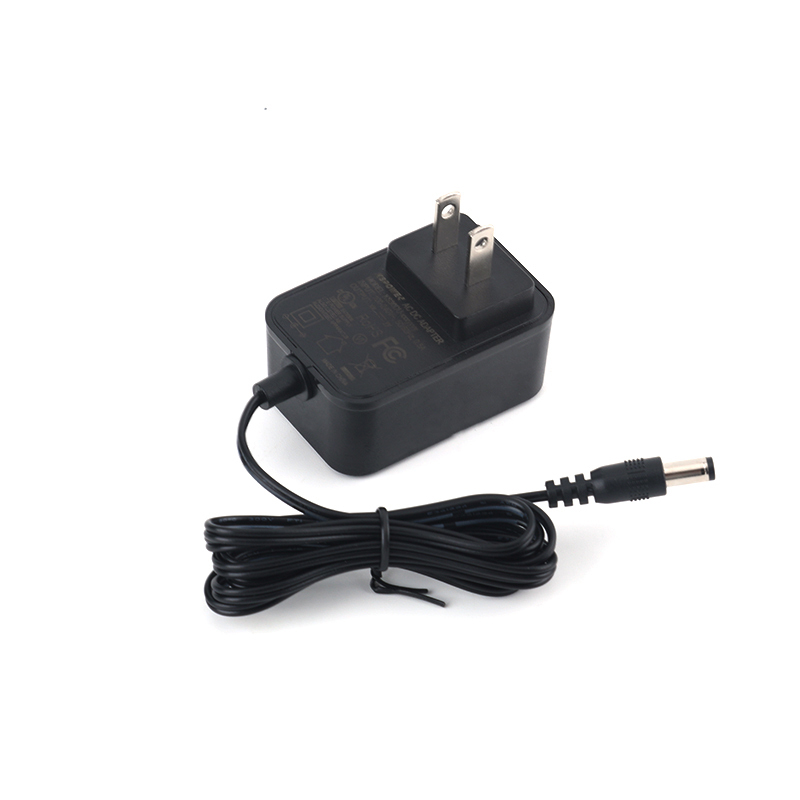

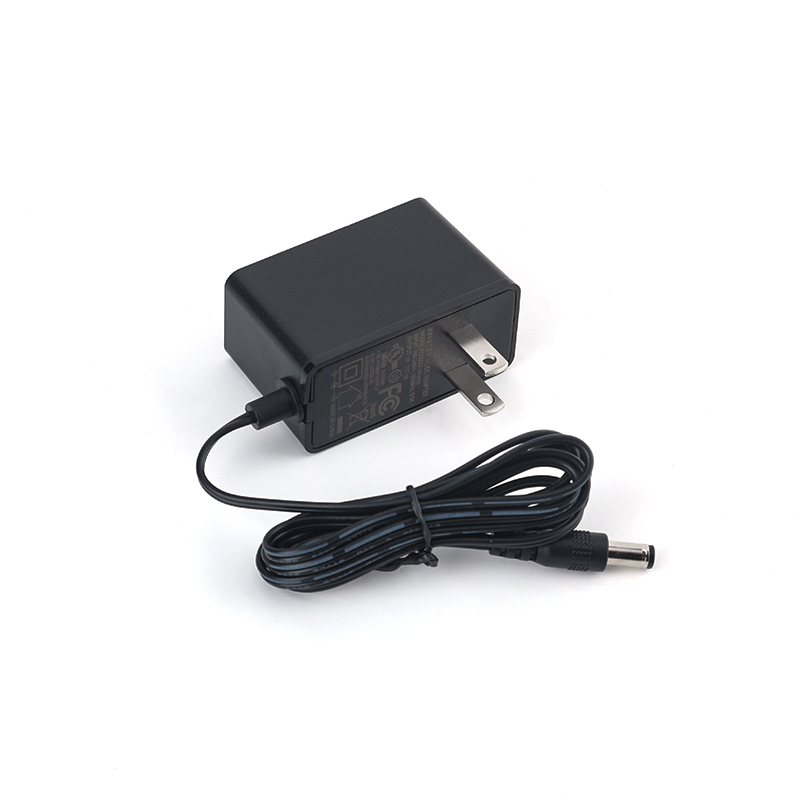

12W North America fixed plug power adapter converter. DOE/CEC Level VI power supply, provide narrow and square type, the us plug in adaptor is limited power source (LPS) rated and Class 2 power unit.
The power supplies is a highly reliable, 12W constant voltage mode wall-mounted style single-output Ac Dc Power Adaptor series. This safety mark power supply is equipped with an USA AC plug 2 pin type without earth pin, accepting the universal AC input voltage range. Featuring the working efficiency of level VI, low no-load power consumption below 0.1W, wall plug in power supply is compliant with the latest UL FCC Class 2 safety approval. Universal AC DC Adapter provides safety protections for over current, over voltage and short circuit.
Features
◆ US blade wall-mount style, up to 12W continuous power
◆ Universal AC input/ Full range
◆ Level VI energy efficiency
◆ Protections: Short circuit / Over voltage / Over current
◆ Class II power (without earth pin)
◆ Class 2 power units
◆ Pass LPS (limited power source)
◆ Compact Size, fully enclosed plastic case
◆ 100% full load burn-in test
◆ 3 years Warranty
Specifications
Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment:-20℃-85%℃ 5%-95%RH
No load power consumption: below 0.15W
Overshoot: 15% Max. When power supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%
Safety Standards: UL1310, UL62368, TUV-GS CE IEC/EN62368, AS/NZS 62368, GB4943, J62368, K60950
Safety Approvals: UL CUL CE KC GS SAA RCM CB FCC RoHS
Applications: 3D Printer, LCD Monitor, LED Lights, CCTV, Digital Photo Frame, Mobile Phone, Tablet PC, Refrigerators, Portable DVD, Set Top Box, Security System Products, Massage Products, Electronics Products etc
|
Mechanical Specification
|
