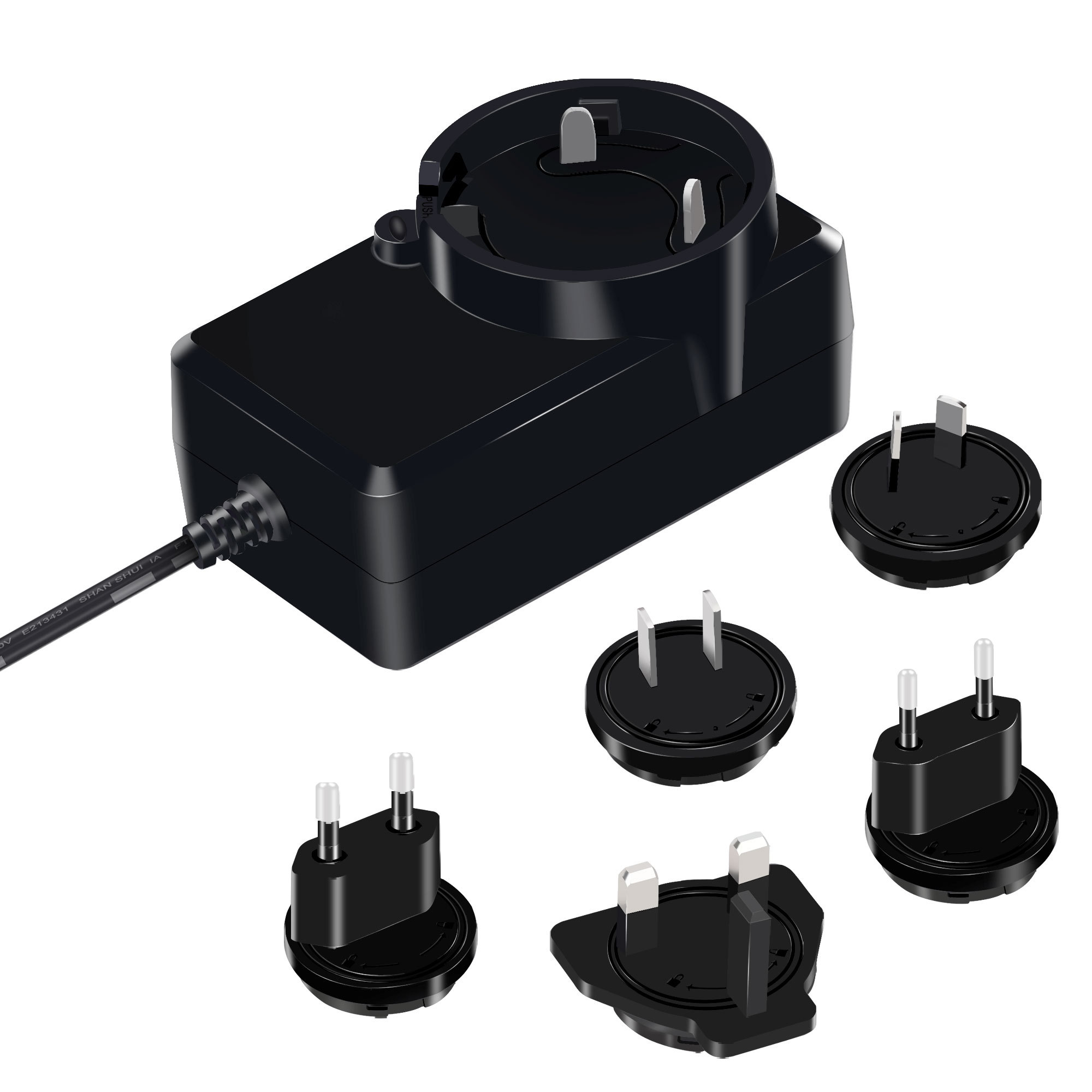

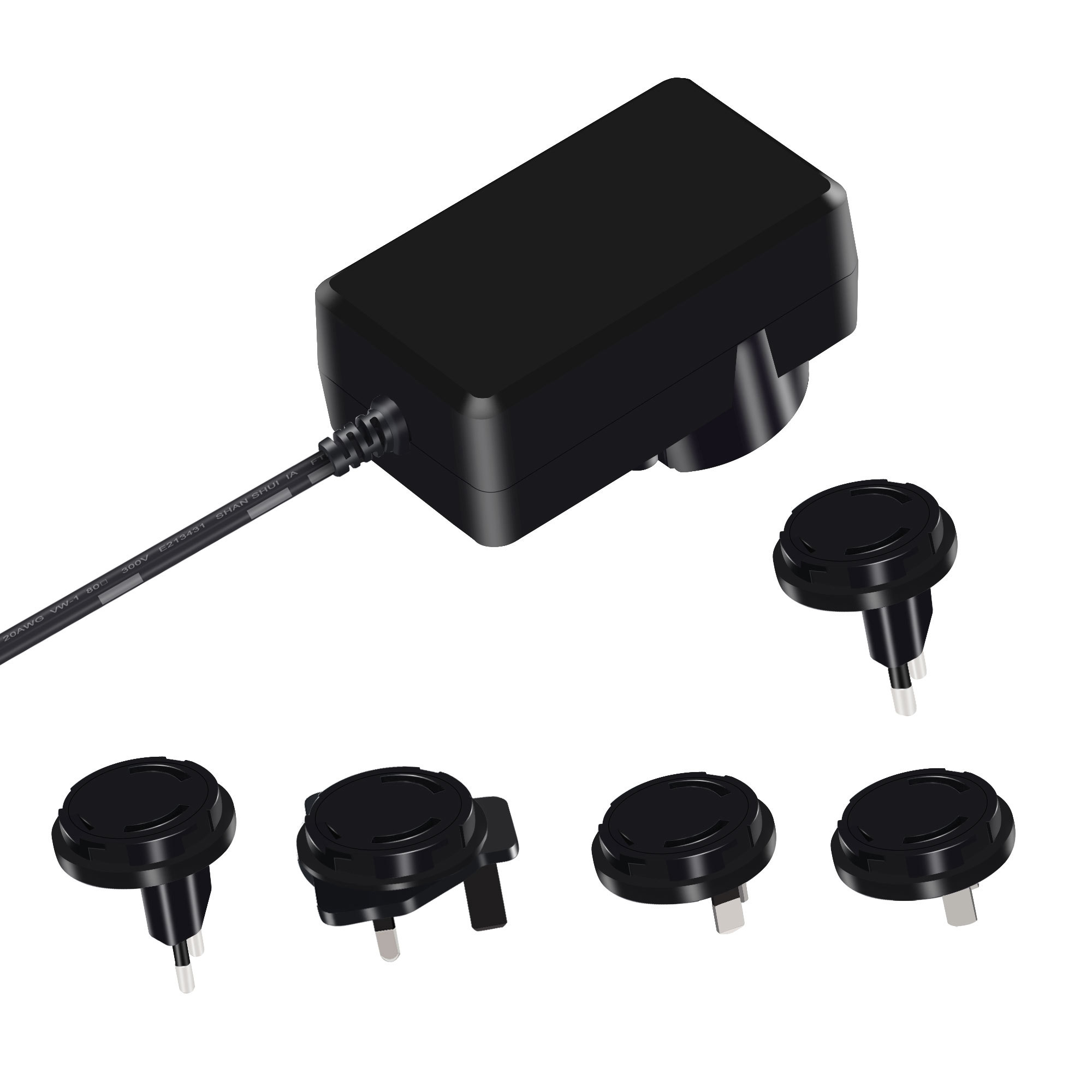

The interchangeable AC plugs power adaptor is a highly reliable, 12W wall-mounted style single-output green adaptor series, which is compact and convenient for carry on. This converter plug Power Adaptors is equipped with interchangeable AC plugs (4 types, including European type, USA type, U.K. type and Australian type) that makes it very suitable for businessmen to use in the major countries around the globe. The Wall plug Power Adaptor is a class II power unit without earth holes, accepting the universal AC input range from 100VAC to 240VAC. The interchangeable power adapter is approved for international global safety standards.
Features
◆ Up to 12W continuous power
◆ Interchangeable AC plugs (plugs kit sold separately)
◆ Global certificates
◆ Universal AC input/ Full range
◆ Level VI energy efficiency
◆ Protections: Short circuit / Over voltage / Over current
◆ Class II power (without earth pin)
◆ Compact Size, fully enclosed plastic case
◆ 100% full load burn-in test
◆ 3 years Warranty
Specifications
Dimensions LxWxH (in): 2.953 x 1.575 x 1.181
Dimensions LxWxH (mm): 75 x 40 x 30
Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment: -20℃-85%℃ 5%-95%RH
No load power consumption: below 0.15W
Overshoot: 15% Max. When Power Supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%
AC Plug Options: for North America(US Blade), Europe(EU Blade), the United Kingdom(UK Blade), Australia(AU Blade) and China(CN Blade)
Safety Standards: UL62368, UL60950, CSA22.2, TUV EN60950, AS/NZS 60950, GB4943, J60950(H22), K60950
Safety Approvals: UL CUL CE KC GS SAA RCM CB FCC RoHS
|
Mechanical Specification
|
Package
| Package |
Piece/Carton(pcs) |
Dimension/Carton(mm) |
Dimension/Brown Box(mm) |
Piece Weight(KG) |
Gross Weight/Carton(KG) |
| OEM package |
50 |
420 x 310 x 290 |
80 x 57 x 132 |
0.21 |
12.5 |
