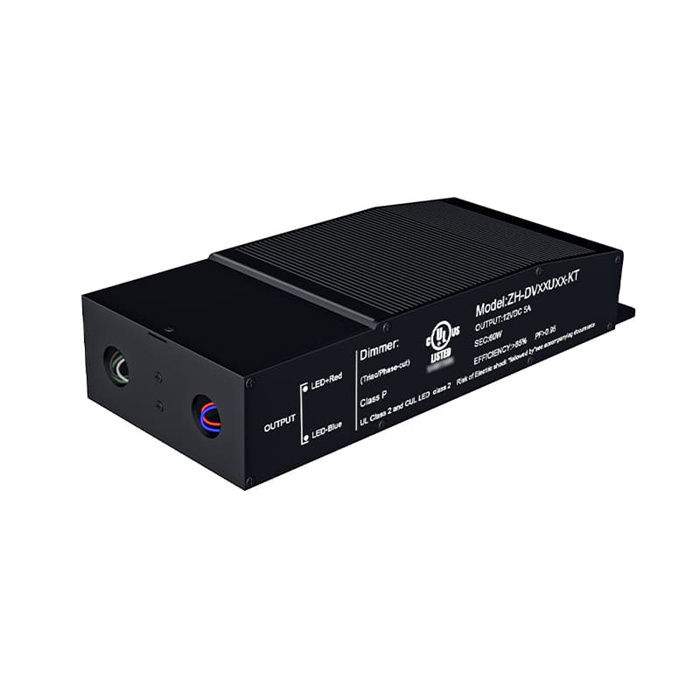

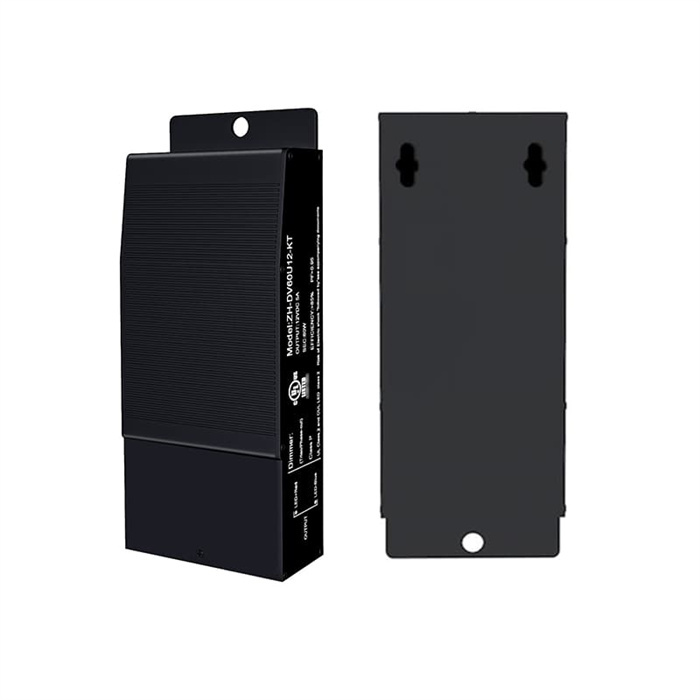

The 12v waterproof led driver is one 120VAC Input voltage, 60watt 12VDC 5000mA output North America waterproof led driver certified to meet UL8750 Class 2 safety approvals. The led Power Supply use low profile aluminum case that included 2 knock-outs to enable easy installation makes LED Driver the power solutions for led tape/strip, modules, LED bar light. Featuring US Level VI energy efficiency standards of up to 90% and higher, Nema 3R environment Protection Rating, Non Dimmable LED Driver power supply with junction box can outdoor use and provide outstanding high PFC peformance.
Features:
． Super compact ALUMINUM CASE
． UL8750, Class 2
． Nema 3R - Outdoor Use
． Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature
protection, over power protection and short circuit protection
Input Voltage 120V AC
Output Voltage 12V DC
Operating Temperature -20℃-45℃(-4℉-101℉)
Mode Constant voltage
Dimensions (inch) 6.97"×2.76"×1.38"
Weight 720g
12/24-Volt DC Installation Guide
Highly efficient, stabilized, constant voltage DC power of LED lighting
General
- This driver is to be installed in accordance with Article 450 of the National Electric Code and installed by qualified and professional electrician;
- Please make sure the driver is installed with adequate ventilation around it to allow for heat dissipation.
Before Installing
- Power must be disconnected at all times during installation.
- Observe polarity of the 12/24-volt DC output. Failure to observe polarity could damage LED lighting.
- Total wattage of all LED fixtures used must not exceed the maximum watt rating of the power supply.
Input Connections / Grounding

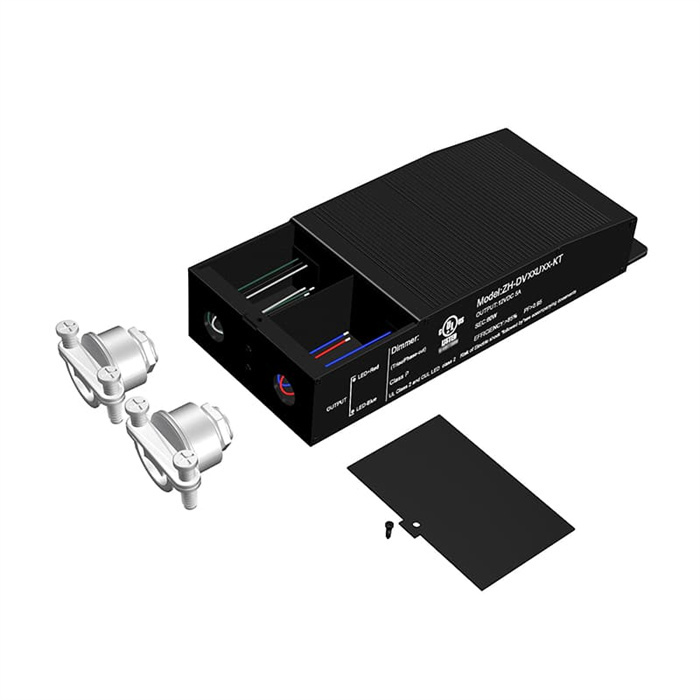

- Use the clamp connectors to secure cords and wires.
- Route and secure wires so they will not be pinched or damaged.
- All wiring must be in accordance with national and local electrical codes, low voltage Class 2 circuit. For wire runs inside of walls, use properly certified CL2 or better cabling and appropriate mounting hardware. If you are unclear as to how to install and wire this product, contact a qualified electrician. Failure to install this device properly may result in electrical shock or fire.
- Do not install Class 2 low voltage wiring in the same runs as AC main power. If AC and low voltage wires cross, keep them at 90-degree angles.
- The driver case MUST be grounded in accordance with the N.E.C. Connect the ground wire to the driver green wire.
Output Wire
- Bring the wires of the light fixture through the other clamp connector and connect them to the driver wires - positive to the red (+) wire and negative to the blue (-) wire
Package
| Package | Piece/Carton(pcs) | Dimension/Carton(mm) | Dimension/Brown Box(mm) | Piece Weight(KG) | Gross Weight/Carton(KG) |
| OEM package | 25 | 420 x 250 x 245 | 199 x 90 x 75 | 0.72 | 19 |
Model No.: ZH-60U12-KT
Brand: KSPOWER
Warranty Period (years): 5-Year
Lighting Solution Service: Lighting And Circuitry Design, Project Installation
Place Of Origin: China
Output Power: 1 - 50w
Output Type: Single
Power Supply Mode: Constant Voltage Source
Output Type: Dc Output
Efficiency: 90%
Material: Aluminum Case
Protections: Ocp Ovp Scp
Input: 120vac
Dimensions LxWxH (in): 6.97”×2.76”×1.38”
Power Factor@Max. Load: >0.95
Warranty: 5 years
Certification: UL cUL Class 2 Class P
Envir. Protection Rating: NEMA 3R / IP65

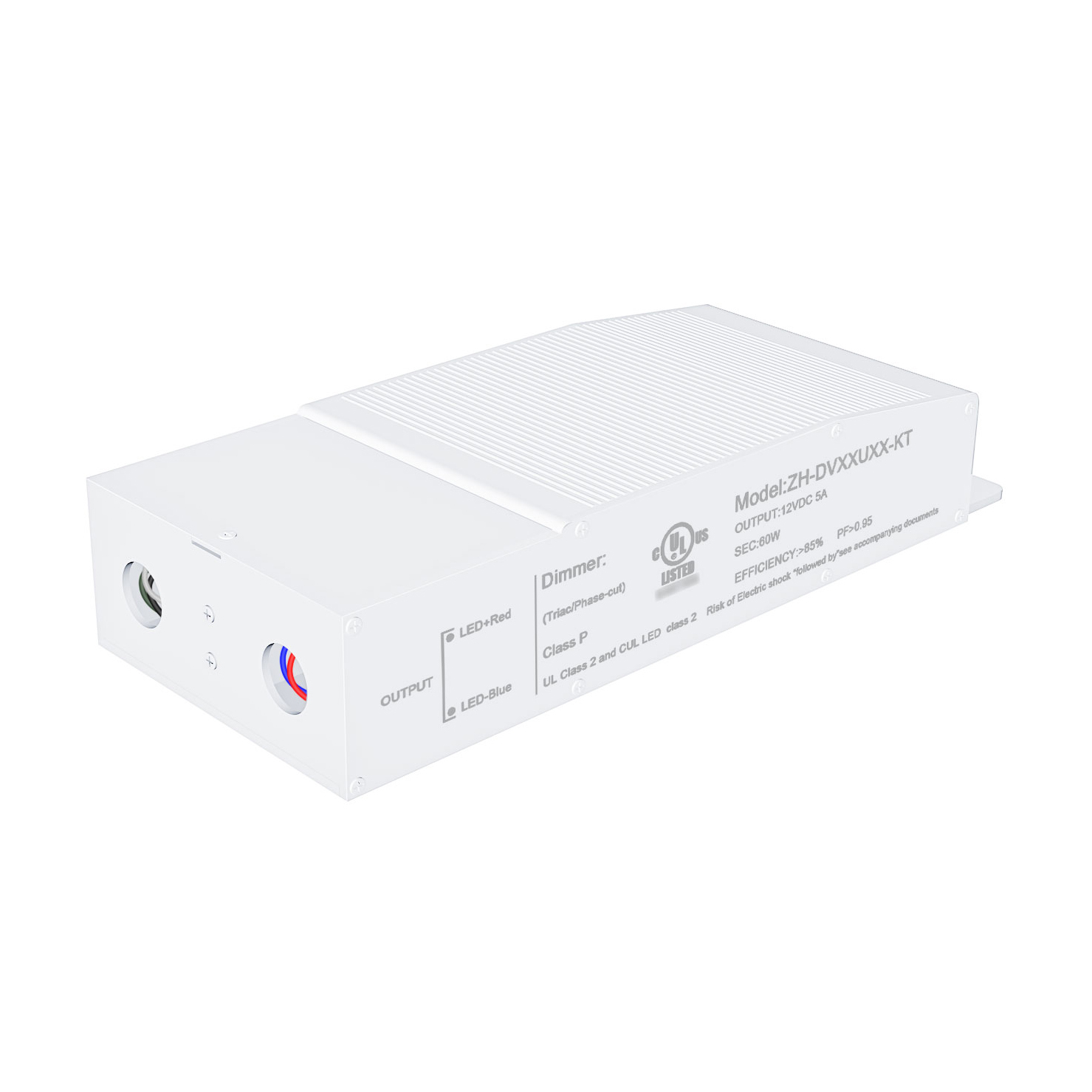

Color: Black or White
Usage: Indoor or Outdoor Lights
Packaging: a. 1pc per inner brown box b. 25pcs per standard carton c. custom is acceptable d. samples is available
Productivity: 20000
Transportation: Ocean,Air,Express,Land,Others
Place of Origin: China
Supply Ability: 500000
Certificate: ISO9001:2015, UL/cUL CLASS 2 Class P...
HS Code: 850440
Port: Shenzhen
Payment Type: T/T,Paypal,Others
Incoterm: FOB,EXW,Express Delivery
