24W Series International Converter AC Plug Power Adapters

Description
Product Attributes
Supply&Others
Packaging & Delivery

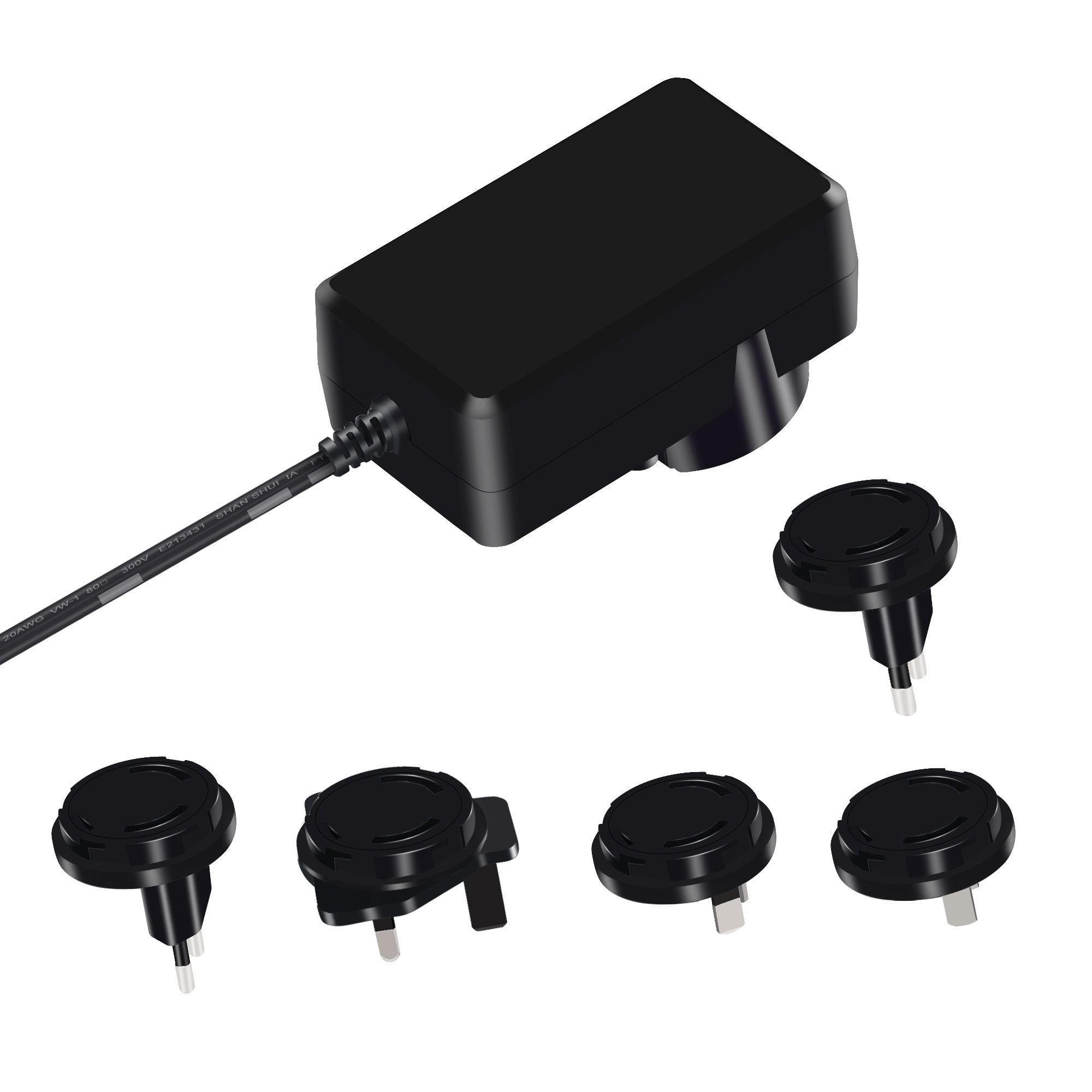

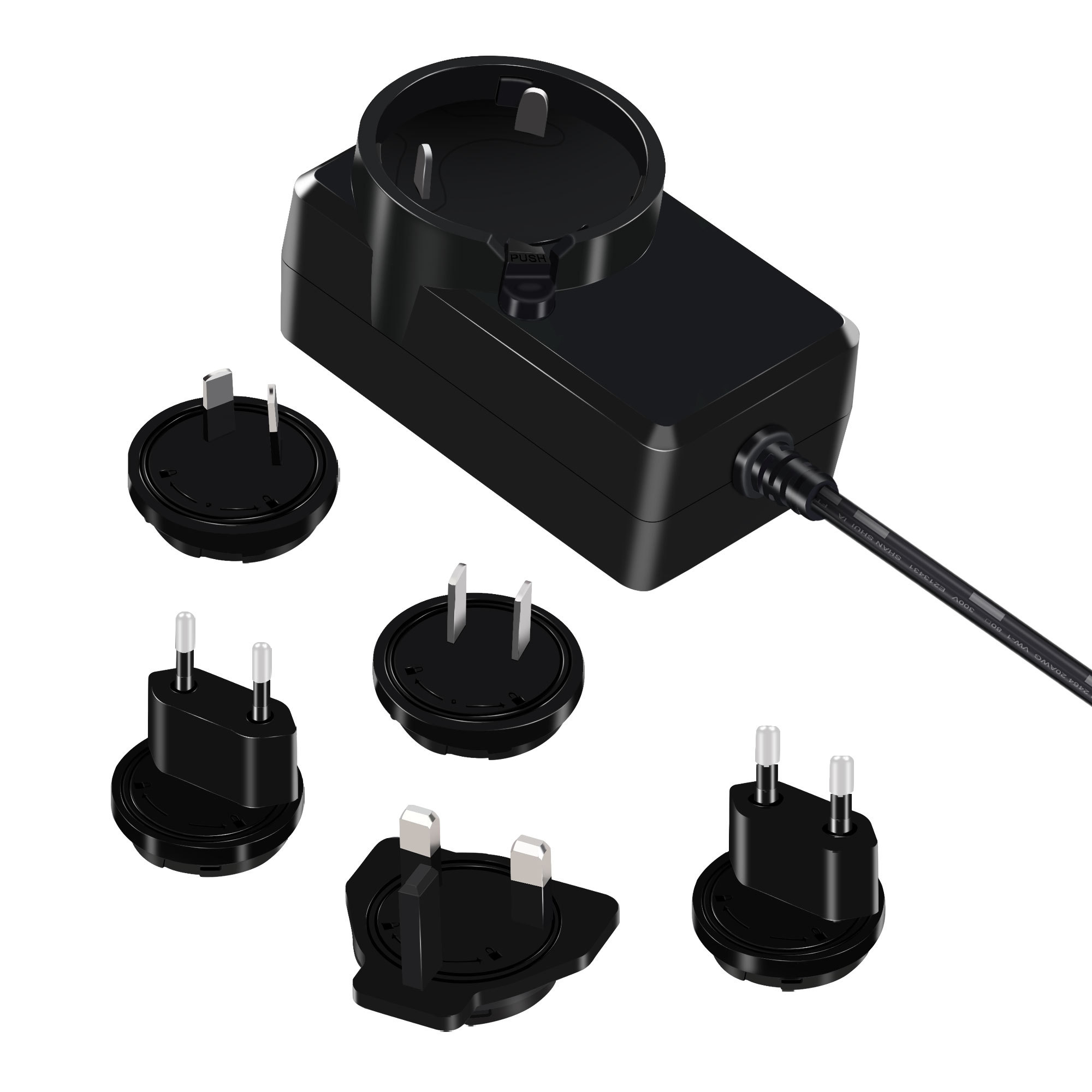

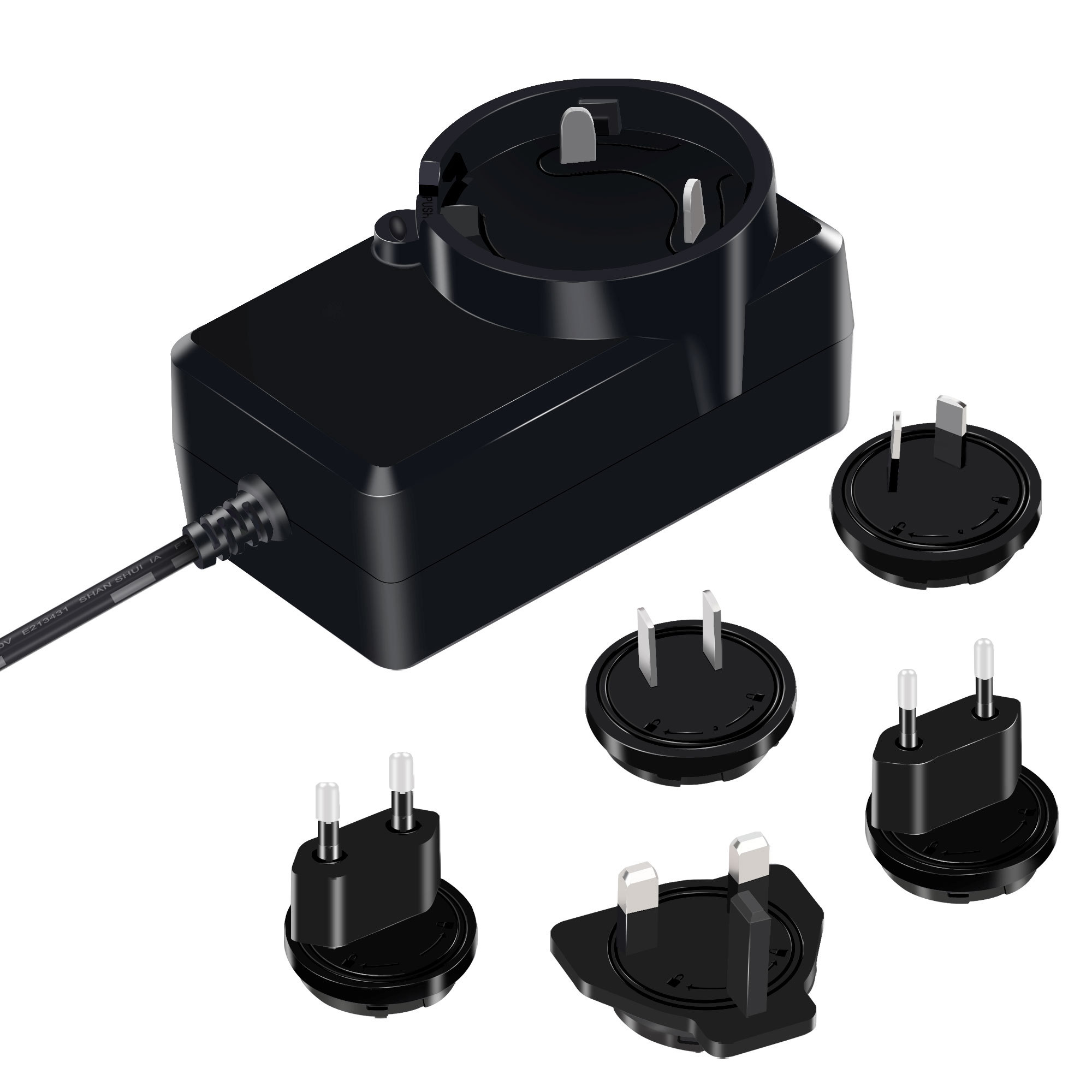

The interchangeable AC plugs power adaptor is a highly reliable, 24W wall-mounted style single-output green adaptor series, which is compact and convenient for carry on. This converter plug Power Adaptors is equipped with interchangeable AC plugs (4 types, including European type, USA type, U.K. type and Australian type) that makes it very suitable for businessmen to use in the major countries around the globe. The Wall plug Power Adaptor is a class II power unit without earth holes, accepting the universal AC input range from 100VAC to 240VAC. The interchangeable power adapter is approved for international global safety standards.

Features

◆ Up to 24W continuous power

◆ Interchangeable AC plugs (plugs kit sold separately)

◆ Global certificates

◆ Universal AC input/ Full range

◆ Level VI energy efficiency

◆ Protections: Short circuit / Over voltage / Over current

◆ Class II power (without earth pin)

◆ Pass LPS (limited power source)

◆ Compact Size, fully enclosed plastic case

◆ 100% full load burn-in test

◆ 3 years Warranty

Specifications

Dimensions LxWxH (in): 2.953 x 1.575 x 1.181
Dimensions LxWxH (mm): 75 x 40 x 30
Color: Black/ White
Input: 100-240V AC±10% 50/60Hz
Output: Constant voltage mode and Single output
Working Environment: -10℃-40℃ 5%-90%RH
Storage Environment: -20℃-85%℃ 5%-95%RH
No load power consumption: below 0.15W
Overshoot: 15% Max. When Power Supply at turn on or turn off
Cooling method: Natural Cooling down
RoHS compliant: Yes
Ripple/Noise:<150mV
Accuracy:±1%

AC Plug Options: for North America(US Blade), Europe(EU Blade), the United Kingdom(UK Blade), Australia(AU Blade) and China(CN Blade)

Safety Standards: UL62368, UL60950, CSA22.2, TUV EN60950, AS/NZS 60950, GB4943, J60950(H22), K60950
Safety Approvals: UL CUL CE KC GS SAA RCM CB FCC RoHS

plug adapters

Mechanical Specification

Package

Package	Piece/Carton(pcs)	Dimension/Carton(mm)	Dimension/Brown Box(mm)	Piece Weight(KG)	Gross Weight/Carton(KG)
OEM package	50	420 x 310 x 290	80 x 57 x 132	0.21	12.5

Model No.: KS39DU-1200200CZ

Brand: KSPOWER

Place Of Origin: China

Output Type: Dc

Connection Method: Plug In

Output Type: Single Output

Color: Black

Type: Oem

Connection: Plug In

Warranty: 3 Years

Material: Pc

Input: 100-240vac 50-60hz

Efficiency: Level Vi

Protections: Ocp Ovp Scp

DC Connector: Male 5.5*2.1mm Or Custom

DC Cord: 1.2m Or Custom

AC Plugs: Us/ Uk/ Au/ Eu/ Kr/ Cn (Optional)

Usage: Laptop LED LCD

Certification: UL CE FCC KC GS PSE

Packaging: a. 1pc per inner brown box b. 50pcs per standard carton c. custom is acceptable d. sample is available

Productivity: 200000

Transportation: Ocean,Air,Express,Land,Others

Place of Origin: China

Supply Ability: 500000

Certificate: ISO9001:2015; UL, CE, RCM, KC, PSE, GS, CB, RoHS...

HS Code: 850440

Port: Shenzhen

Payment Type: T/T,Paypal,Others

Incoterm: FOB,EXW,Express Delivery,DDP,DDU

Selling Units:Piece/Pieces

Package Type:a. 1pc per inner brown box b. 50pcs per standard carton c. custom is acceptable d. sample is available
