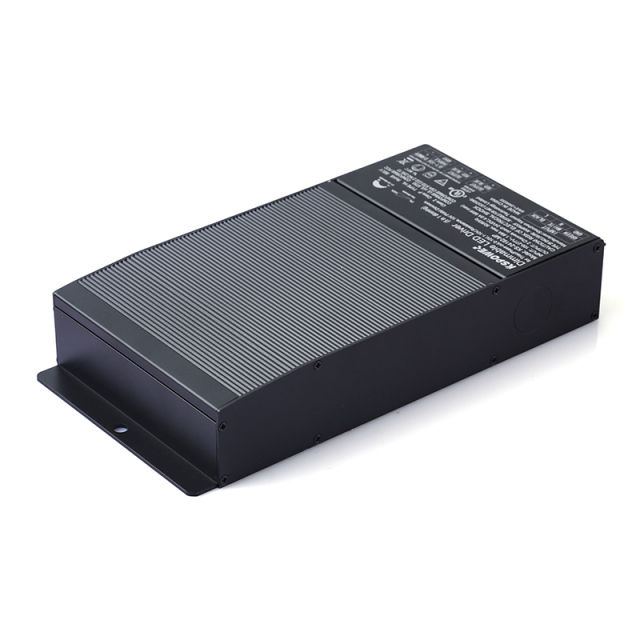

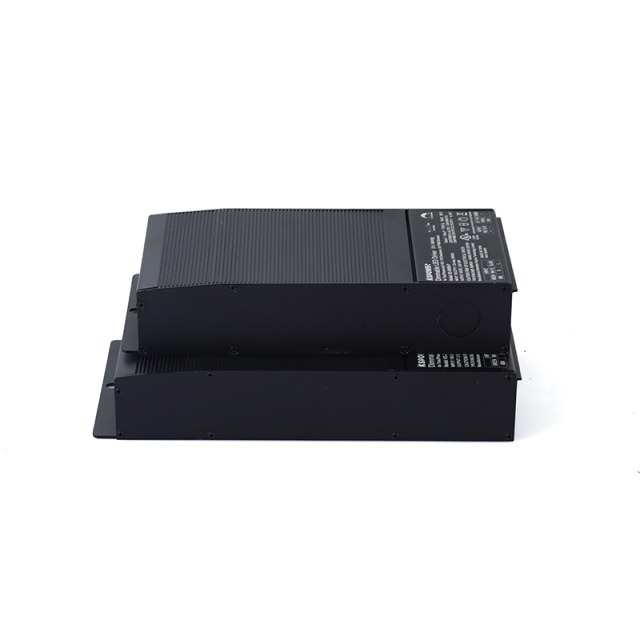

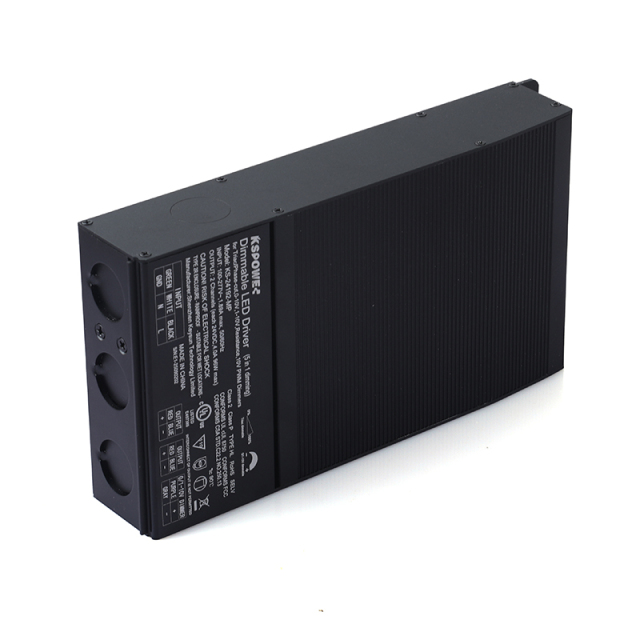

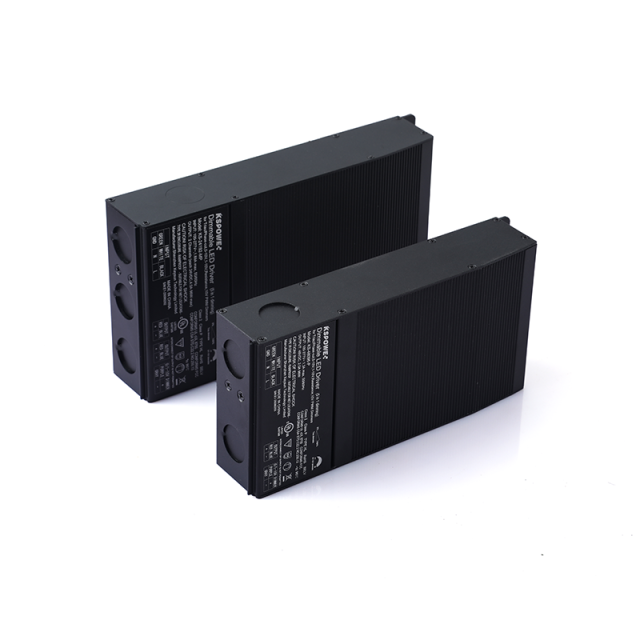

Engineered for high-performance lighting systems, the MP Series 5-in-1 dimmable LED power supply features a universal 100–277VAC input and multiple constant-voltage outputs 12V. This 60W per-channel, 4-way driver provides smooth compatibility with MLV, ELV, and phase-cut dimmers. The patented aluminum housing enhances durability, while NEMA 3R protection ensures reliable operation in outdoor environments. Certified to UL cUL Class 2 and CE, this LED transformer offers superior energy efficiency and long-term reliability backed by a 5-year warranty.
Features:
．PWM or Voltage Reduction output Selectable
．4-Ways Universal Dimming Functions optional:
a. 5 in 1 dimming: TRIAC, ELV, MLV, 0-10V, 1-10V, 10V PWM and potentiometer dimming
b. Triac dimming: TRIAC/phase, ELV, MLV dimming
c. 4 in 1 dimming: 0-10V, 1-10V, 10V PWM and potentiometer
d. Non-dimming
． Super compact Aluminum case
． UL/cUL CE Class 2 CLASS P FCC RoHS LPS
． NEMA 3R rated - Indoor or Outdoor Use
． Switch to color temperature LED Strips 100%-0.01% dimming flicker- free
． Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature protection, over power protection and short circuit protection
|
MODEL |
KS-12240a-M# |
||
|
OUTPUT |
Output Voltage |
12V |
|
|
Rated current x Channel |
5A x 4 |
||
|
Rated power |
240W |
||
|
Ripple & Noise (max.) |
200mVp-p |
||
|
Voltage accuracy |
±2.0% |
||
|
Linear adjustment rate |
±0.5% |
||
|
Load adjustment rate |
±0.5% |
||
|
Start, rise time |
1000ms, 100ms/230VAC, 1100ms, 100ms/115VAC |
||
|
Hold time |
10ms/115VAC, 230VAC |
||
|
INPUT |
Voltage range |
100 ~ 277VAC |
|
|
Frequency range |
47 ~ 63Hz |
||
|
Power factor |
PF≧0 98/115VAC, PF≧0 95/230VAC , PF≧0.9 /277VAC, Full load |
||
|
Total harmonic distortion |
THD< 20% (@ load ≧50%/115VC,230VAC; @ load ≧75%/277VAC) |
||
|
Efficiency |
Vin: 115VAC |
≧90% |
|
|
Vin: 230VAC |
≧91.02% |
||
|
AC current |
3.0A |
||
|
Inrush current |
Cold start 75A(width=350us measured at 50% l peak)/230Vac |
||
|
Leakage current |
< 1 m A |
||
|
No load/ standby power consumption |
< 4W |
||
|
Protection |
Over current |
95 ~ 110% |
|
|
95 ~ 110% Constant current limit, load abnormal condition can be removed after automatic recovery |
|||
|
Short circuit |
Burp mode, load abnormal conditions can be removed after automatic recovery |
||
|
Over voltage |
13 ~ 16 V |
||
|
Turn off the output voltage, restart and resume |
|||
|
Over temperature |
Turn off the output voltage, restart and resume |
||
|
Environment |
Working Temp |
T case=-40 ~ +50℃ |
|
|
Max.Case Temp |
T case=+90℃ |
||
|
Working Humidity |
20 ~ 95% RH, non-condensing |
||
|
Storage Temp.,Humidity |
-40 ~ +90℃, 10 ~ 95% RH |
||
|
Temp.Coefficient |
±0.03%/℃ (0 ~60℃) |
||
|
Vibration |
10~500Hz, 5G 12min./1 cycle, period for 72 min. each along X,Y,Z axes |
||
|
Safety & EMC |
Safety standards:UL8750+UL1310 |
||
|
Withstand voltage:I/P-O/P:1.88KVac |
|||
|
Isolation resistance:I/P-O/P:100MΩ/500VDC/25℃/70%RH |
|||
|
EMC EMISSION:Confirms to FCC |
|||

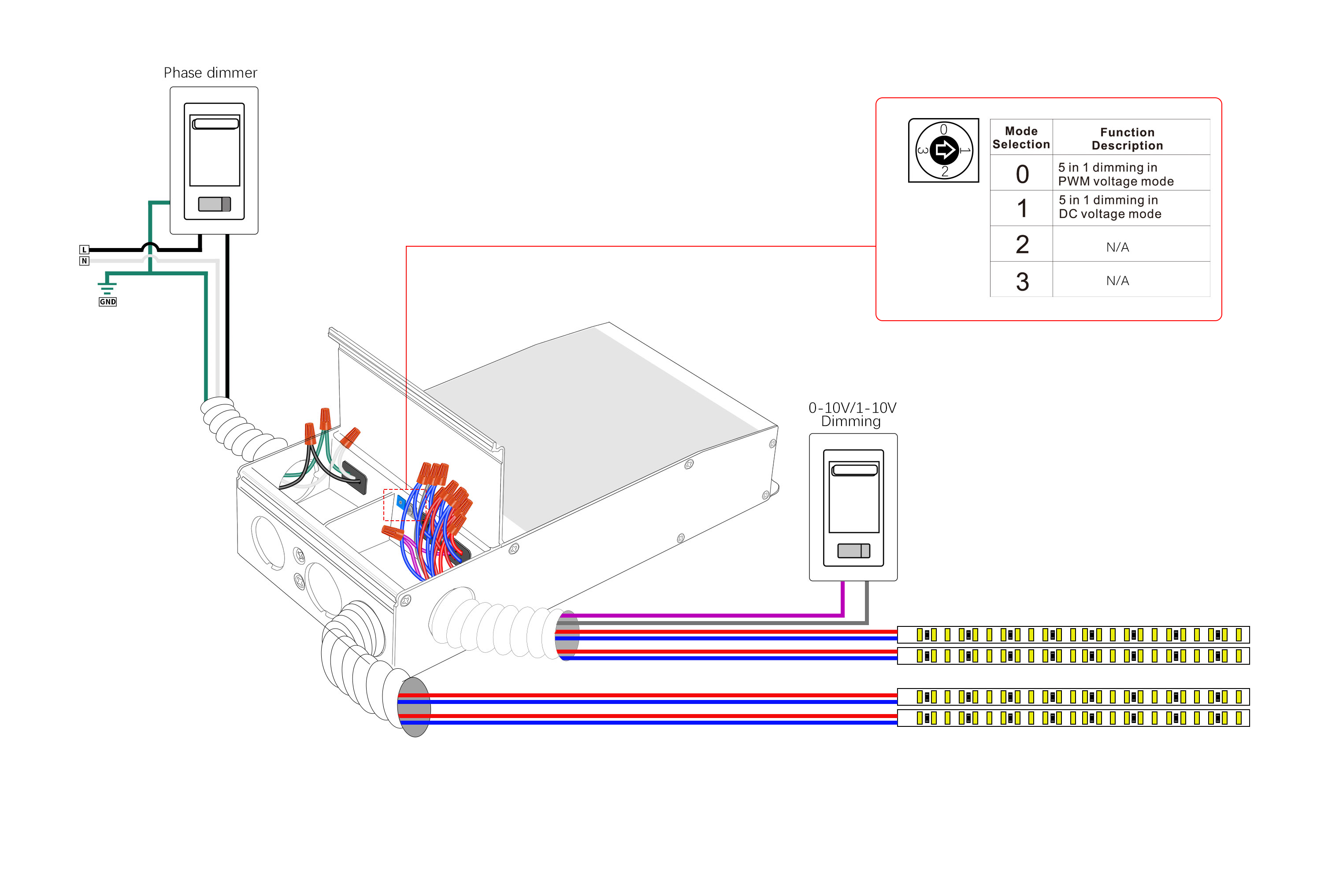

Dimming Connect Drawing (5 in 1 dimming):
Dimension Drawing:
