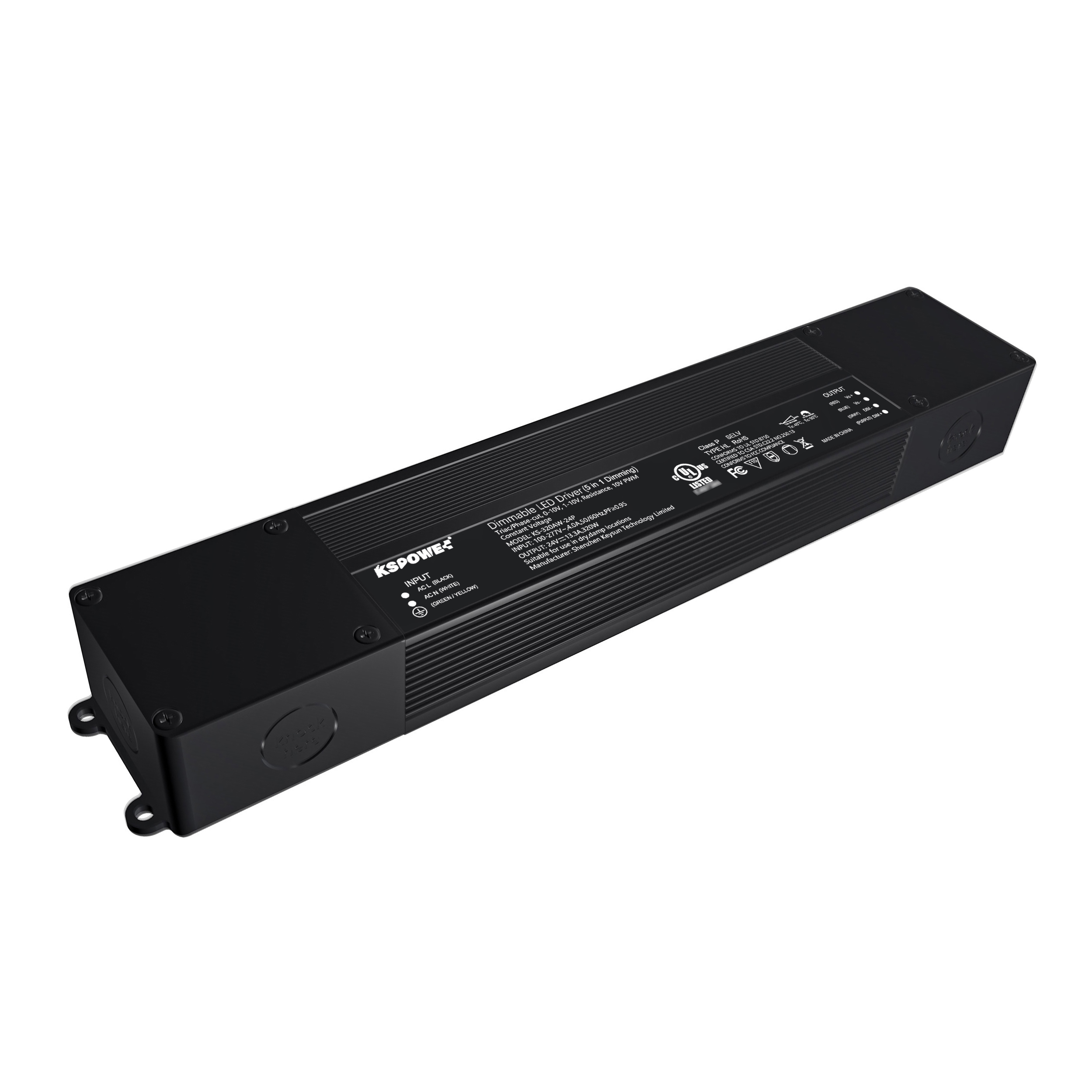

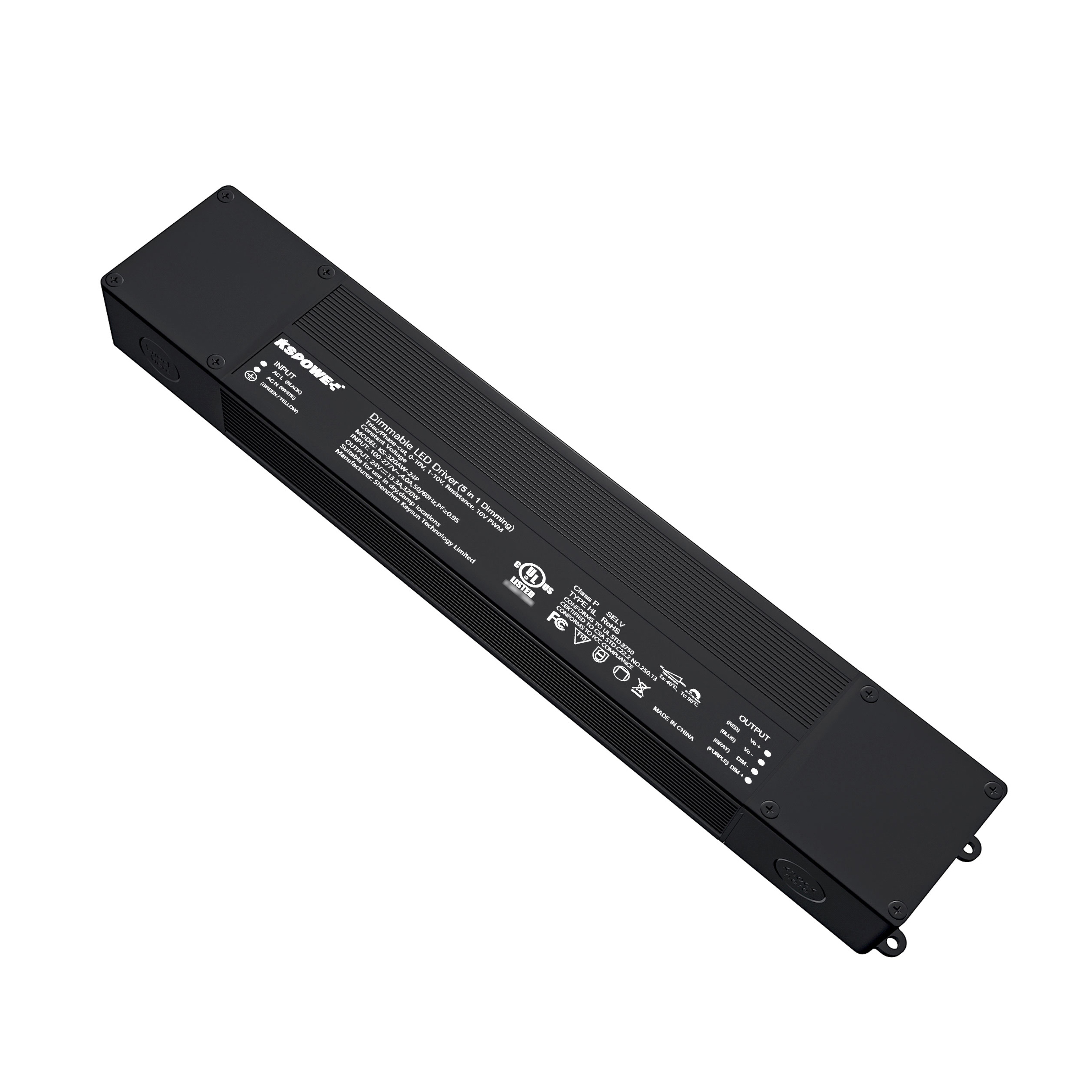

The KSPOWER brand - HT series triac dimmable led driver 100 Watt 24 Volt is one black color, universal AC input voltage range from 100V-277VAC Constant Voltage LED Driver certified to meet UL cUL and CE GS safety approvals. The led dimmable Power Supply use low profile aluminum case with junction box makes led dimmable driver the power solutions for LED strips, LED sign, billboard and landscape lighting. Featuring PFC function of up to 0.95 and higher, IP65 environment Protection Rating for indoor or outdoor use, the H series triac dimmable led power supply provide 5 years warranty and outstanding led dimming peformance.
Features:
． Class 2 Class P Power Units
． Dimmable with any standard MLV/Incandescent TRIAC (Leading edge) dimmer switch
． Super compact Aluminum case
． UL/cUL CE GS FCC RoHS LPS Class 2 Class P
． IP65 - Outdoor Use
． Work in the temperature range of-40℃~+50℃ under natural air cooling and heat dissipation
． Auto-Reset Protection for input/output overvoltage protection, input/output overcurrent protection, over temperature
protection, over power protection and short circuit protection
| Input Voltage | 100~277V AC 47~63Hz | |||
| Power Factor | PF≧0 98/115VAC, PF≧0 95/230VAC, PF≧0.9/277VAC, full load | |||
| Output Voltage | 12VDC | 24VDC | 36VDC | 48VDC |
| Rated Current | 8.3A | 4.0A/4.16A | 2.77A | 2.08A |
| Rated Power | 100W | |||
| Ripple & Noise (max.) | 200mVp-p | 250mVp-p | 250mVp-p | 250mVp-p |
| Dimenion |
322*58*36mm(L*W*H) |
|||
Dimming Connect Drawing:
Dimension Drawing:

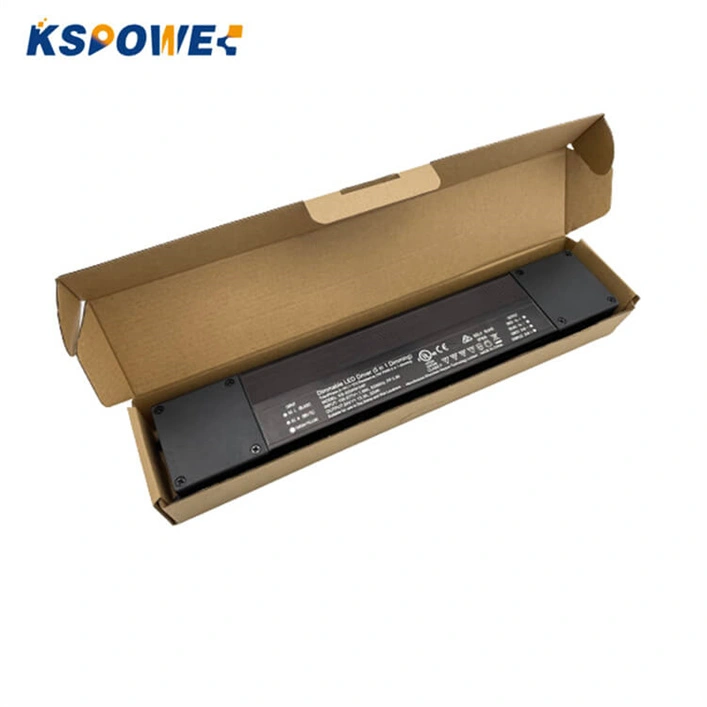

Package
| Package | Piece/Carton(pcs) | Dimension/Carton(mm) | Dimension/Brown Box(mm) | Piece Weight(KG) | Gross Weight/Carton(KG) |
| OEM package | 20 | 360 x 356 x 190 | 339 x 65 x 41 | 0.86 | 18 |
Model No.: KS-100XX-24T
Brand: KSPOWER
Warranty Period (years): 5-Year
Place Of Origin: China
Output Power: 51 - 100w
Output Type: Single
Input Voltage: 110v
Efficiency: 90%
Material: Aluminum Case
Power Factor@Max. Load: >0.95
Color: Black
Input: 100v-277vac
Warranty: 5 Years
Power Supply Mode: Constant Voltage
Certification: Tuv Gs Ul Cul CE...
Protections: Ocp Ovp Scp Lps
Envir. Protection Rating: Indoor Or Outdoor Use
Usage: Street Light, Tunnel Light, Wall Lamp,Spot Light
Output Type: Pwm
Dimensions LxWxH (mm): 322*58*36mm
Packaging: a. 1pc per inner brown box b. 20pcs per standard carton c. custom is acceptable d. sample is available
Productivity: 300000 pcs/month
Transportation: Ocean,Air,Express,Land,Others
Place of Origin: China
Supply Ability: 300000 pcs/month
Certificate: ISO9001:2015, UL/cUL CE GS FCC RoHS Listed
HS Code: 850440
Port: Shenzhen
Payment Type: T/T,Paypal,Others
Incoterm: FOB,EXW,Express Delivery
